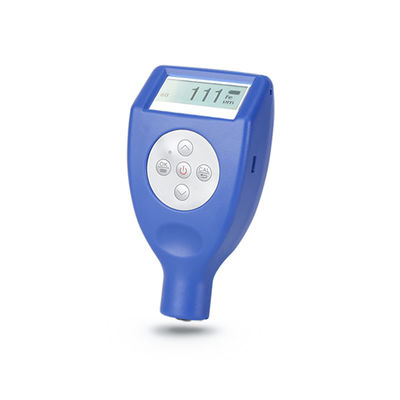

LED White Light 3nh Colorimeter YT4200-P5 NFE Based Probe Coating Thickness Meter
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | 3nh |
| Certification | CE, TUV, FCC, ISO9001, RohS |
| Model Number | YT4200-P5 |
| Minimum Order Quantity | 1 Unit |
| Price | 600 |
| Packaging Details | 46*25*38cm, 4.5kg, Alluminum Box |
| Delivery Time | 1-3 work days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 1000 Units per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Aperture | Φ4mm & 8mm | Repeatability | Within ΔE*ab 0.03 |
|---|---|---|---|
| Illuminating/Viewing Geometry | 8° / D | Measuring Range | L: 0 To 100 |
| Illuminant Device | LED White Light | Storage | 100 Pcs Standard Samples; 10000 Pcs Test Samples |
| Color Difference Formula | ΔE*ab; ΔL*ab; ΔE*C*H | Measuring Conditions | CIE 10° Standard Observer |
| High Light | portable spectrophotometer colorimeter,digital color meter |
||
Product Description
NFE based probe detects the thickness of all insulation coating sprayed on non-magnetic metal substrate (such as aluminum, copper, brass, stainless steel, etc.), such as paint layer, powder spraying layer, porcelain coating, etc.
| Model | YT4200-P5 |
| What's in the Box? | |
| Typical Users include | Vehicle Appraisers & Buyers, Panel Beaters / Motor Body Repairers, Painting Contractors, Galvanizers,Anodisers, Powder Coaters, Metal Fabricators,Chromers, Motor Vehicle Manufacturers, Vehicle Detailers, Zinc Platers etc |
| Non Ferrous Metal Mode (NFe) (Typical Applications) |
Technology - Eddy Current - (enables measurement of non-conductive coatings on non-ferrous substrates such as Aluminium, Copper, Brass, Zinc, Tin, and Non-Magnetic Stainless Steel). Example coatings:- Paint,Enamel, Rubber, Paint, Varnish, Powder Coating,Anodizing, Plastic etc. |
| Measuring Range | 0-1250µm (0-1.25mm) or 0-50mil |
| Resolution | 0.1µm (0-99.9 µm) and 1µm (over 100 µm) |
| Accuracy | ±1-3% (±2.5µm or 0.1mil - whichever the greater) |
| Power Supply | 2 x 1.5V AA Batteries |
| Minimum Measurement Area | 5mm |
| Minimum Sample Thickness | 0.3mm |
| Operating Conditions | Temp: 0 - 50ºC and Humidity: < 80% |
| Weight | 99g ( including batteries) |
| Dimensions | 102 x 66 x 24mm |
| Meets Standards Including | ISO-2178, ISO-2360, DIN, ASTM & BS |
| (suitable for laboratory and harsh field conditions) | |
| Units of Measurement (Microns & Mils) |
Metric Measurement:- Micrometre (µm) – also known as Micron 1 µm = 1/1000mm Imperial Measurement:- Mil – also known as Thou 1 Mil = 1/1000 Inch Conversion:- 1 Mil / Thou = 25.4 Microns / Micrometre (µm) |
| Additional Functionality | Gauge auto adjusts between Ferrous (Steel) and Non-Ferrous (Aluminium etc) Modes, Low Battery Indicator, Metric (Microns µm) or Imperial (Mils) measurement settings, Auto Power Off, Easy Reset to Factory Settings. |
