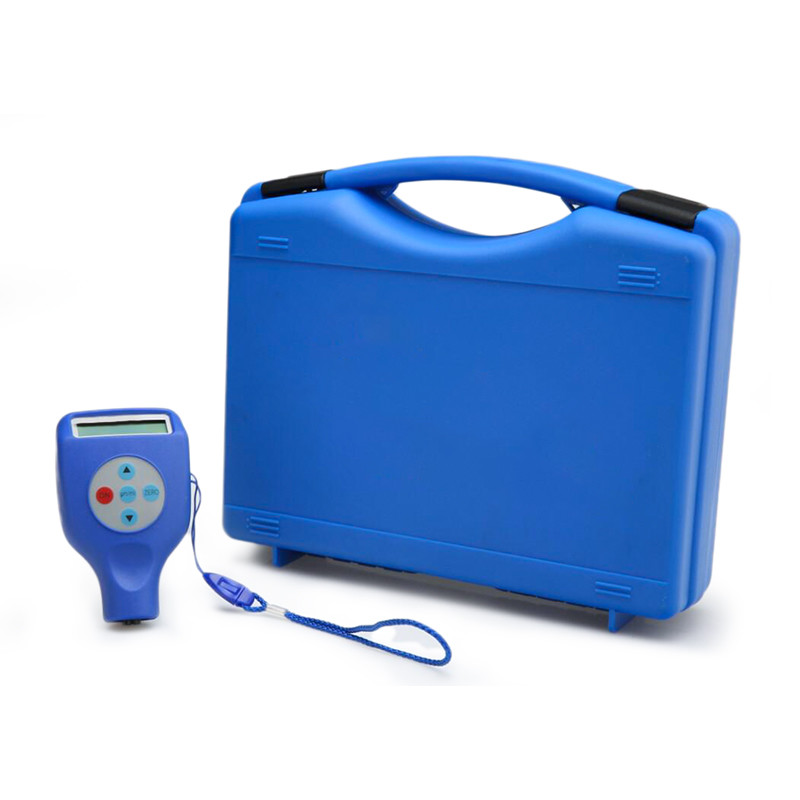

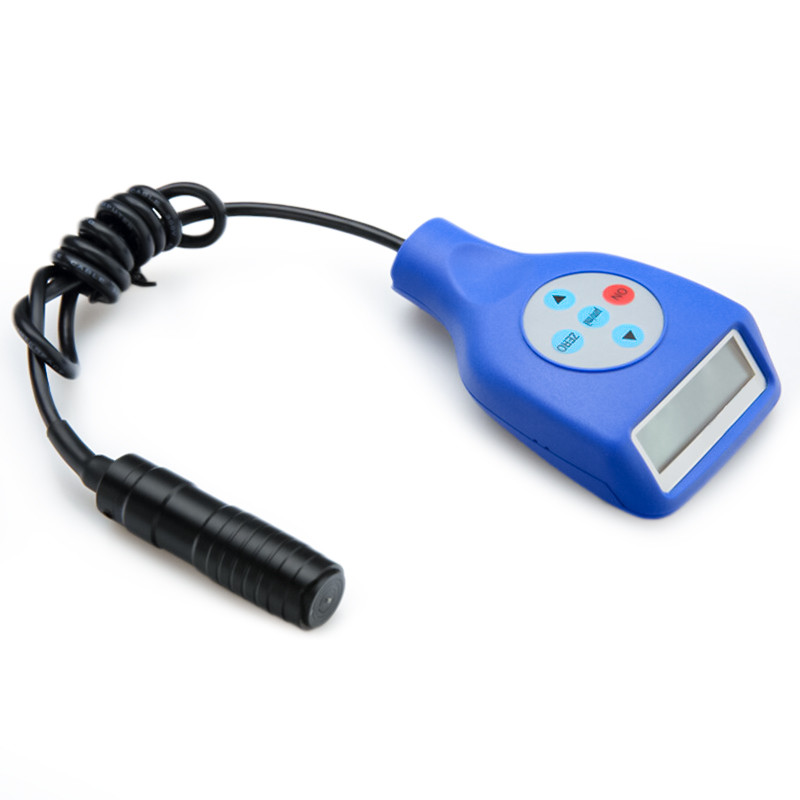

Non Ferrous Substrate Thickness Meter Separated Aluminum Base Coating 3nh YT4200-P7

  • Non Ferrous Substrate Thickness Meter Separated Aluminum Base Coating 3nh YT4200-P7
  • Non Ferrous Substrate Thickness Meter Separated Aluminum Base Coating 3nh YT4200-P7
Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number YT4200-P7
Minimum Order Quantity 1 Unit
Price 600
Packaging Details 28X24X10 cm, 1.5kg, carton box
Delivery Time 1-3 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model YT4200-P7 Measuring Range 0-1250µm (0-1.25mm) Or 0-50mil
Resolution 0.1µm (0-99.9 µm) And 1µm (over 100 µm) Accuracy ±1-3% (±2.5µm Or 0.1mil - Whichever The Greater)
Minimum Measurement Area 5mm Minimum Sample Thickness 0.3mm
Meets Standards Including ISO-2178, ISO-2360, DIN, ASTM & BS Dimensions 102 X 66 X 24mm
High Light

portable spectrophotometer colorimeter

,

digital color meter
Leave a Message
Product Description
Product Description







YT4200 is a domestic coating thickness gauge manufactured by 3nh company. It can detect the thickness of various non-magnetic coatings on the magnetic metal substrate quickly and accurately. The instrument fully conforms to the magnetic test principle specified in ISO 2178, GB / T 4956, ASTM b499 and other standards. The instrument is stable, accurate and powerful. It is widely used in the manufacturing industry, metal processing industry, chemical industry and other surface engineering detection fields. It is the basic equipment of coating surface treatment industry.

NFE based probe detects the thickness of all insulation coating sprayed on non-magnetic metal substrate (such as aluminum, copper, brass, stainless steel, etc.), such as paint layer, powder spraying layer, porcelain coating,
Specification
Model
YT4200-P7
What's in the Box?
YT4200-P7 Gauge (Ready to Use), 1 x Calibration Checkpieces (Aluminium and Steel) &
5 x Thickness Check Foils
Typical Users include
Vehicle Appraisers & Buyers, Panel Beaters / Motor Body Repairers, Painting Contractors, Galvanizers,Anodisers, Powder Coaters,
Metal Fabricators,Chromers, Motor Vehicle Manufacturers, Vehicle Detailers, Zinc Platers etc
Non Ferrous Metal Mode (NFe)
(Typical Applications)
Technology - Eddy Current - (enables measurement of non-conductive coatings on non-ferrous substrates such as Aluminium, Copper,
Brass, Zinc, Tin, and Non-Magnetic Stainless Steel). Example coatings:- Paint,Enamel, Rubber, Paint, Varnish, Powder
Coating,Anodizing, Plastic etc.
Measuring Range
0-1250µm (0-1.25mm) or 0-50mil
Resolution
0.1µm (0-99.9 µm) and 1µm (over 100 µm)
Accuracy
±1-3% (±2.5µm or 0.1mil - whichever the greater)
Power Supply
2 x 1.5V AA Batteries
Minimum Measurement Area
5mm
Minimum Sample Thickness
0.3mm
Operating Conditions
Temp: 0 - 50ºC and Humidity: < 80%
Weight
99g ( including batteries)
Dimensions
102 x 66 x 24mm
Meets Standards Including
ISO-2178, ISO-2360, DIN, ASTM & BS

(suitable for laboratory and harsh field conditions)
Units of Measurement
(Microns & Mils)
Metric Measurement:-
Micrometre (µm) – also known as Micron 1 µm = 1/1000mm
Imperial Measurement:-
Mil – also known as Thou 1 Mil = 1/1000 Inch
Conversion:-
1 Mil / Thou = 25.4 Microns / Micrometre (µm)
Additional Functionality
Gauge auto adjusts between Ferrous (Steel) and Non-Ferrous (Aluminium etc) Modes, Low Battery Indicator, Metric (Microns µm) or
Imperial (Mils)
measurement settings, Auto Power Off, Easy Reset to Factory Settings.
Additional Functionality
Gauge auto adjusts between Ferrous (Steel) and Non-Ferrous (Aluminium etc) Modes, Low Battery Indicator, Metric (Microns µm) or
Imperial (Mils)
measurement settings, Auto Power Off, Easy Reset to Factory Settings.
