Powder Coating Multi Angle Gloss Meter 60 Degree NHG60 To Replace BYK 4561
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Angle | 60° | Measuring Area(mm) | 60°:9x15 |
|---|---|---|---|
| Measuring Range(GU) | 60°:0~1000 | Division Value | 0.1GU |
| Tolerance | ±1.2, ±1.2% | Data Port | USB |
| High Light | paint gloss meter,60 degree gloss meter |
||
Product Description
1. Product Profile

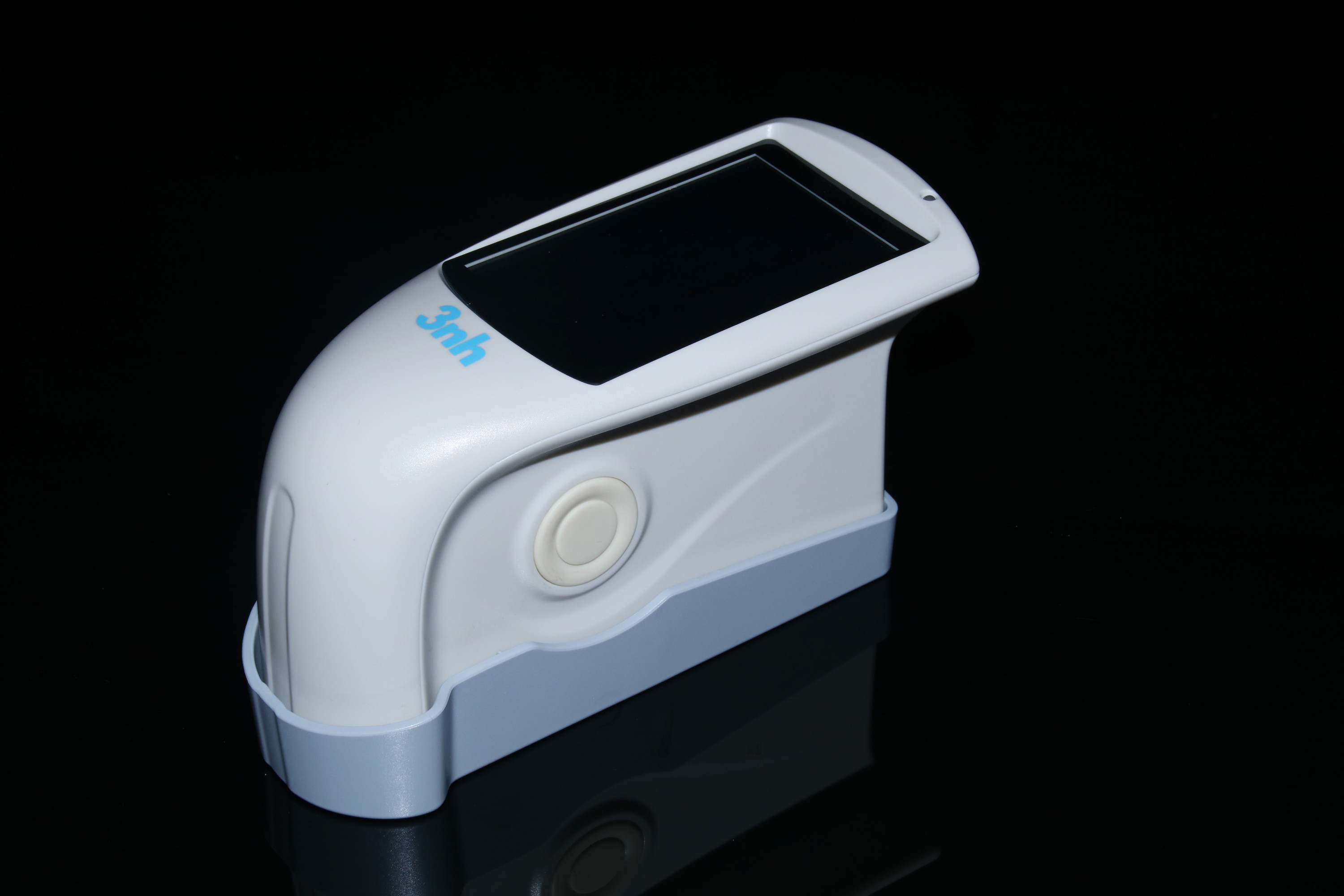

NHG60 gloss meter is a high-end precise 60 degree single-angle smart gloss meter for surface glossiness measurement and management, which can be widely applied in all kinds of industries, such as plastics, metals, paint and coating, furniture, wood, ink, printing and packaging, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.
In one word, NHG60 single-angle gloss meter can be perfectly applied in any place that requires gloss measurement and control.
2. Detailed Technical Parameter / Specification Form
| Technical Parameter Items | NHG60 Precise Single-angle Smart Gloss Meter |
| Product Category | Optical Electronic Gloss Measurement Instrument |
| Product Name | Gloss Meter, Glossmeter |
| Application | For the measurement of the surface glossiness of those products like plastics, metals, textiles, papers, wood, tiles, etc. |
| Optical Angles | One Angle: 60° |
| Measurement Area | 60°: 9×15mm |
| Measurement Range | 60°: 0~1000GU |
| Division Value | 0.1GU |
|
Measurement Range Repeatability Reproducibility |
0~10GU 10~100GU 100~1000GU ±0.1GU ±0.2GU ±0.2% ±0.2GU ±0.5GU ±0.5% |
| Measurement Standard | Conform with JJG696 first class glossmeter working requirements |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Inter-instrument Error | ±1.2, ±1.2% |
| Measuring Time | 0.1s |
| Display Screen | 3.5" TFT Capacitance Screen-touch Display |
| Operation | by Screen-touch |
| Measurement Modes | Three Measurement Modes: Basic Mode, Statistical Mode, Continuous Mode |
| Data Storage Capacity |
Basic Mode: 1000pcs. Statistical Mode: 5000pcs. Continuous Mode: 5000pcs. |
| PC Software | GQC6 (for free) |
| Data Transferring Port | USB |
| Language Built-in | English, Chinese. |
| Power Supply |
Built-in Rechargeable Battery (more than 10000 times of measurements in 8 hours), Power Adapter |
| Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
| Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |
| Standard Accessories | Calibration Board, Power Adapter, USB Cable, PC Software GQC6, User Guide. |
| Optional Accessories | Mini Thermal Printer |
| Weight | 350g |
| Dimension | 160*75*90mm |
3. Detailed Introduction to Instrument

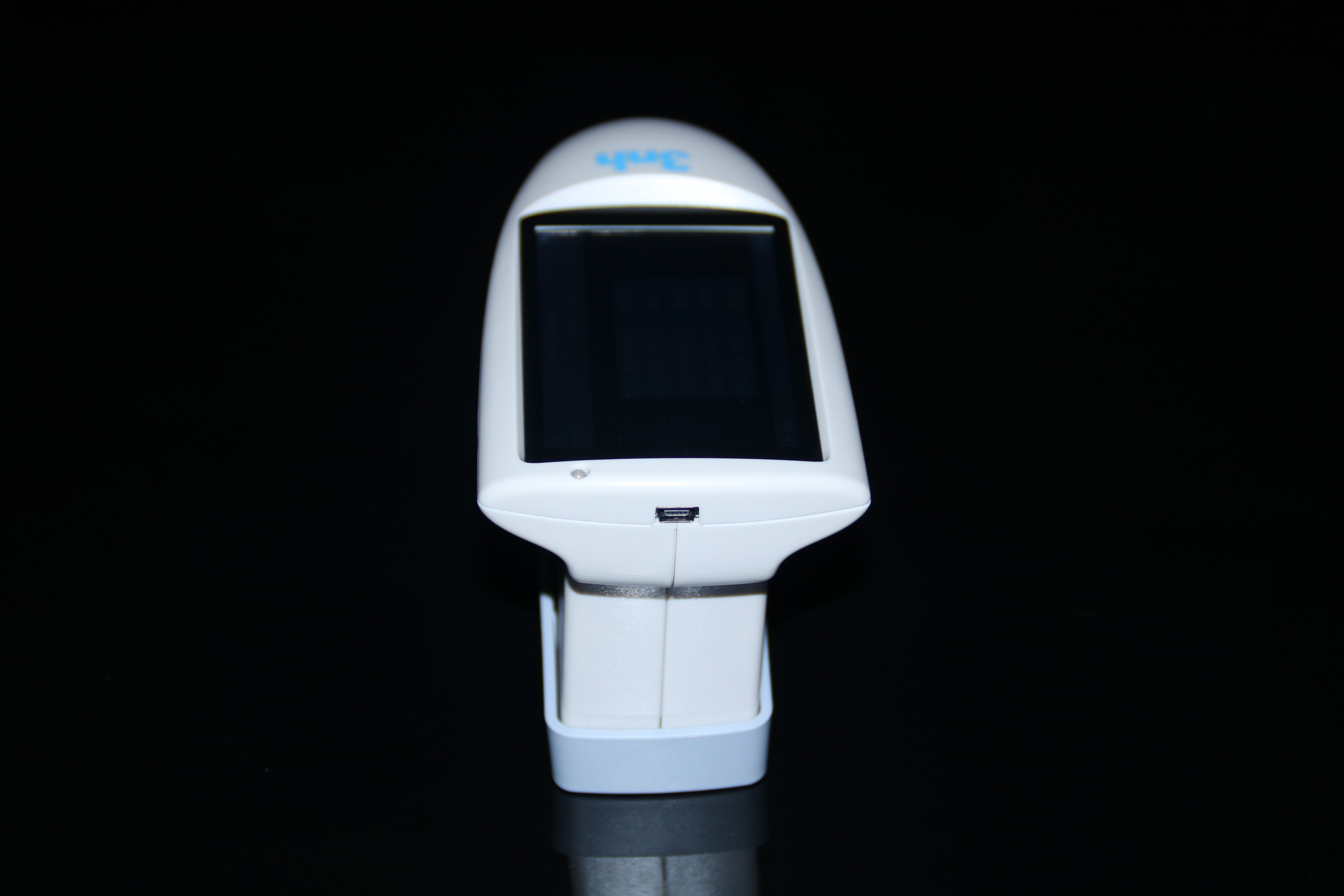

3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing 5 rows of data in one screen, convenient for comparison.
3.2. Big screen-touch display, makes your operation more convenient and freer.
3.3. The most universal degree for glossiness, 60-degree gloss measurement.
3.4. Large measurement range from 0GU to 1000GU, can measure the glossiness of any targets from matt to very high gloss.
3.5. Three measurement modes: Basic Measurement Mode, Statistical Measurement Mode, Continuous Measurement Mode. Perfectly suitable for different working situations.
3.6. Screen-touch operation, very easy to calibrate and do other system settings.
3.7. Configured with a PC terminal software GQC6, more extended powerful functions for color data management can definitely facilitate your gloss measurement work.
4. Company Profile
NHG60 was developed and manufactured independently by Shenzhen 3nh/ThreeNH Technology Co., LTD. which is a national high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998.
We warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.
5. Frequently Asked Questions
1. Can the NHG60 gloss meter be equivalent to any models of world famous brand?
Answer: Yes, our NHG60 is equivalent to BYK4561 of BYK.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
