4 Light Sources Colour Assessment Cabinet Light Booth With D65 Light Bulbs
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | T60(4) | Size | 710x405x570mm |
---|---|---|---|
Light Sources | D65,TL84,F,UV | Standard | ASTM D1729, ISO3664, DIN, ANSI And BSI |
Color | International Grey | OEM | Yes |
High Light | color checking light box,color matching booth |

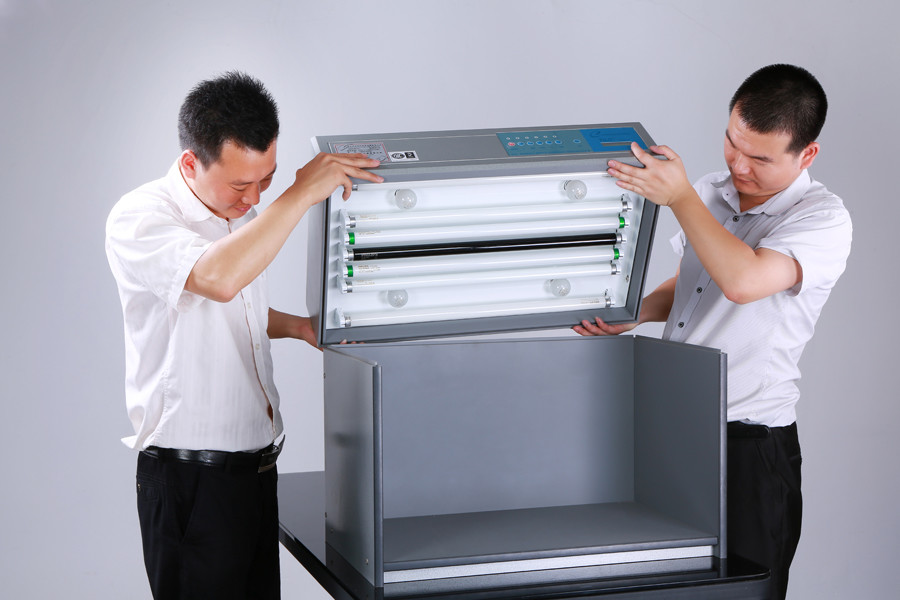

Tilo color light booth for color matching with d65 light bulbs T60(4) )
Brand: TILO
Made in China
T60(4) color light booth can accommodate up to 4 light sources.The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
T60(4) color light booth Application:
Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth / Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.
The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform testing color difference as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
T60(4) color light booth Features:
Ø TILO Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 4 different light sources(D65, TL84, F, UV), which can detect the metamerism.
Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The dimension can be made by customized.
Order Number | Configured light sources | Weight | Dimensions(mm) |
T60(4) Color light box | D65,TL84,F,UV | 30Kg | 710*405*570 |
About Light Sources:
Light Source | Color viewing booths application | Color temperature(k) | Power(W) |
D65 | International standard Artificial Daylight | 6500 | 18 |
TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 |
CWF | (Cool White Fluorescent)American Standard | 4150 | 18 |
F/A | "Sun-setting Light Yellow" incandescent light source(imitation of sunset) | 2700 | 40 |
UV | Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wavelength:365nm | 20 |
U30 | Warm White Fluorescent, American Standard | 3000 | 18 |
2015 33rd International Famous Furniture Fair(Dongguan)
2015 China Int'l Exhibition For Ceramics
2015 ChinaPlas Exhibition in Guangzhou Pazhou
All our products have one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
