Plastic PVC Tools Colour Measurement Spectrophotometer Textile Color Reader TS7600

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number TS7600
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time 2 work days
Payment Terms T/T,Paypal
Supply Ability 1000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model TS7600 Specular Component SCI&SCE
Integrating Sphere Size 40mm Spectrophotometric Mode Flat Grating
Wavelength Range 400-700nm Observer Angle 2°/10°
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter), Dimension L*W*H=129X76X217mm
High Light

hunter lab spectrophotometer

,

color measurement instruments

Leave a Message
Product Description

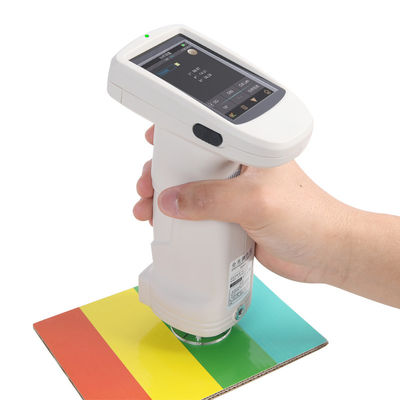

Plastic PVC Tools Textile Color Reader Pantone Color Spectrophotometer TS7600



Introduction:



Ts7x series is a grating spectrophotometer that 3nh company has spent 3 years to design and is developed by 3nh independent intellectual property rights. The instrument adopts 1000 line precision blazed grating as the spectroscopic element, the silicon photocell array with large photosensitive area as the detector, the full spectrum led with high life as the light source, and the optical resolution is less than 10nm in the visible light range.



Under the condition of d/8 geometric optical illumination recommended by CIE, TS7700 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer TS7700, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system.



Spectrophotometer TS7700 is also widely used in the color quality control of various products. TS7700 is equipped with high-end color management software, which is connected to the computer to realize more function expansion. The instrument has stable performance, accurate color measurement and powerful function. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, medical treatment, cosmetics and food industries, as well as scientific research institutions and laboratories etc.



Features:



1. D / 8 geometric optical structure, conforming to CIE No.15, GB / T 3978, GB 2893, GB / T 18833, iso7724 / 1, ASTM e1164, din5033 teil7;

2. Adopt combined LED light source with high life and low power consumption, including UV / excluding UV;

3. Switch 8mm & 4mm aperture( the flat/ tip measuring aperture can be switched easily, which is suitable for more tested sample)

4. Dual optical path system, the optical resolution in the visible range is less than 10nm, which can measure the SCI and SCE spectrum of the sample at the same time;

5. Accurate spectrum and lab data, used for color matching and accurate color transmission;

6. High hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, 1000 line blazed grating, silicon photocell array detector with large photosensitive area, etc;

7. USB / Bluetooth dual communication mode, wider adaptability;

8. Super dirt resistant and stable standard white calibration board;

9. Large capacity storage space, which can store more than 30000 pieces of test data

10.2/10 standard observer's angle, multiple light source modes, multiple surface color systems, meet various standards of chromaticity indicators, and the needs of various customers for color measurement;

11. Camera locating position and Stabilizer cross measurement position;

12. PC software has powerful function expansion;





Specification:



Model TS7600
Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
  SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source
  Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Customized one aperture, It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Sensor Silicon photodiode array (double row 40 groups)
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture Customized one aperture: MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component SCI&SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
  YI(ASTM D1925,ASTM 313),
  Staining Fastness, Color Fastness, Color Strength, Opacity,
  8° Glossiness,
Observer Angle 2°/10°
Illuminant D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)
  Chromaticity value: MAV/SCI, within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating,stabilizer cross position
Dimension L*W*H=129X76X217mm
Weight Approx 600g
Battery Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Displayed Data 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB
Data Storage Standard 1000 Pcs, Sample 20000 Pcs
Language Simplified Chinese, English, traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, One aperture (8mm or 4mm)
Optional Accessory Micro Printer, Powder Test Box
Notes The specifications are subject to change without notice.

Plastic PVC Tools Colour Measurement Spectrophotometer Textile Color Reader TS7600 0Plastic PVC Tools Colour Measurement Spectrophotometer Textile Color Reader TS7600 1



Company Information:

Plastic PVC Tools Colour Measurement Spectrophotometer Textile Color Reader TS7600 2

FAQ:

1. Which models are the equivalent models to TS7700?
Answer: MINOLTA CM-700d, CM-600d are the equivalent models to 3nh TS7700.
2. Is 3nh a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters.
3. Where is your main market.
Answer: We sell to the global market.

4. Is the package strong enough to make the instrument shipped safely to customers?

Answer: Yes, of course. The instrument is packed in a firm alluminum box filled with foam.

5. Can you support OEM service?

Answer: Yes, we support OEM and ODM service.

6. How long is the warranty?

Answer: We support 1 year warranty and life-span maintenance.

7. When can you ship the goods after payment?

Answer: We have all goods in stock, and general we ship the goods within 2 working days after payment.

8. What are your main products?

Answer: We mainly produce colorimeter, spectrophotometer, gloss meter, and color light box, and iso test chart.
