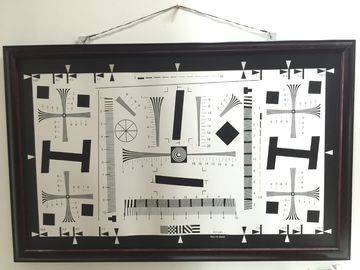

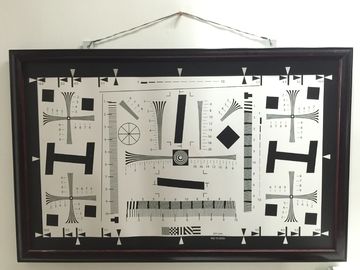

2x Iso 12233 Camera Resolution Test Chart MTF Target TV Line Type For 4K Camera
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ISO12233: 2000 | Category | Reflective |
|---|---|---|---|
| Brand | 3nh/Sineimage | Size | 0.5x/1x/2x/4x/8x/Customisable |
| High Light | camera resolution chart,camera lens test chart |
||
Product Description
ISO12233 Test Chart
South Korea iso 12233 test chart 8X for 20 Million Pixel Camera
3nh provides one-stop service on enhanced ISO 12233 resolution test chart (0.5x, 1x, 2x, 4x, 8x), test light source and test software.
Specification Active Area Material
1 X - 20 cm x 35.6 cm Photographic Paper
2 X - 40 cm x 71.1 cm Photographic Paper
4 X - 80 cm x 142.2 cm Photographic Paper
8 X - 160 cm x 284.4 cm Photographic Paper
0.5X - 10cm x 17.8 cm Photographic Paper
Resolution test chart is the standard proof which can provide aided testing for vertical resolution and horizontal resolution of actual shooting.
We also make Standard ISO 12233 Resolution Test Chart (0.5x, 1x, 4x, 8x) 2000 lines.
ISO 12233 RESOLUTION TEST CHART
0.5X (10x17.8 cm), semimatt (normative contrast), image on photographic paper
Product No: NQ-10-50A
1X (20x35.6 cm), semimatt (normative contrast), image on photographic paper
Product No: NQ-10-100A
2X (40x71.1 cm), semimatt (normative contrast), image on photographic paper
Product No: NQ-10-200A
4X (80x142.2 cm), semimatt (normative contrast), image on photographic paper
Product No: NQ-10-400A
8X (160x284.4 cm), semimatt (normative contrast), image on photographic paper
Product No: NQ-10-800A
For those reflectance test charts, we all have the same transmission test charts for DNP transmission light box or our 3nh brand CC5100/3100.
Application:
Resolution test chart is the standard proof which can provide aided testing for vertical resolution and horizontal resolution of actual shooting.
Resolution test uses ISO 12233 resolution test chart and adopts unified shooting angle and environment.
The calculation of resolution test uses HYRes software, and the calculation will be done in two parts: vertical resolution and horizontal resolution.
Digital camera assessment is different from other products. It’s unlike laptop and DIY which have a lot of software to test objective data and everything can be seen from the data. However, assessing the quality of digital camera not only needs certain objective data, but also needs to combine actual operation and the shooting proofs. Therefore, our assessment is based on the principle of objective data and combined rational analysis from the experienced reviewers to obtain the most objective assessment results.
Remark: We support Any customized test charts only if you have high resolution image and size.
