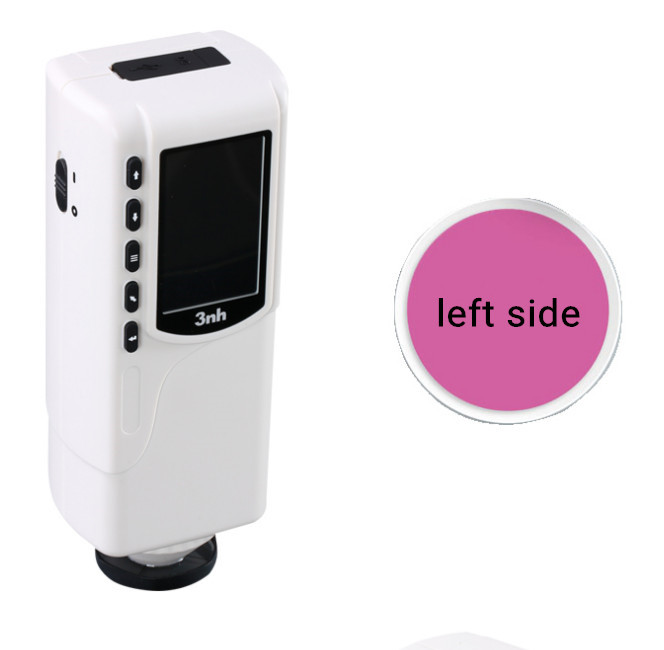

8mm Apertrue Plastic Ceramic Paint Portable Chroma Meter

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE,RoHs,ISO,etc
Model Number NR145
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time 2 works days
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model SCE Sensor Silicon Photoelectric Diode
Measuring Aperture 8mm Color Space CIE L*a*b*c*h,CIEL*a*b, CIEXYZ
Calibration Manual Locating Cross-Locating Illumination Locating
High Light

Ceramic Paint Portable Chroma Meter

,

8mm Apertrue Portable Chroma Meter

,

Plastic Paint Color Analyzer

Leave a Message
Product Description

Plastic Ceramic Paint Universal Industry Used Chroma Meter 8mm Apertrue with Free Software



3nh cheap colorimeter price with 45/0 Geometry NR145

3nh R&D team concentrates on customer needs and develops series of high-cost and high-quality products. NR145 is a precision colorimeter with 45°/0° viewing angle after NH310, NH300, NR200, NR110 and NR100 colorimeter. NR145 colorimeter has strong functions which applied a number of differential innovative technologies. It can measure accurately in 45° illumination /0° receiving under the SCE mode.



3nh cheap colorimeter price with 45/0 Geometry NR145

Product Advantages

1. Built-in white plate parameters. No need to calibrate each time which can perform measurement quickly.

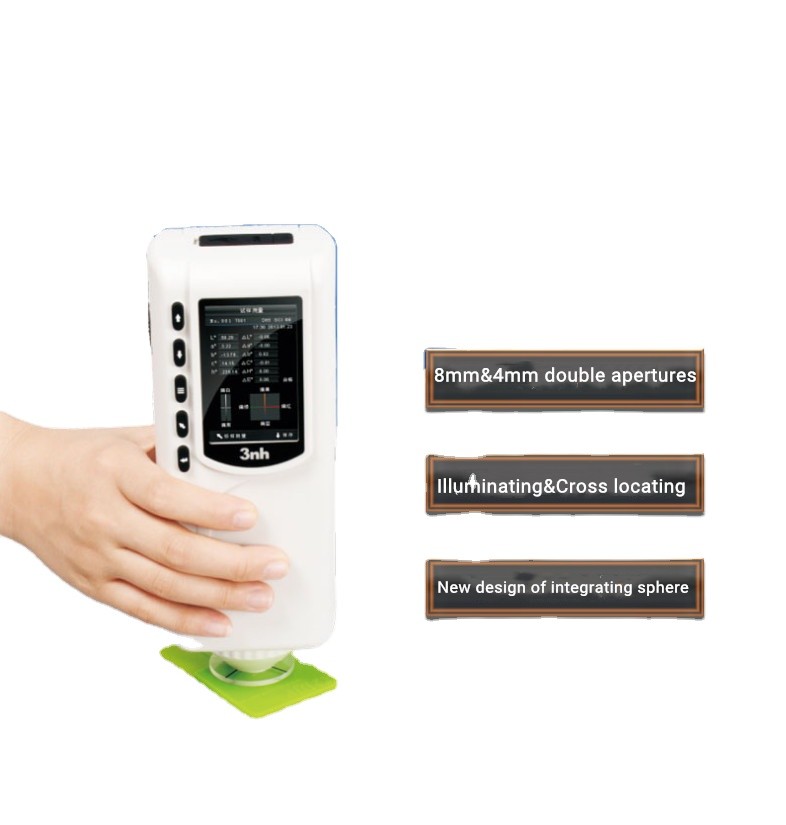

2. Double Locating: Illuminating locating and precise cross locating.

3. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.

4. New 45°/0° Optical Path Design: Significantly improve the measurement stability and precision.

5. 8mm Measuring Aperture.

6. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.

7. Configure CQCS3 software. Connect PC computer to realize more functions.

8. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

9. Hand-head structure: small and convenient; make the measurement easier.

10. Exquisite appearance: adopts traditional and fashionable aesthetic designs.



3nh cheap colorimeter price with 45/0 Geometry NR145

3nh NR145
Illuminating/Viewing Geometry 45°/0°
Measuring Aperture Φ8mm
Measurement End-face Large stable end face and small concave-convex end face
Detector Silicon photoelectric diode
Locating Illuminating Locating/Cross Locating
Color Space CIEL*a*b*C*h* CIEL*a*b*
CIEXYZ
Color Difference Formula △E*ab △L*a*b* △E*C*h*
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each Equipment ≤0.80ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Weight 500g
Dimension 205×67×80 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time The first charging time is 8 hours--100% electricity
PC Software CQCS3 Software
Printer (optional) Miniature thermal printer



8mm Apertrue Plastic Ceramic Paint Portable Chroma Meter 08mm Apertrue Plastic Ceramic Paint Portable Chroma Meter 1

Company Details:

8mm Apertrue Plastic Ceramic Paint Portable Chroma Meter 2

Contact Information:



Contact Person: Clara Liu;

Email: L001@3nh.com;

Wechat & Whatsapp ID: +8613510310267;

Skype: clara.3nh





Color Space

CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
