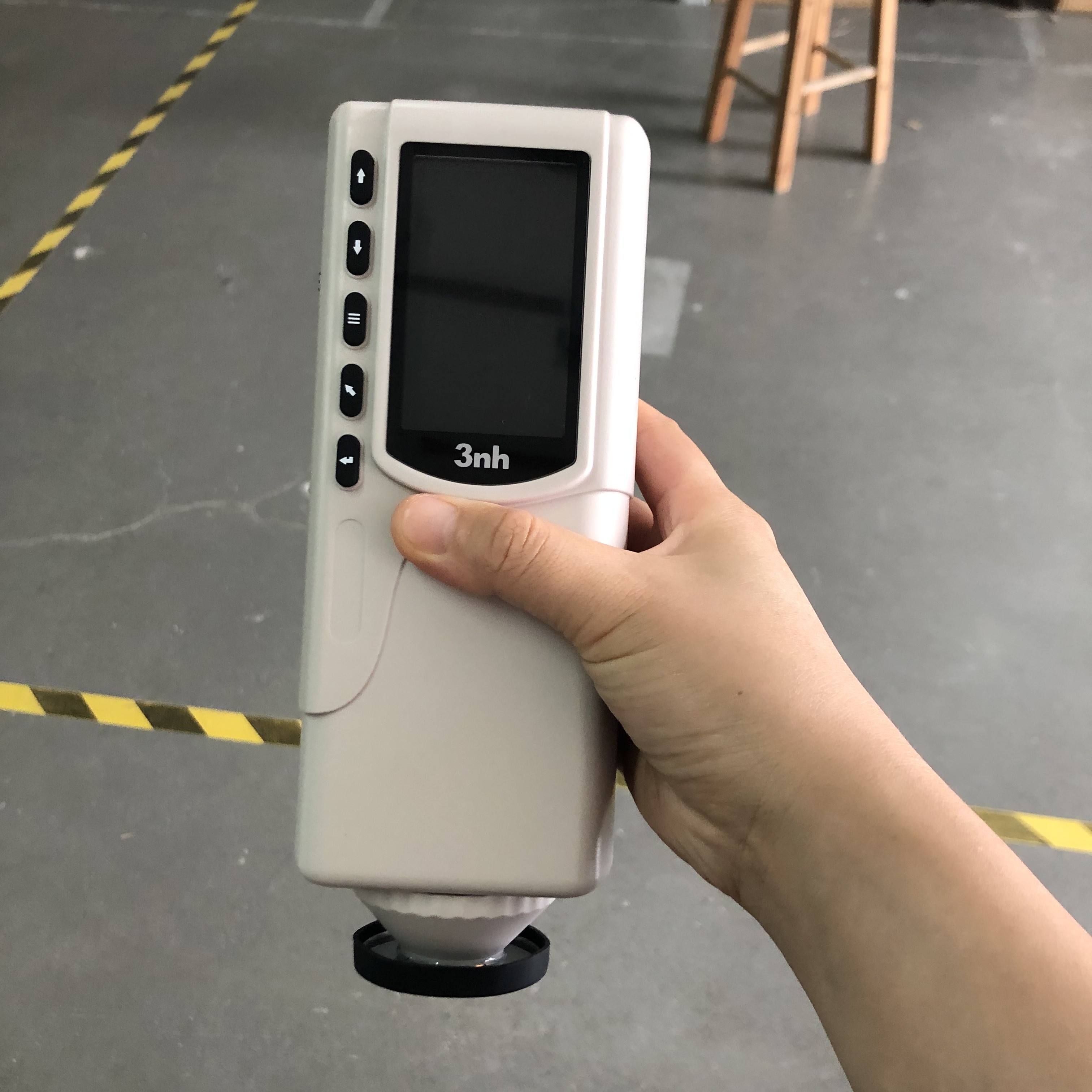

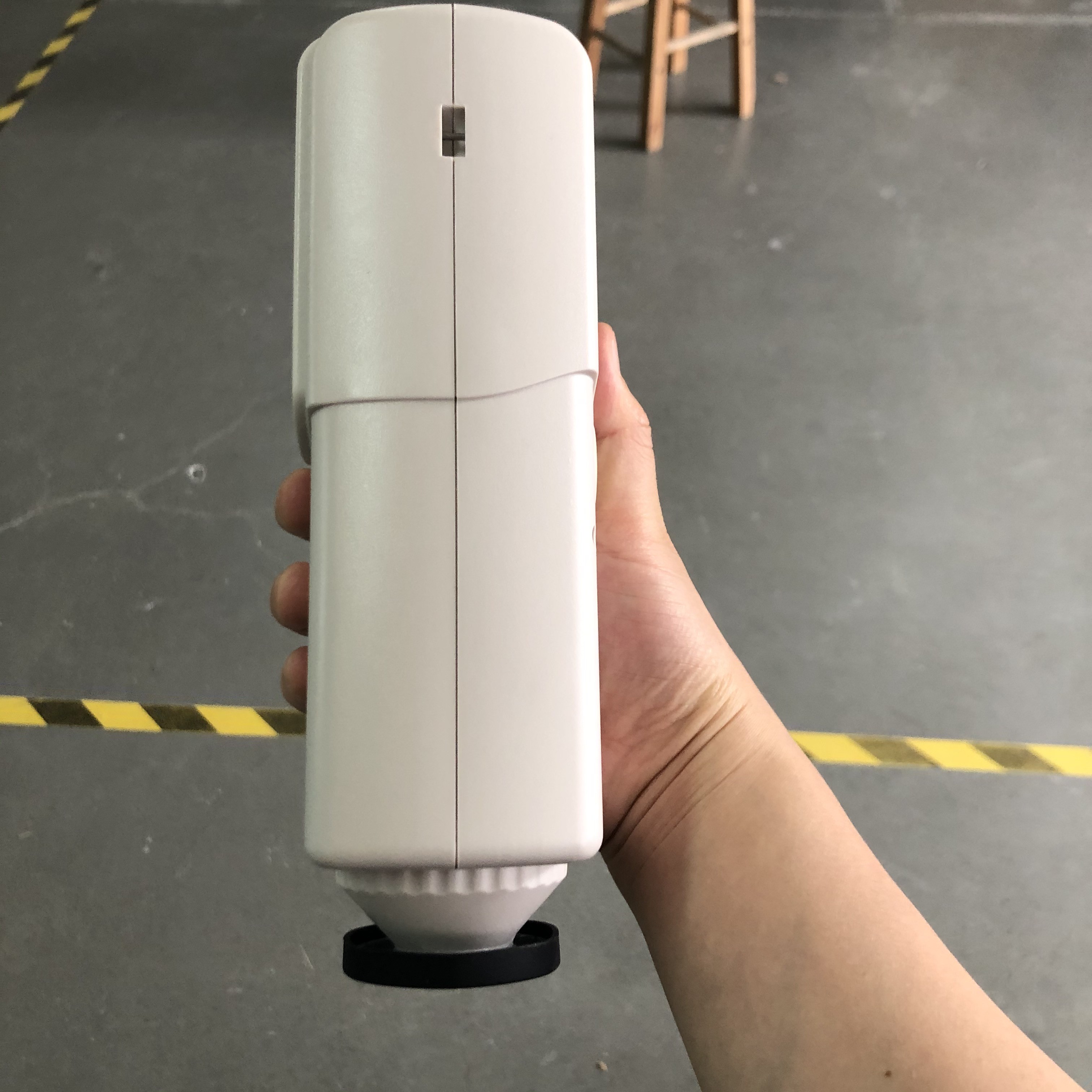

3nh NR100 CIE 10° Observer Color Test Equipment
Place of Origin | Shenzhen, China |
---|---|
Brand Name | 3nh |
Certification | CE, TUV, FCC, ISO9001, RohS |
Model Number | NR100 |
Minimum Order Quantity | 1 Unit |
Price | 600 |
Packaging Details | 46*25*38cm, 4.5kg, Alluminum Box |
Delivery Time | 1-3 work days |
Payment Terms | T/T, L/C, Western Union |
Supply Ability | 1000 Units per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeasuring Aperture | Φ4mm & 8mm | Repeatability | Within ΔE*ab 0.03 |
---|---|---|---|
Illuminating/Viewing Geometry | 8° / D | Measuring Range | L: 0 To 100 |
Illuminant Device | LED White Light | Storage | 100 Pcs Standard Samples; 10000 Pcs Test Samples |
Color Difference Formula | ΔE*ab; ΔL*ab; ΔE*C*H | Measuring Conditions | CIE 10° Standard Observer |
High Light | 3nh NR100,CIE 10° Handheld Color Meter |
3NH NR100 cheap 8mm & 4mm two apertures colorimeter chroma meter color meter NR100 wiith CIE LAB Delta E
NR100 Colorimeter Technical Specifications
NR110 | NR10QC | NR100 | |
Illuminating/Viewing Geometry | 8/d(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978. | ||
Illumination | LED blue light excitation | LED white light | |
Measuring Aperture | Φ4mm | Φ8mm flat aperture; Φ4mm tip aperture | |
Detector | Silicon photoelectric diode | ||
Locating | Illuminating Locating/Cross Locating | ||
Measurement End Face | Large stable end-face and small concave-convex end-face | ||
Color Space | CIEL*a*b*C*h* CIEL*a*b* CIEXYZ | CIEL*a*b* | CIE LAB |
Color Difference Formula | ΔE*ab ΔL*a*b* ΔE*C*h* | ΔE*ab | |
Light Source | D65 | ||
Observer Angle | CIE 10° | ||
Errors Between Each Equipment | ≤0.80ΔE*ab (Average for 12 BCRA Series II color tiles) | ≤0.20ΔE*ab (Average for 12 BCRA Series II color tiles) | ≤ΔE*ab 0.4 (Average for 12 BCRA Series II color tiles) |
Storage | 100pcs standards 20000pcs samples | 100pcs standards ,10000pcs samples | |
Repeatability | Standard deviation within ΔE*ab 0.08 (Average of 30 measurements of standard white plate) | Standard deviation within ΔE*ab 0.03 (Average of 30 measurements of standard white plate) | |
Language | English/Chinese | ||
Weight | 500g | ||
Dimension | 205×67×80 mm | ||
Power source | Rechargeable lithium-ion battery 3.7V@3200mAh | ||
Lamp Life | 3 years, more than 1.6 million measurements | ||
Interface | USB | ||
Charging Time | 8 hours--100% electricity | ||
PC Software | CQCS3 Software | / | |
Standard Accessory | Power Adapter, User Guide, PC software(download from 3nh.com), USB Cable, White Calibration Board, Wristbands, Φ4 flat aperture, Φ4 tip aperture | Power Adapter, User Guide, PC software(download from 3nh.com), USB Cable, Wristbands, Φ4 flat aperture, | Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture. |
Printer (optional) | Micro Printer, powder test box | ||
Notes: The specifications are subject to change without notice. |
Introduction
3nh R&D team concentrates on customer needs and develops a high precision & low cost portable colorimeter NR100. This new model NR100 features with two apertures Φ8mm flat aperture and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, NR100 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Product Advantages
a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
b. Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
c. Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.
d. Handheld design: small and convenient; make the measurement easier.
e. Exquisite appearance: adopts traditional and fashionable aesthetic designs.
f. High cost performance: large output, good quality, cheap products.
Applications:
Size | 45*23*38cm |
Gross weight | 3kg |
Standard accessory | Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture. |
Optional accessory | micro printer, power test box |
We can ship by DHL, Fedex, UPS, TNT, SF express etc door to door, and we support 1 year warranty except consumables.
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.
Our Certificates:
ISO9001:2008; CE; FCC; ROHS; TUV.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Frequently Asked Questions
1. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
2. What's your main market.
Answer: We sell to the global market.
3. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
4. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
