Payment & Shipping Terms:
|Measuring Angle:||20° & 60° & 85°||Measuring Area(mm):||20°:10x10 60°:9x15 85°:5x36|
|Measuring Range(GU):||20°:0~2000 60°:0~1000 85°:0~160||Division Value:||0.1GU|
|Tolerance:||±1.2, ±1.2%||Data Port:||USB|
|Product Name:||Gloss Meter|

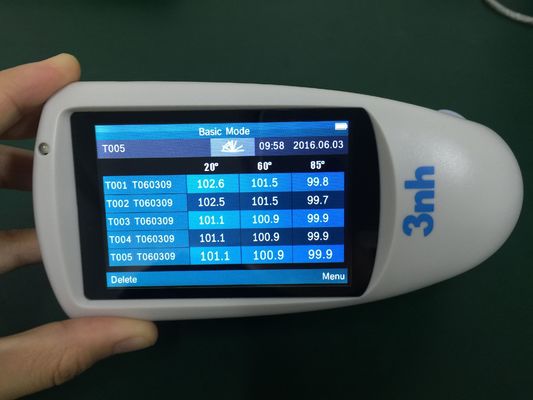

3NH nhg268 touch screen 3.5 inch multi-angle precise gloss meter byk medidor de brilho 0-2000gu
|Parameters||Tri-angle Gloss Meter NHG268|
20° & 60° & 85°
Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
|Measuring Area||20°: 10x10mm 60°: 9x15mm 85°: 5x36mm|
|Measuring Range||20°:0~2000GU 60°:0~1000GU 85°:0~160GU|
|Measurement Range Repeatability
|0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
|Measurement Standard||Conform to the Working Requirements for JJG696 First Class Glossmeter|
|Chromaticity Response||Corresponding with CIE 1931(2°) under CIE C Light Source|
|Display Size||TFT 3.5"|
|Screen-touch||Yes, Capacitive Touch Screen|
|Battery||3200mAh Li-ion Battery , more than 10000 times (within 8 hours)|
Basic Mode: 1000
Statistical Mode: 5000
Continuous Mode: 5000
|PC Software||GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions|
|Operation Temperature||0~40℃ (32~104℉)|
|Storage Temperature||-20~50℃ (-4~122℉)|
|Humidity||<85% Relative Humidity, No Condensation|
|Standard Accessories||Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate|
|Optional Accessories||Mini Printer|
Frequently Asked Questions
1. Which models are the equivalent models to NHG268 Gloss Meter?
Answer: BYK4563 is the equivalent model to 3nh NHG268.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
Contact Person: Melorae Huang
