4mm Aperture 3nh Nr100 CIE Lab Color Difference meter

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number NR100
Minimum Order Quantity 1 Unit
Price 600
Packaging Details 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time 1-3 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Aperture Φ4mm & 8mm Repeatability Within ΔE*ab 0.03
Illuminating/Viewing Geometry 8° / D Measuring Range L: 0 To 100
Illuminant Device LED White Light Storage 100 Pcs Standard Samples; 10000 Pcs Test Samples
Color Difference Formula ΔE*ab; ΔL*ab; ΔE*C*H Measuring Conditions CIE 10° Standard Observer
High Light

CIE Lab Color Difference Meter

,

4mm Aperture Color Difference Meter

,

3nh Nr100

Leave a Message
Product Description

4mm aperture colorimeter 3nh nr100 color meter with CIE lab color difference space

Product Description

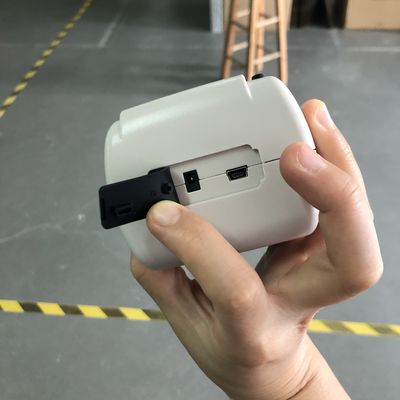

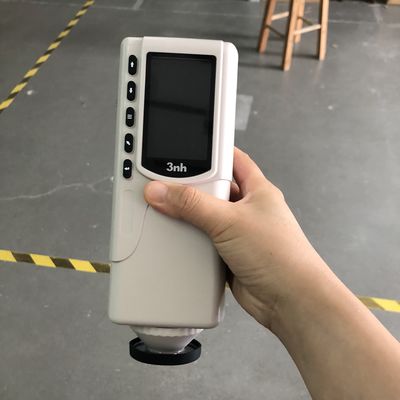

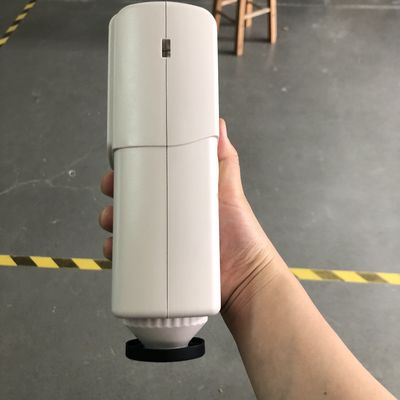

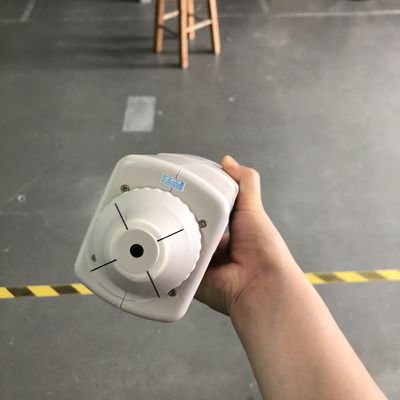

NR100 Precision Colorimeter

3nh R&D team concentrates on customer needs and develops a high precision & low cost portable colorimeter NR100. This new model NR100 features with two apertures Φ8mm flat aperture and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, NR100 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.



Product Advantages

a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

b. Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.

c. Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.

d. Handheld design: small and convenient; make the measurement easier.

e. Exquisite appearance: adopts traditional and fashionable aesthetic designs.

f. High cost performance: large output, good quality, cheap products.



NR100 Colorimeter Technical Specifications



Model NR100
Illuminating/Viewing Geometry 8/d(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978.
Illumination LED white light
Detector Silicon photoelectric diode
Measuring Aperture Φ8mm flat aperture; Φ4mm tip aperture
Color Space CIE LAB
Color Difference Formula ΔE*ab
Observer Angle CIE 10°
Light Source D65
Displayed Data Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time 1.0s
Repeatability Standard deviation within ΔE*ab 0.03 (Average of 30 measurements of standard white plate)
Errors Between Each Equipment Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles)
Dimension 205×67×80 mm
Weight 500g
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life TFT 2.8 inch
Interface USB
Data Memory 100pcs standards 10000pcs samples
Operating Environment 0~40℃(32~104°F)
Storage Environment -20~50℃(-4~122°F)
PC Software No
Standard Accessory Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture.
Optional Accessory Micro Printer, powder test box
Notes: The specifications are subject to change without notice.
Application

3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.



Packaging & Shipping



Size 45*23*38cm
Gross weight 3kg
Standard accessory Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture.
Optional accessory micro printer, power test box





Our Services

We can ship by DHL, Fedex, UPS, TNT, SF express etc door to door, and we support 1 year warranty except consumables.



Company Information

3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.

Our Certificates:
ISO9001; CE; FCC; ROHS; TUV; SCM.

The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.

20200707114603

FAQ

Frequently Asked Questions

1. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
2. What's your main market.
Answer: We sell to the global market.
3. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
4. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
