CIE 10° 3nh NR110 4mm Aperture Color Difference Meter

  • CIE 10° 3nh NR110 4mm Aperture Color Difference Meter
  • CIE 10° 3nh NR110 4mm Aperture Color Difference Meter
  • CIE 10° 3nh NR110 4mm Aperture Color Difference Meter
  • CIE 10° 3nh NR110 4mm Aperture Color Difference Meter
  • CIE 10° 3nh NR110 4mm Aperture Color Difference Meter
Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number NR110
Minimum Order Quantity 1 Unit
Price Discuss
Packaging Details 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time 1-3 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Aperture Φ4mm Repeatability Within ΔE*ab 0.08
Illuminating/Viewing Geometry 8° / D Measuring Range L: 0 To 100
Illuminant Device LED Blue Light Excitation Storage 100 Pcs Standard Samples; 20000 Pcs Test Samples
Color Difference Formula ΔE*ab; ΔL*ab; ΔE*C*H Measuring Conditions CIE 10° Standard Observer
High Light

4mm Aperture Color Difference Meter

,

CIE 10° Color Difference Meter

,

3nh NR110
Leave a Message
Product Description

Precise chroma meter color test colorimeter 3nh 4mm NR110 color difference meter



Company Info. :
3nh colorimeter price

Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.



Our Certificates:
ISO9001:2008; CE; FCC; ROHS; TUV.



The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Brief Introduction :



1 4mm aperture
2 Accuracy: dE0.08
3 Illuminant: D65
4 Li-ion battery



High cost-effctive precise colorimeter features with powerful fuctions and excellent innovation technology.


Features :



1. Double Locating: Illuminating locating and cross locating

2. Double Measurement End Face: Large area measurement and small area measurement

3. New Integrating Sphere Design: More stable measurement

4. Equipped with Rechargeable High-Capacity Li-ion Battery


Application :



It's used to compare color difference in plastic, electronic, painting, coating, ink, texile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratoris.



3nh colorimeter price


Specification :
Illuminating/Viewing Geometry 8/d
Measuring Aperture Φ4mm
Detector Silicon photoelectric diode
Locating Illuminating Locating/Cross Locating
Measurement End Face Large stable end face and small concave-convex end face
Color Space CIEL*a*b*C*h* CIEL*a*b*
CIEXYZ
Color Difference Formula Δ E*ab
Δ L*a*b*
Δ E*C*h*
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each Equipment ≤0.80ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Language English/Chinese
Weight 450g
Dimension 205×67×80 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time 8 hours--100% electricity
PC Software CQCS3 Software
Printer (optional) Miniature thermal printer

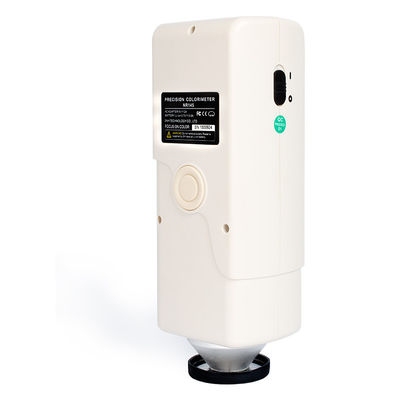

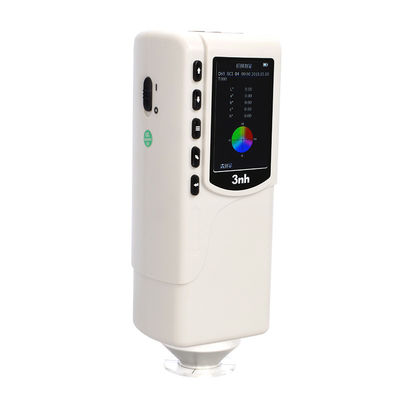

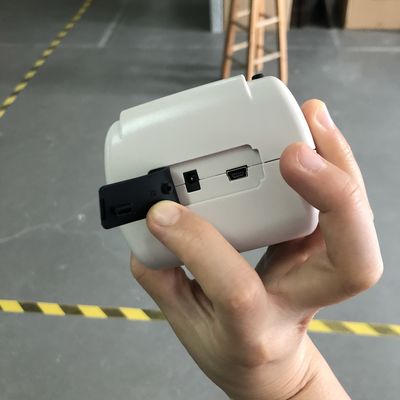

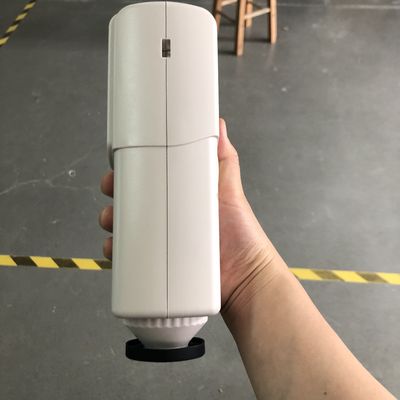

Product Image :
1 (16)
1 (14)
1 (10)
1 (8)
3nh colorimeter price 3nh colorimeter price
Related Knowledge about Colorimeter:



Color Space

CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
Our service :



NR110 Colorimeter is under warranty for 12 months from the purchase date. Customers must provide warranty card and valid proof of purchase.

Waiting for your inquiry,any more questions I will reply you within 24 hours
