Xrite CI64uv Color Test Spectrophotometer 400-700nm 3nh YS3060

Xrite CI64uv Color Test Spectrophotometer 400-700nm 3nh YS3060
Xrite CI64uv Color Test Spectrophotometer 400-700nm 3nh YS3060

Large Image :  Xrite CI64uv Color Test Spectrophotometer 400-700nm 3nh YS3060

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE&RoHS&TUV&FCC&ISO9001
Model Number: YS3060

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Instrument Package
Delivery Time: 2 woks days
Payment Terms: T/T, Paypal.etc
Supply Ability: 1000pcs/Month
Detailed Product Description
Model: YS3060 Illumination: 48mm
Wavelength Range: Concave-Grating Reflectance Range: 400-700nm
Color Spaces: 10nm Light Source: LED And UV Sources
Battery: Li-ion Battery Storage: Standard: 1000, Sample: 28000
Color Space: CIE LAB,XYZ,Yxy,LCh,CIE LUV, HunterLAB Size: 184*77*105mm
High Light:

Xrite CI64uv Color Test Spectrophotometer

,

700nm Color Test Spectrophotometer

,

3nh YS3060

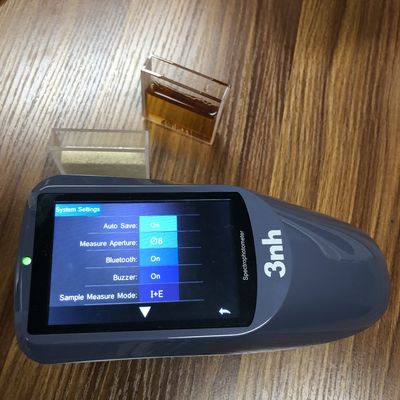

UV Spectrophotometer 400-700nm CIE LAB XYX Chroma Meter YS3060







Brief Introduction:



Full Illuminants + UV, 8mm + 4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.



YS3060 grating spectrophotometer adopts bluetooth and USB dual modes for wider user. YS3060 spectrophotometer also with SCI & SCE double measuring data, which also with 4mm and 8mm aperture. Special UV light make YS3060 spectrophotometer more accuracy and easy to operating. YS3060 spectrophotometer also with extended PC software which will enable it be a good partner for colorist and color QC management.



Specification:



Model

Items

YS3060 YS3020 YS3010
Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size 48mm
Light Source Combined LED Light, UV Light Combined LED Light
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400-700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture Dual Aperture: 10mm/8mm & 5mm/4mm Customized Aperture: 8mm/4mm/1×3mm Single Aperture: 8mm/10mm
Specular Component SCI&SCE
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Other Colorimetric Index

WI(ASTM E313, CIE/ISO, AATCC, Hunter),

YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),

Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness

Observer Angle 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 D65, A, C, D50, D55, D75, F2, F7, F11 D65, A, C, D50
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time 2.6s
Repeatability MAV/SCI: ΔE*≤0.03 MAV/SCI: ΔE*≤0.05 MAV/SCI: ΔE*≤0.06
Inter-instrument Error MAV/SCI: ΔE*≤0.15 MAV/SCI: ΔE*≤0.2 MAV/SCI: ΔE*≤0.4
Measurement Mode Single Measurement, Average Measurement
Locating Method Camera View Finder Locating
Battery Li-ion battery. 5000 measurements within 8 hours
Dimension L*W*H=184*77*105mm
Weight 600g
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth 4.0 USB
Data Storage Standard 2000 Pcs, Sample 20000 Pcs
Language English, Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory Micro Printer, Powder Test Box
Notes: The specifications are subject to change without notice.



Application Industry:



Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

Xrite CI64uv Color Test Spectrophotometer 400-700nm 3nh YS3060 0



Features:

1. Spectrophotometer YS3060 is the latest color measuring spectrophotometer developed, manufactured and launched .

Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management.
2. YS3060 adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it
is compatible with many famous brands.
3. It can be configured withd dual aperture: 10mm/8mm & 5mm/4mm.The 4mm is for the color measurement of small targets.
4. The PC terminal software SQCX provides powerful data management functions.

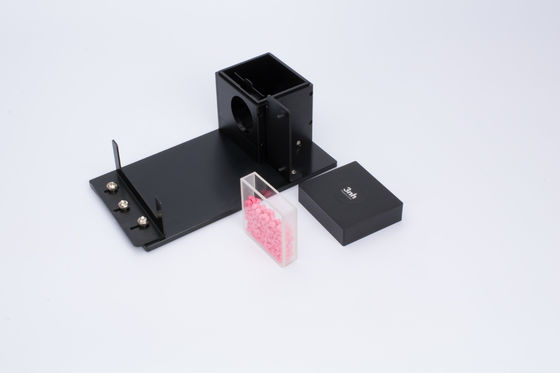

5. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
6. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
7. It passed CE, ISO 9001, ROHS, FCC, TUV certification.
8. A built-in camera to help to aim the targets to be measured.
