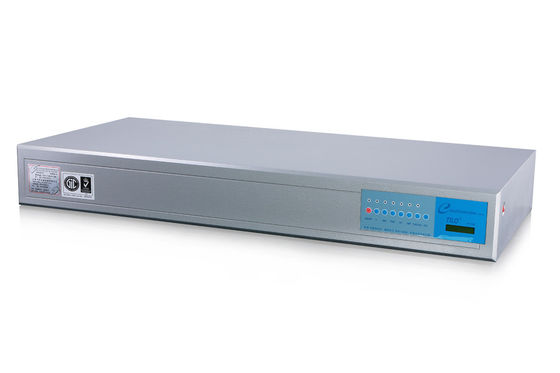

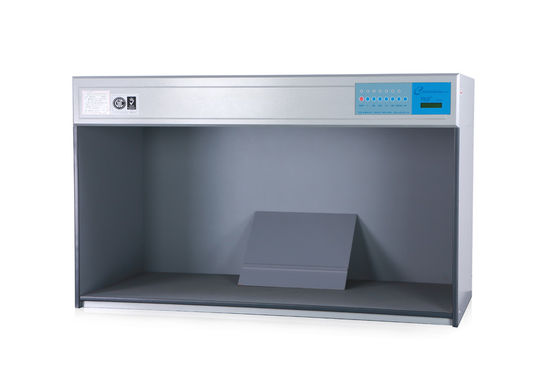

D65 TL84 120cm Color Matching Light Cabinet 3nh P120

Place of Origin Shenzhen,China
Brand Name TILO
Certification CE,ISO,RoHs,etc
Model Number P120
Minimum Order Quantity 1pc
Packaging Details Standard Wooden Exports Package
Delivery Time 2 work days
Payment Terms T/T,Paypal,etc.
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model P120 Size 131*60*80CM
Light Sources D65, TL84, CWF, F, UV,TL83 Standard ASTM D1729, ISO3664, DIN, ANSI And BSI
Weight 65kg Lamp Length 120cm
High Light

D65 Color Matching Light Cabinet

,

120cm Color Matching Light Cabinet

,

TL84 Colour Assessment Cabinet

Leave a Message
Product Description

TILO P120 110v 220v Large size 120cm Color light box Color assessment cabinet with D65*2/TL84*2/U35*2/UV*1/F*4



Brief Introduction:



Brand: TILO,Made in China



P120 (oversize) can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

Model P120
Light source D65, TL84, UV, F, CWF, TL83
Dimensions(W*D*H) 1310x600x800 mm
Inner Size(W*D*H) 1280x590x590 mm
Voltage 220V
Weight 60kg

P120 Color light box Application:



Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light



Booth / Viewing Booth / Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.



The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.





P120 Color light box Features:



Ø TILO Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.

Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The dimension can be made by customized.

Model

D65



TL84



F



UV



CWF



TL83



(U30)



Voltage



P120

6 light sources(220V)

2 PCS 2 PCS 6 PCS 1 PCS 2 PCS 2 PCS 220V/50Hz

P120

6 light sources(110V)

2 PCS 2 PCS 6 PCS 1 PCS 2 PCS 2 PCS

110V/60Hz

About Light Sources:

Light Source Color Light Box application Color temperature(k) Power(W)
D65 International standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe, Japan and China 4000 18
CWF (Cool White Fluorescent)American Standard 4150 18
F "Sun-setting Light Yellow" incandescent light source(imitation of sunset) 2700 40
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments Wavelength:365nm 20
TL83 Applied to stores in Europe
