|Measurement Geometry:||45/0||Spectral Separation Device:||Concave Grating|
|Detector:||256 Image Element Double Array CMOS Image Sensor||Wavelength Range:||400-700nm|
|Density Standards:||ISO Status A, E, I, T||Color Spaces:||CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB|
Cmyk Colour Measurement Spectrophotometer,
CIE LAB Colour Measurement Spectrophotometer
1. Product Profile

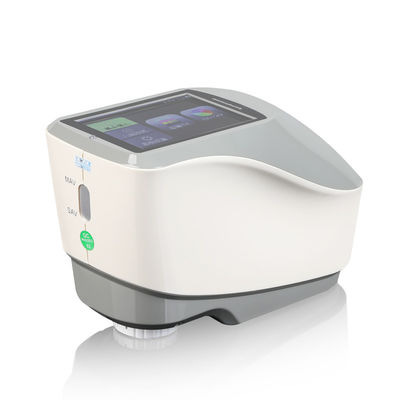

YD5050 portable spectro-densitometer is a high-end precise instrument for the measurement of printing optical density and colors, which is designed to be applied in industries like printing, packaging and ink, film process, etc.
YD5050 advanced spectro densitometer is ideal for ink rooms, quality control labs, and print and packaing manufacturing facilities with the hight standards.
YD5050 can measure the color of ink and paper before, during and after print production to ensure color stays on target.
2. Detailed Technical Parameter / Specification Form
|Technical Parameter Items||YD5050 Portable Spectro-densitometer|
|Product Category||Optical Density Measurement Instrument|
|Product Name||Portable Spectro-densitometer|
|Application||For the measurement of optical density and colors in industries like printing, packaging and ink, film, plastics and electronics, etc.|
|Measuring Apertures||Customize One Aperture from: ∅2mm / ∅4mm / ∅8mm|
Conform to the measurement conditions of ISO 13655
M0 (CIE Light Source A)
M1 (CIE Light Source D50)
M2 (Illuminance Excluding UV)
M3 (M2 + Polarization Filter)
|Density Standards||ISO Status T, E, A, I|
|Density Index||Density Value, Density Difference, Dot Area, Dot Gain, Overprint, Printing Characteristics, Printing Contrast, Chromaticity Difference, Greyscale.|
|Color Spaces||CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLab.|
|Color Difference Formulas||ΔE*ab, ΔE*94, ΔE*00, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*(Hunter).|
|Inter-instrument Error||For Color: ΔE*Lab≤0.18|
|Other Colorimetric Index|
|Information Displayed||Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset/Deviation Direction|
|Viewing Angle||2° & 10°|
|Illuminating Lamps||Combined LED Lamps, UV Lamps|
|Lamps Life-span||5 Years, more than 3 Million times of measurements.|
|Wavelength Range||400nm - 700nm|
|Illuminants||D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), UV.|
|UV Light Source||Yes. Include UV / Exclude UV.|
|Sensor||256 Image Element Double Array CMOS Image Sensor|
|Location Method||By Locating Plate|
|Data Storage Capacity||20000 pcs of data|
|Data Transmission Port||USB + Bluetooth 4.0|
|PC Terminal Software||SQCX (for free)|
|Display Screen||3.5 inches TFT Capacitance Screen-touch Display|
|Language Built-in||English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify)|
|Power Supply||Built-in Rechargeable Battery, Power Adapter|
|Working Environment||Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation)|
|Storage Environment||Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation)|
|Standard Accessories||White and Black Calibration Board, Customized Aperture, Power Adapter, USB Cable, PC Software SQCX, Bluetooth Adapter, Polarization Filter, Locating Plate, User Guide.|
|Optional Accessories||Mini Thermal Printer|
3. Detailed Introduction to Instrument
3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing more comprehensive density and colorimetric indexes in one screen, making your operation more convenient and freer, checking the information you want very soon.
3.2. Dual Array 256 Image Element CMOS detector, making it have a high resolution and more sensitive to density and colors.
3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.
3.4. UV light source, can measure fluorescent colors more accurately.
3.5. Pass/Fail test result indication, help you to decide whether the color of the sample meets the requirements very promptly.
3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.
3.7. All the parameters about printing: CMYK, Density, Dot Area, Dot Gain, etc. One instrument meets all requirements.
3.8. Optics 45°/0 Geometry, the optical geometry which are widely adopted in color measuring instruments. Reflective 45°/0 Geometry is for measuring colors of non-transparent targets.
3.9. Customizable measuring apertures: ∅2mm or ∅4mm or ∅8mm, different choice according to different application situations.
3.10. All kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet all the requirements for color measurement and color analysis.
3.11. Include all kinds of light source types, can be applied to all the color measurement situations.
3.12. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.
3.13. Powerful data management functions, you can search and check records, rename and delete records, input standards.
3.14. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.
3.15. USB and Bluetooth4.0, implement data transmission more convenient and prompt.
4. Company Profile
YD5050 was developed and manufactured independently by Shenzhen 3nh/ThreeNH Technology Co., LTD. which is a national high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998.
We warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.
5. Frequently Asked Questions
1. Can the YD5050 spectro-densitometer be equivalent to any model of world famous brands?
Answer: Yes, our YD5050 is equivalent to the eXact Spectro-densitometer of X-rite.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
