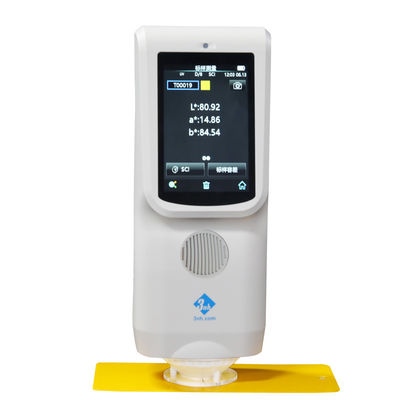

Reflectance Curve 10° Angle Color Spectrocolorimeter Silk TS7020
Product Details
| Optical Geometry: | D/8 | Wavelength: | 400-700nm |
|---|---|---|---|
| Repeatibility: | DeltaE ≤ 0.08 | Inter-instrument Error: | DeltaE ≤ 0.4 |
| Aperture: | 8mm | Sphere Size: | 40mm |
| Highlight |
10° Angle Color Spectrocolorimeter,Reflectance Curve Color Spectrocolorimeter,Silk TS7020 Spectrocolorimeter |
||
Product Description

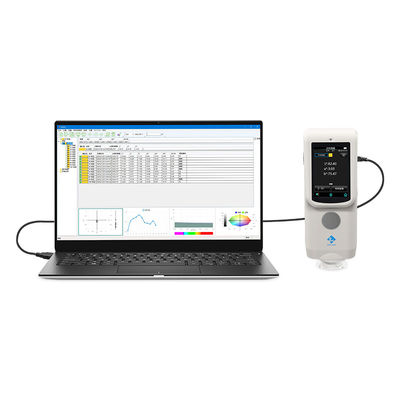

TS7020 is Silk using autonomous core technology research and development of A portable light color difference instrument, is the high level in spectral architecture color difference instrument, in addition to ensure accurate relative Δ E at the same time, also to ensure the accuracy of the absolute value of L, A and B for A long time, anytime, anywhere can pass the international standards and national standards of measurement. Using the built-in silicon photodiode array (double row 24) sensors, import the whiteboard, repetitive Δ E * ab easily control within 0.08, both measurement speed and convenience of operation, can connect PC quality management software, to achieve more extensions, 8 mm diameter meet plastic electronics, paint and ink, textile printing and dyeing, printing, such as the ceramic industry accurate color difference of production and the quality control.
| Model | TS7020 |
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) |
| SCI Mode | |
| Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source |
| Spectrophotometric Mode | Flat Grating |
| Senso | Silicon photodiode array (double row 24 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | / |
| Semiband Width | 10nm |
| Measured Reflectance Range | L:0~100; reflectivity:The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm) |
| Measuring Aperture | Φ8mm |
| Specular Component | SCI |
| Color Space | CIE LAB,XYZ,Yxy,LCh |
| Color Difference Formula | ΔE*ab,ΔE*00 |
| Other Colorimetric Index | / |
| Observer Angle | 10° |
| Illuminant | D65,A,F2(CWF) |
| Displayed Data | Reflectivity (the user specifies the reflectivity at 3 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Displayed Accuracy | Display 0.1, storage 0.01 |
| Measuring Time | About 1.5s |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.08 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.4 (Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Stabilizer cross position |
| Dimension | L*W*H=81X71X214mm |
| Weight | About 460g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Data Storage | Standard 500 Pcs, Sample 10000 Pcs |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture |
| Optional Accessory | USB Micro Printer, Powder Test Box |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product |
Silk & Silk is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.
Our Certificates:
ISO9001; CE; FCC; ROHS; TUV; SCM.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Package: Alumnium alloy metal box, carton package.
Payment: T/T, Western Union, Paypal
Lead Time:1-3 workdays
Shipping: DHL, Fedex, UPS, EMS,TNT, etc
Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
| Delta E | Meaning |
| 0~1 | A normally invisible difference |
| 1~2 | ery small difference, only obvious to a trained eye |
| 2~3.5 | Medium difference, also obvious to an untrained eye |
| 3.5~5 | An obvious difference |
| >6 | A very obvious difference |
ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES
1.24 hours online to ensure quick response to customers' inquiry or online message;
2. Help customers to choose the best suitable machine model;
3. We support OEM and ODM service and 12 months warranty from the purchase date.
