CQCS3 Software 8mm Aperture Handheld Colorimeter 3nh NR145

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE,RoHs,ISO,etc
Model Number NR145
Minimum Order Quantity 1pc
Price discuss
Packaging Details Standard Export Package
Delivery Time 2 works days
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model SCE Sensor Silicon Photoelectric Diode
Measuring Aperture 8mm Color Space CIE L*a*b*c*h,CIEL*a*b, CIEXYZ
Storage 100pcs Standards 20000pcs Samples PC Software CQCS3 Software
Printer (optional) Miniature Thermal Printer
High Light

CQCS3 Software Handheld Colorimeter

,

8mm Aperture Handheld Colorimeter

,

3nh NR145 Color Test Equipment

Leave a Message
Product Description

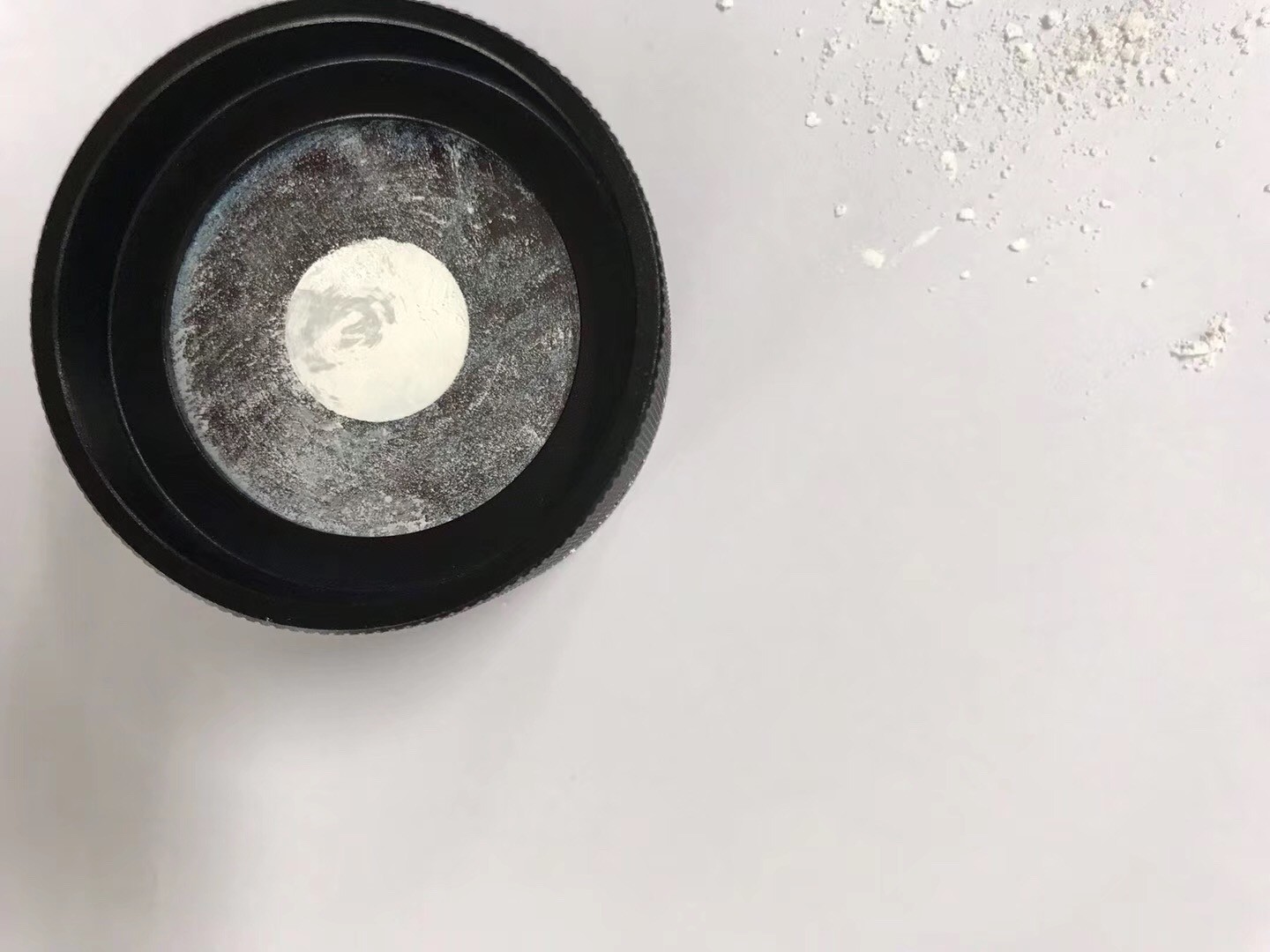

Cheap 8mm handheld colorimeter color test equipment NR145 3nh with powder test box for powder paint color difference

NR145 colorimeter is a model of colorimeter with powerful functions, high accuracy and competitive price, which has integrated the advantages of the similar products of the famous international brands. It also goes with our own innovative technology and patents, like illumination locating and cross locating, built-in white plate parameters.

It is configured with multiple color space systems and color difference formulas, all of which have endowed NR145 with powerful functions to meet the requests of all kinds of color measurements.

Its friendly interface makes operation very simple. And once connected with PC via the software CQCS3 whose complete independent intellectual property right is owned by 3nh, more powerful extension functions will be at hand, like color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management and simulating object color, etc.



3nh R&D team concentrates on customer needs and develops series of high-cost and high-quality products. NR145 is a precision colorimeter with 45°/0° viewing angle after NH310, NH300, NR200, NR110 and NR100 colorimeter. NR145 colorimeter has strong functions which applied a number of differential innovative technologies. It can measure accurately in 45° illumination /0° receiving under the SCE mode. Plus, its CSCQ3 software helps perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.



Product Advantages


1. Built-in white plate parameters. No need to calibrate each time which can perform measurement quickly.
2. Double Locating: Illuminating locating and precise cross locating.
3. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
4. New 45°/0° Optical Path Design: Significantly improve the measurement stability and precision.
5. 8mm Measuring Aperture.
6. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
7. Configure CQCS3 software. Connect PC computer to realize more functions.
8. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
9. Hand-head structure: small and convenient; make the measurement easier.
10. Exquisite appearance: adopts traditional and fashionable aesthetic designs.

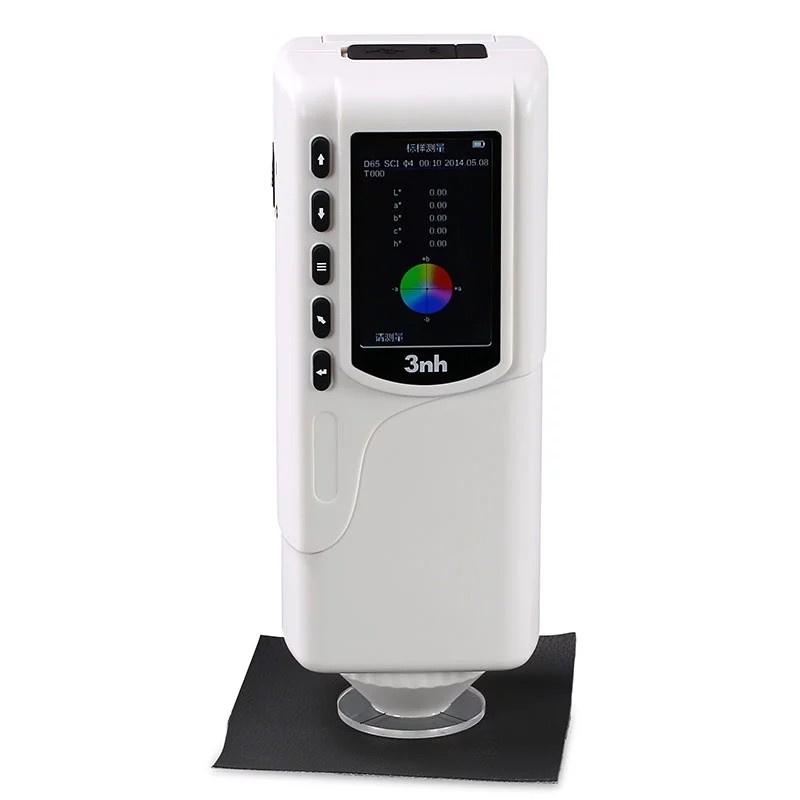

NR145 Precision Colorimeter

NR145 Colorimeter Product Specifications


Model NR145 Precision Colorimeter
Illuminating/Viewing Geometry 45°/0°
Measuring Aperture Φ8mm
Measurement End-face Large stable end face and small concave-convex end face
Detector Silicon photoelectric diode
Locating Illuminating Locating/Cross Locating
Color Space

CIEL*a*b*C*h* CIEL*a*b*

CIEXYZ

Color Difference Formula △E*ab △L*a*b* △E*C*h*
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each Equipment ≤0.80ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability

Standard deviation within ΔE*ab 0.08

Average of 30 measurements of standard white plate

Weight 500g
Dimension 205×67×80 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time The first charging time is 8 hours--100% electricity
PC Software CQCS3 Software
Printer (optional)

Miniature thermal printer
