|Measuring Angle:||20° 60° 85°||Measuring Area(mm):||20°: 9×10, 60°:9x15, 85°: 5×38|
|Measuring Range(GU):||0~2000||Division Value:||0.1GU|
|Tolerance:||±0.2, ±0.2%||Data Port:||USB & Bluetooth|
60 Degree 3nh Gloss Meter,
85 Degree 3nh Gloss Meter,
3nh YG268 Gloss Meter

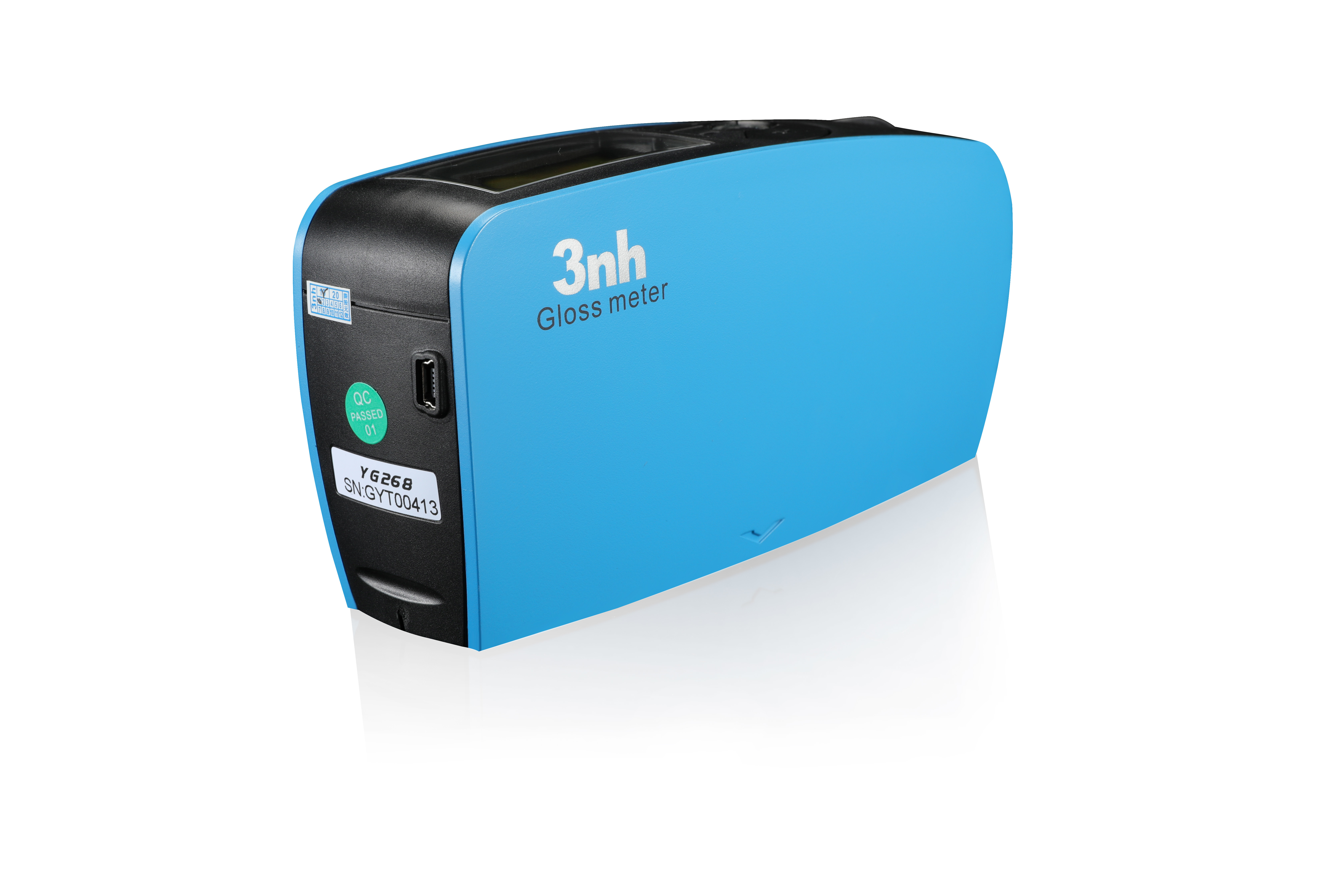

China manufacturer of 3nh gloss meter YG268 with 20 60 85 degree three angles
1. YG268 three angle smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.
2. YG268 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can be manually input.
3. YG268 has four measuring modes.
Basic Mode, the simplest sample measurement mode;
Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the setting.
QA Mode, for quality control at production line.
4. Now YG268 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.
|YG Series Specification Parameter|
|Model||YG60S 60°Economic Gloss Meter||YG60 60°Accurate Gloss Meter||YG268 Tri-angle Gloss Meter|
|Measuring Angle||60°||60°||20° 60°85°|
|Measuring Area||60°: 0-200GU||60°||20°: 0-2000GU,60°: 0-1000GU,85°: 0-160GU|
|Measuring Modes||Basic mode||Basic mode; Statistic mode; Continuous mode; QC mode|
|Repeatability||0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU||0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU||0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU|
|Accurate||Conform with JJG696 second grade requirements of gloss meter||Conform with JJG696 first grade requirements of gloss meter|
|Auto Power-off Time||30s||Within 30s-120s|
|Long-time Calibration||/||Automatically check and made the calibration|
|Language||Chinese & English|
|Storage||/||35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)|
|Display||2.3 inch white and black screen|
|Power Supply||1pc dry-cell battery(can measure 10000 times) or use USB Charge|
|Interface||USB||USB & Bluetooth 2.1 version|
|PC Software||/||GQC6 QC software can printing testing report and with more extended functions|
|Operation Temperature Range||0-40℃(32-104° F)|
|Storage Temperature Range||-20-50℃(-4-122° F)|
|Humidity Range||< 85% RH, without condensation|
|Standard Accessories||User manual, calibration plate||USB cable, user manual, calibration plate, QC software|
|Optional Accessories||Miniature printer|
|Notification: the technical parameter is only for reference|
