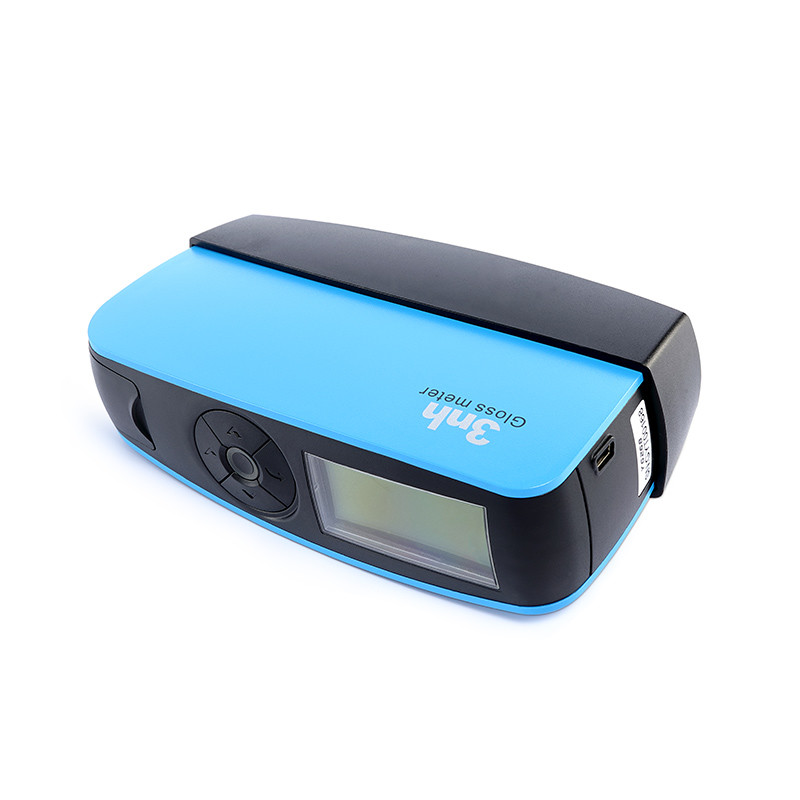

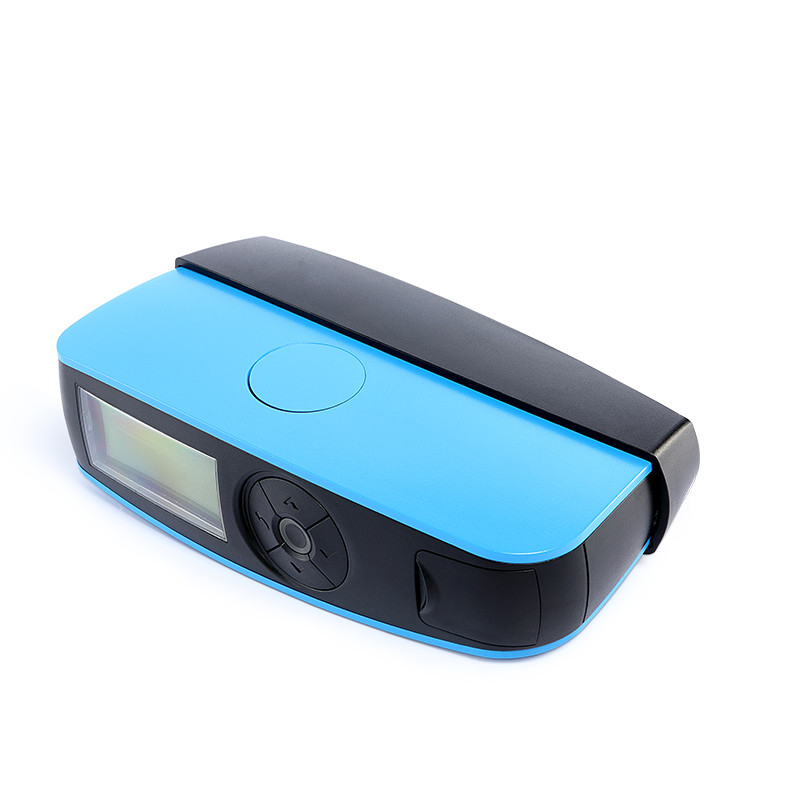

200gu 1gu Range 3nh Yg60s Gloss Meter With 60 Angle Degree
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeasuring Angle | 60° | Measuring Area(mm) | 60°:9x15mm |
---|---|---|---|
Measuring Range(GU) | 60°:0~1000 | Division Value | 0.1GU |
Tolerance | ±0.2, ±0.2% | Data Port | USB |
High Light | 3nh Yg60s Gloss Meter,200gu 3nh Gloss Meter,60 Angle 3nh Gloss Meter |
1. Product Profile
YG60S gloss meter is a single-angle gloss meter for surface glossiness measurement and management, which can be widely applied in all kinds of industries, such as plastics, metals, paint and coating, furniture, wood, ink, printing and packaging, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.
In one word, YG60S single-angle gloss meter can be applied in any place that requires gloss measurement and control.
2. Detailed Technical Parameter / Specification Form
Technical Parameter Items | YG60S Single-angle Gloss Meter |
Product Category | Optical Electronic Gloss Measurement Instrument |
Product Name | Gloss Meter, Glossmeter |
Application | For the measurement of the surface glossiness of those products like plastics, metals, textiles, papers, wood, tiles, etc. |
Optical Angles | One Angle: 60° |
Measurement Area | 60°: 9×15mm |
Measurement Range | 60°: 0~200GU |
Division Value | 1GU |
Measurement Range Repeatability |
0~100GU 100~200GU ±1GU ±1% |
Measurement Standard | Conform with JJG696 first class glossmeter working requirements |
Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
Measuring Time | 0.5s |
Display Screen | 2.3" Screen |
Operation | by buttons |
Measurement Modes | Four Measurement Modes: Basic Mode. |
Data Storage Capacity | None |
PC Software | None |
Data Transferring Port | USB |
Language Built-in | English, Chinese. |
Power Supply |
1 pcs of NO. 5 dry Battery (more than 10000 times of measurements in 8 hours), Power Adapter |
Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |
Standard Accessories | Calibration Board, Power Adapter, USB Cable, PC Software GQC6, User Guide. |
Optional Accessories | Mini Thermal Printer |
Weight | 300g |
Dimension | 160*52*84mm |
3. Detailed Introduction to Instrument
3.1. High configuration of hardware: 2.3 inches display.
3.2. Pressing key operation, makes your operation convenient.
3.3. Universal single angle gloss measurement: 60°.
3.4. Large measurement range from 0GU to 200GU, can measure the glossiness of any targets from matt to very high gloss.
3.5. Single measurement mode: Basic Measurement Mode. Easy to use.
3.6. Buttons operation, very easy to calibrate and do other system settings.
ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES
3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.
Our Certificates:
ISO9001; CE; FCC; ROHS; TUV; SCM.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
