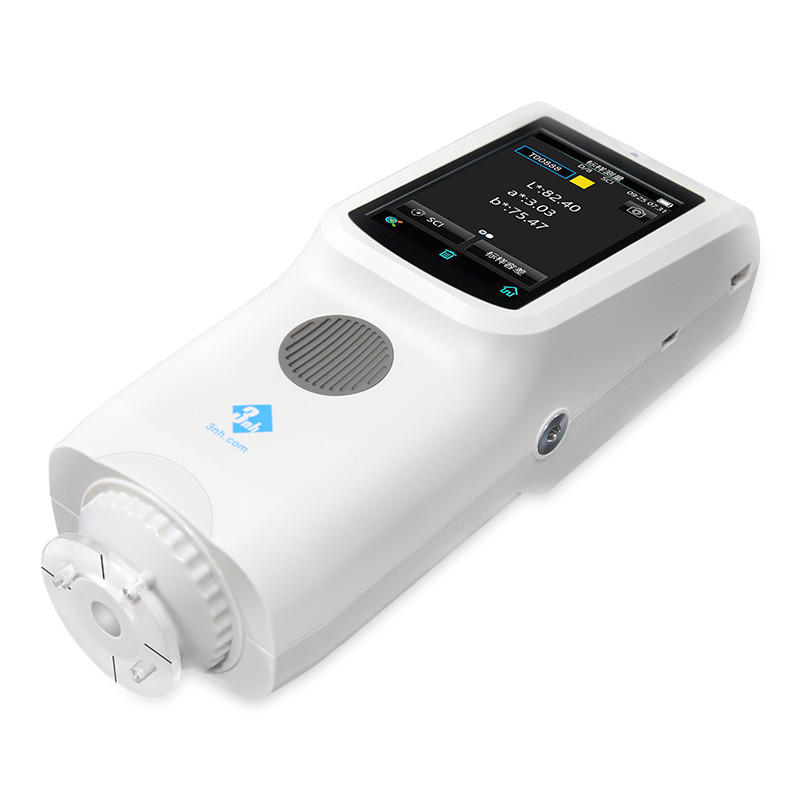

400nm Color Difference Meter 8mm Aperture  3nh TS7020

400nm Color Difference Meter 8mm Aperture 3nh TS7020

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE, TUV, FCC, ISO9001, RoHS
Model Number: TS7020

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Please send inquiry
Packaging Details: 380*310*210mm, 18KG, Aluminum Box Package
Delivery Time: 5-8 Days
Payment Terms: T/T
Supply Ability: 1000 Unit per Month
Get Best Price Contact Now

Detail Information

Optical Geometry: D/8 Wavelength: 400-700nm
Repeatibility: DeltaE ≤ 0.08 Inter-instrument Error: DeltaE ≤ 0.4
Aperture: 8mm Sphere Size: 40mm
High Light:

400nm Color Difference Meter

,

Color Difference Meter 8mm Aperture

,

3nh TS7020 Spectrocolorimeter

Product Description

400nm Color Difference Meter 8mm Aperture 3nh TS7020

Color reader cr- 10 plus replaced by 3nh TS7020 spectrocolorimeter color test equipment with 8mm aperture
Product Description

TS7020 is 3nh using autonomous core technology research and development of A portable light color difference instrument, is the high level in spectral architecture color difference instrument, in addition to ensure accurate relative Δ E at the same time, also to ensure the accuracy of the absolute value of L, A and B for A long time, anytime, anywhere can pass the international standards and national standards of measurement. Using the built-in silicon photodiode array (double row 24) sensors, import the whiteboard, repetitive Δ E * ab easily control within 0.08, both measurement speed and convenience of operation, can connect PC quality management software, to achieve more extensions, 8 mm diameter meet plastic electronics, paint and ink, textile printing and dyeing, printing, such as the ceramic industry accurate color difference of production and the quality control.

Features

1. Φ 8 mm diameter measurement, 10 ° angle observer can meet most of the industry customer requirements;

2. Combination of full-spectrum LED light source, flat grating and true color capacitive touch screen, with a high starting point;

3. Silicon photodiode array (24 groups with double rows) sensor, display precision 0.1, storage 0.01, good repeatability;

4. The light source life is more than 3 million measurements in 5 years, and the lithium battery takes 6,000 measurements within 8 hours, which can be recharged repeatedly and has a long battery life;

5. Quick data search, analysis and comparison with 500 data storage samples and 10,000 samples.



Application:

With 8mm aperture, TS7020 spectroclorimeter is widely suitable for the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.


Model TS7020
Optical Geometry D/8(diffused illumination, 8-degree viewing angle)
SCI Mode
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source
Spectrophotometric Mode Flat Grating
Senso Silicon photodiode array (double row 24 groups)
Wavelength Range 400~700nm
Wavelength Interval /
Semiband Width 10nm
Measured Reflectance Range L:0~100; reflectivity:The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm)
Measuring Aperture Φ8mm
Specular Component SCI
Color Space CIE LAB,XYZ,Yxy,LCh
Color Difference Formula ΔE*ab,ΔE*00
Other Colorimetric Index /
Observer Angle 10°
Illuminant D65,A,F2(CWF)
Displayed Data Reflectivity (the user specifies the reflectivity at 3 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy Display 0.1, storage 0.01
Measuring Time About 1.5s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.08 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Stabilizer cross position
Dimension L*W*H=81X71X214mm
Weight About 460g
Battery Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB
Data Storage Standard 500 Pcs, Sample 10000 Pcs
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture
Optional Accessory USB Micro Printer, Powder Test Box
Notes Technical parameters are only for reference, subject to the actual sale of the product
Detailed Images

TS.jpg7036-57010-027036-8

Packaging & Shipping

Package: Alumnium alloy metal box, carton package.

Payment: T/T, Western Union, Paypal

Lead Time:1-3 workdays

Shipping: DHL, Fedex, UPS, EMS,TNT, etc





Technology

Color Space

CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.



Delta E Meaning
0~1 A normally invisible difference
1~2 ery small difference, only obvious to a trained eye
2~3.5 Medium difference, also obvious to an untrained eye
3.5~5 An obvious difference
>6 A very obvious difference

color space.webp.jpg

Certifications

ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES

CERTIFICATE 6



Our Services

1.24 hours online to ensure quick response to customers' inquiry or online message;

2. Help customers to choose the best suitable machine model;

3. We support OEM and ODM service and 12 months warranty from the purchase date.

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
