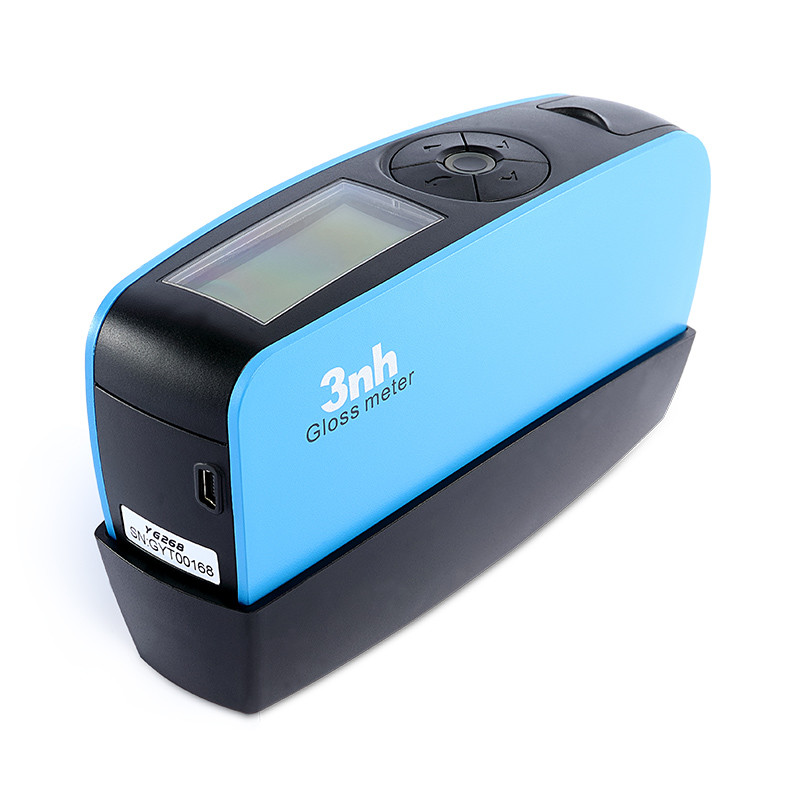

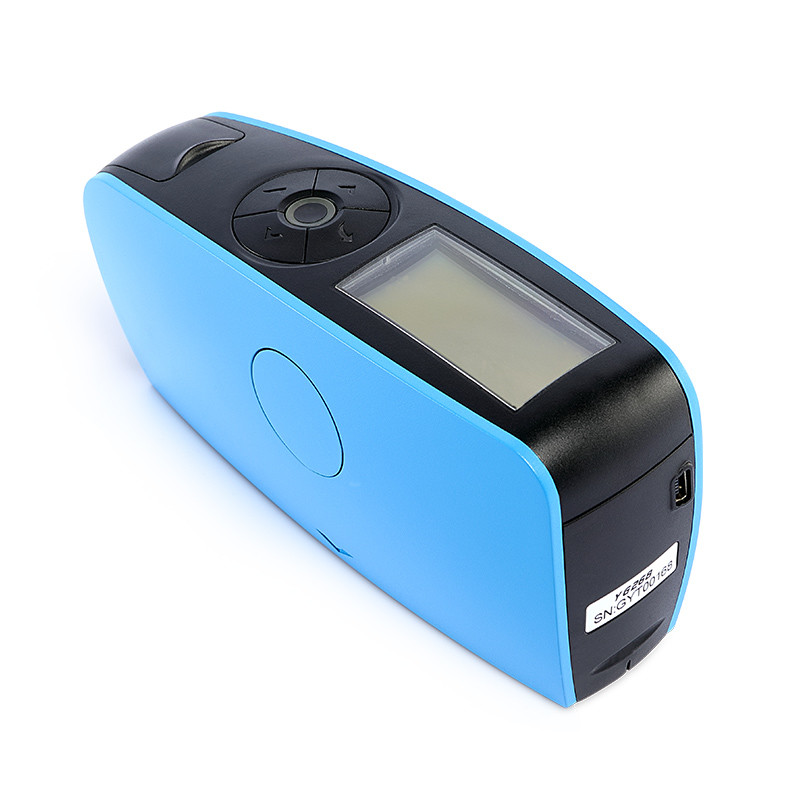

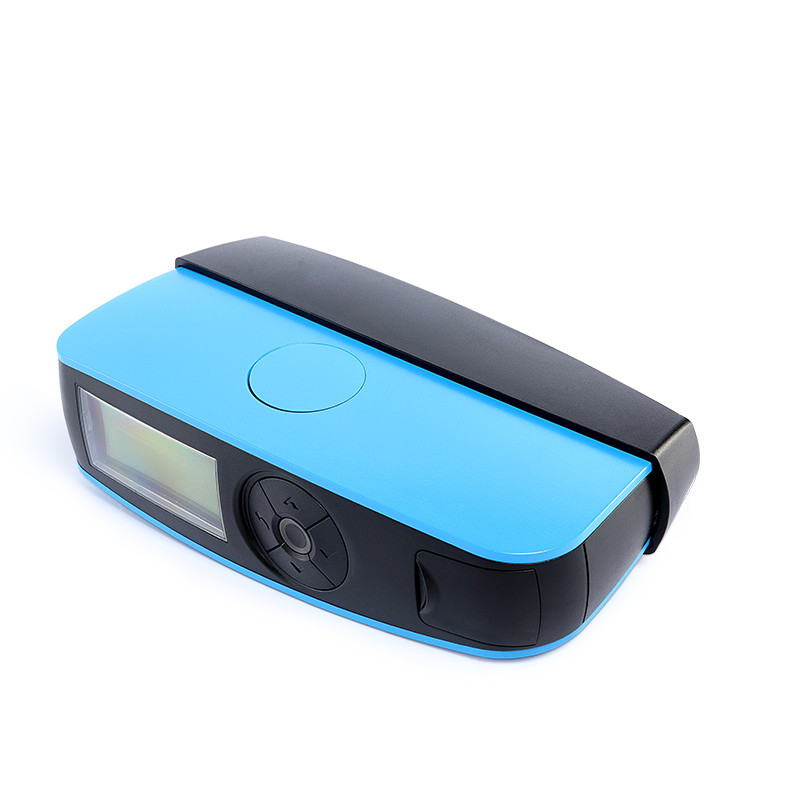

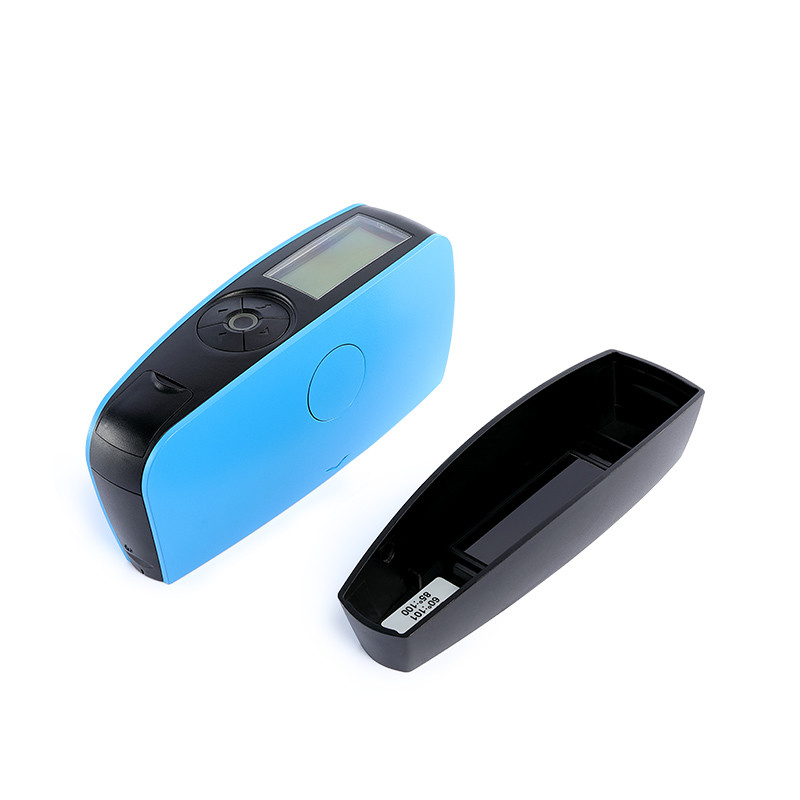

20 60 85 Angle YG268 2000gu 0.1gu 3nh Gloss Meter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeasuring Angle | 20° 60° 85° | Measuring Area(mm) | 20°: 9×10, 60°:9x15, 85°: 5×38 |
---|---|---|---|
Measuring Range(GU) | 0~2000 | Division Value | 0.1GU |
Tolerance | ±0.2, ±0.2% | Data Port | USB & Bluetooth |
High Light | 0.1gu 3nh Gloss Meter,85 Angle 3nh Gloss Meter,YG268 Tri Angle Gloss Meter |
3nh YG268 high gloss standard three angles Gloss Meter digital Ceramic Floor Marble Glossmeter
Technical Specification:
YG Series Specification Parameter | |||
Model | YG60S 60°Economic Gloss Meter | YG60 60°Accurate Gloss Meter | YG268 Tri-angle Gloss Meter |
Measuring Angle | 60° | 60° | 20° 60°85° |
Measuring Area | 60°: 0-200GU | 60° | 20°: 0-2000GU,60°: 0-1000GU,85°: 0-160GU |
Division Value | 1GU | 0.1GU | |
Measuring Modes | Basic mode | Basic mode; Statistic mode; Continuous mode; QC mode | |
Measuring Time | 0.5S | ||
Repeatability | 0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
Accurate | Conform with JJG696 second grade requirements of gloss meter | Conform with JJG696 first grade requirements of gloss meter | |
Auto Power-off Time | 30s | Within 30s-120s | |
Long-time Calibration | / | Automatically check and made the calibration | |
Language | Chinese & English | ||
Storage | / | 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) | |
Display | 2.3 inch white and black screen | ||
Size | 160*52*84mm | ||
Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge | ||
Weight | About 300g | ||
Interface | USB | USB & Bluetooth 2.1 version | |
PC Software | / | GQC6 QC software can printing testing report and with more extended functions | |
Operation Temperature Range | 0-40℃(32-104° F) | ||
Storage Temperature Range | -20-50℃(-4-122° F) | ||
Humidity Range | < 85% RH, without condensation | ||
Standard Accessories | User manual, calibration plate | USB cable, user manual, calibration plate, QC software | |
Optional Accessories | Miniature printer | ||
Notification: the technical parameter is only for reference |
Product Details :
1.Elegant Design combined with aesthetics and ergonomics;
2.With auto-calibration function;
3.Meet the first grade requirements of JJG696;
4.Large storage to save over 35000 data;
5.Auto Power-off within optional 30-120 seconds;
6.Comply to ISO2813,ASTM523, GB/T9754;
7.With PC software for quality report, more extend functions;
8.With multi working modes and multi-functions for most customers’ requirements.
