Plastic ISO2813 2000Gu Stainless Steel Gloss Meter 3nh Yg268
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Angle | 20° 60° 85° | Measuring Area(mm) | 20°: 9×10, 60°:9x15, 85°: 5×38 |
|---|---|---|---|
| Measuring Range(GU) | 0~2000 | Division Value | 0.1GU |
| Tolerance | ±0.2, ±0.2% | Data Port | USB & Bluetooth |
| High Light | 2000Gu Stainless Steel Gloss Meter,ISO2813 Stainless Steel Gloss Meter,3nh Yg268 Gloss Meter |
||
Product Description

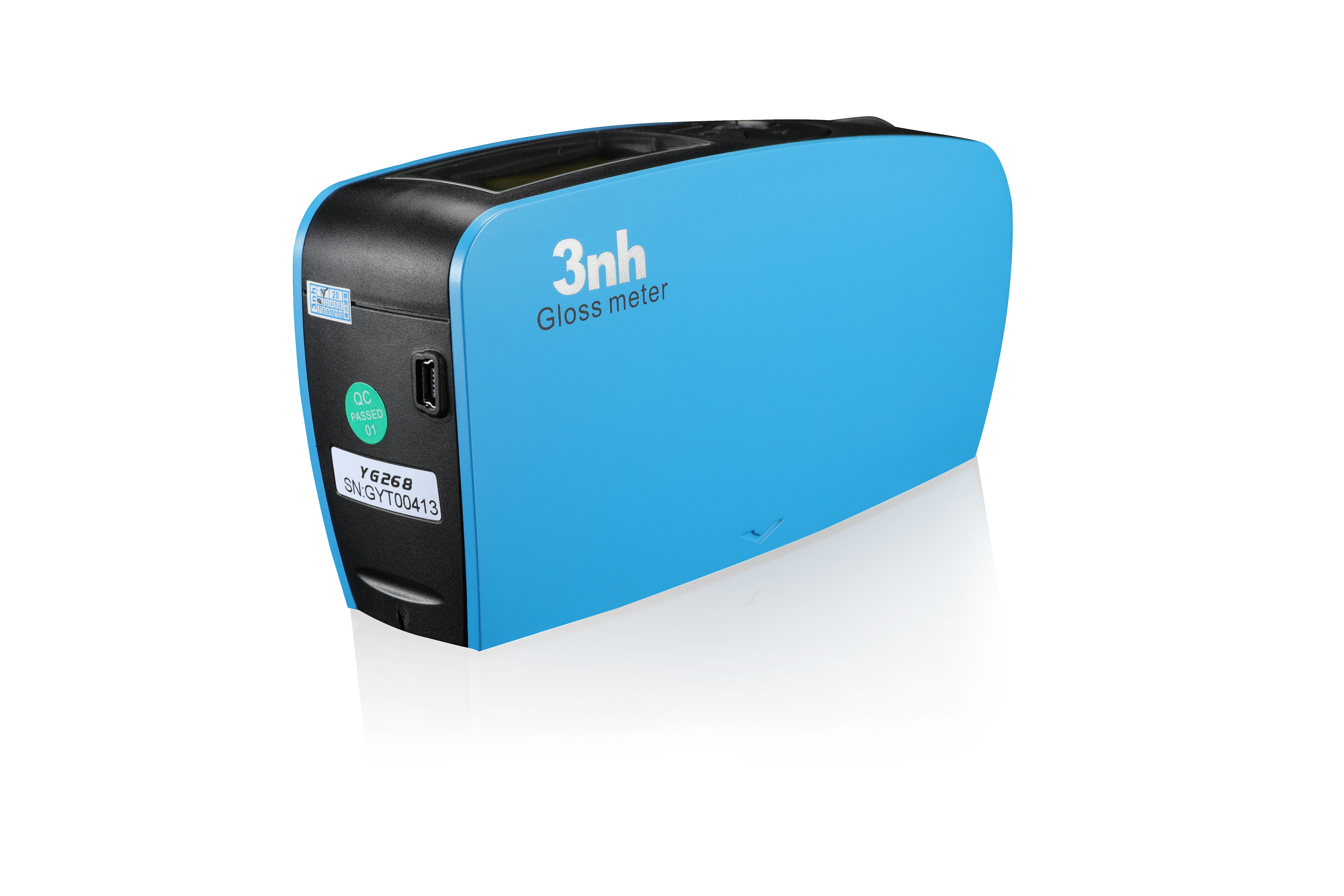

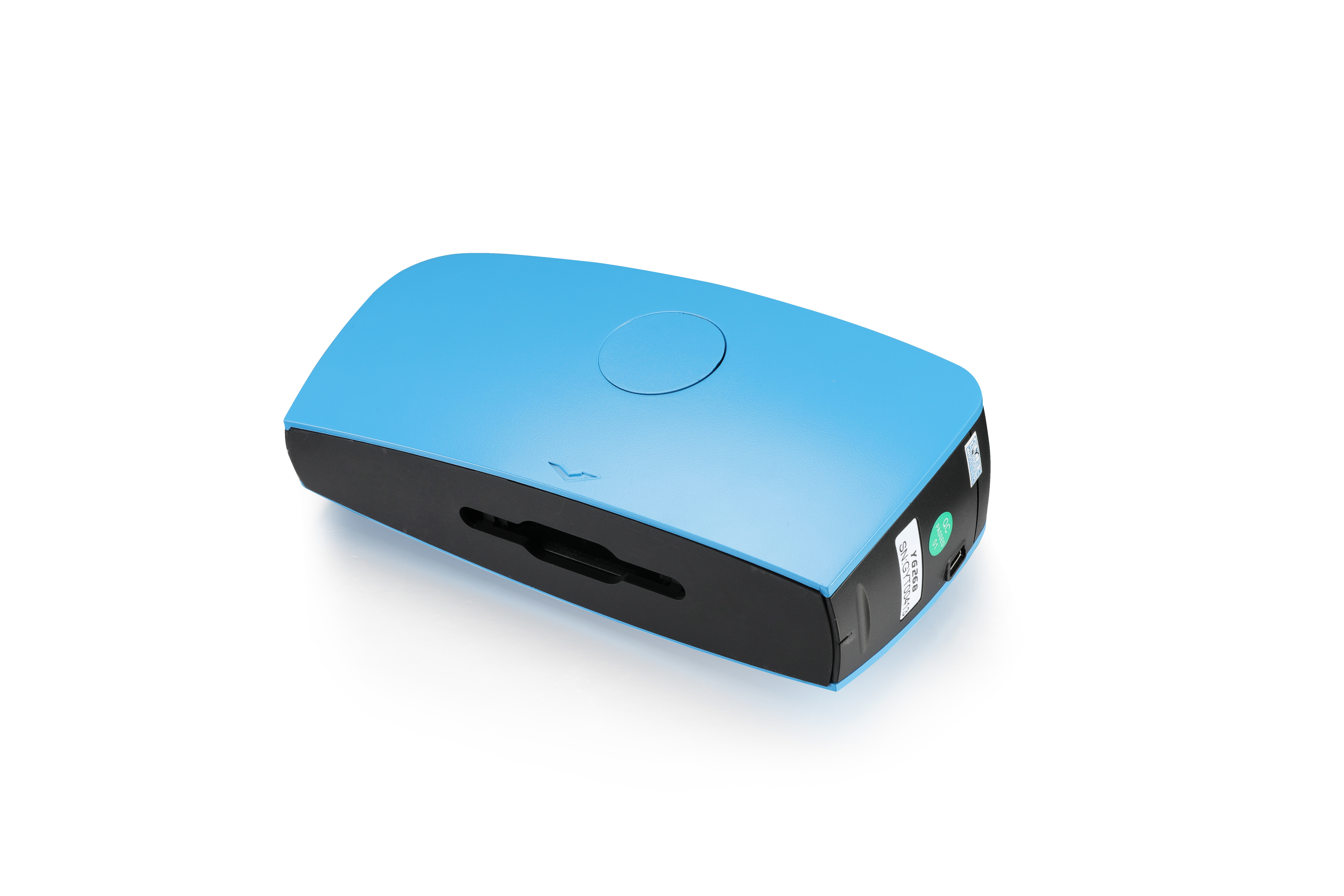

3nh yg268 stanliess Steel glossmeter plastic three angle gloss meter with 2000 gu range
Technical Specification
| Parameters | Tri-angle Gloss Meter YG268 |
| Measuring Angle |
20° & 60° & 85° Comply with Standard ISO2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 20°: 9×10mm, 60°: 9x15mm, 85°: 5×38mm |
| Measuring Range | 20°: 0~2000GU, 60°:0~1000GU, 85°: 0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability | 0-100GU 100-2000GU ± 0.2GU ± 0.2%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±0.2, ±0.2% |
| Measuring Time | 0.1s |
| Display Size | TFT 2.3" |
| Data Port | USB |
| Language | Chinese, English |
| Battery | 1pcs of No.5 dry cell battery more than 10000 times (within 8 hours) |
| Dimension | 160*52*84mm |
| Weight | 350g |
| Measuring Mode&Storage |
Basic Mode and Continuous Mode: 15000 Statistical Mode: 10000 QA Mode: 10000 |
| PC Software | GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate |
| Optional Accessories | Mini Printer |
Brief Introduction
Frequently Asked Questions
1. Which models are the equivalent models to YG268 Gloss Meter?
Answer: Our YG268 gloss meter is equivalent to BYK4563 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
