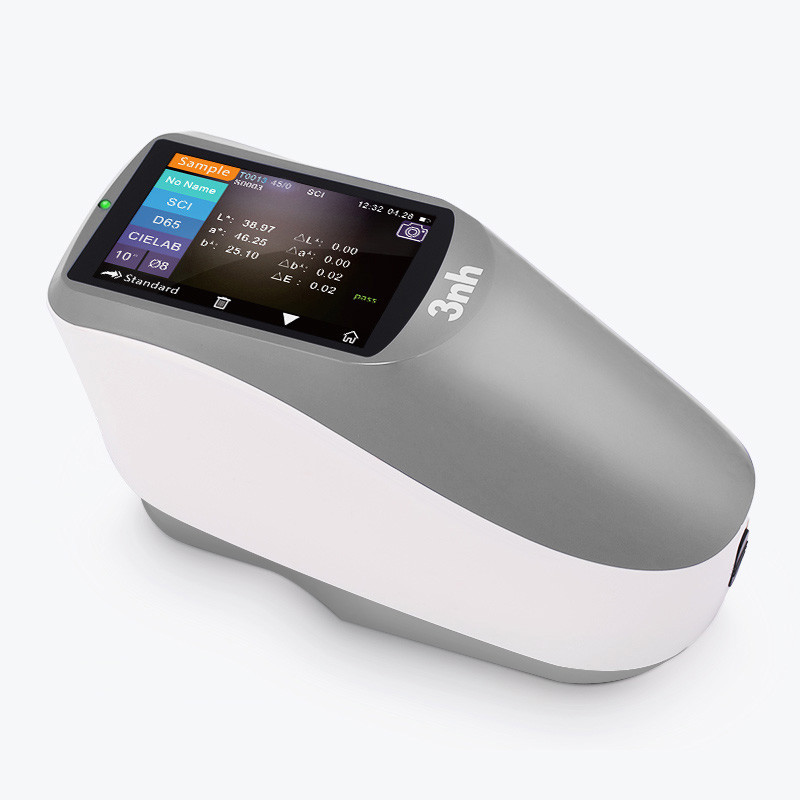

20mm SCE portable Colour Spectrophotometer 3nh YS4580

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number YS4580
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 45/0(45 Ring-shaped Illumination, Vertical Viewing) SCE/SCI SCE & SCI
Other Colorimetric Index WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, Repeatibility ΔE*≤0.04
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB Measuring Aperture Φ20mm
High Light

SCE Portable Colour Spectrophotometer

,

20mm Portable Colour Spectrophotometer

,

3nh YS4580 Spectrophotometer

Leave a Message
Product Description

20mm SCE portable Colour Spectrophotometer 3nh YS4580



YS4580 spectrophotometer uses 45/0 (45 degree ring illumination, 0 degree reception) geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; Equipped with a large measuring aperture of Φ20 mm for traffic signs, color matching, precise color transfer;Built-in GB2893, GB/T18833 standard color, can be manually customized polygonal rectangle tolerance, one button to realize the measurement of traffic road signs, marking lines, reflective film brightness factor and chromaticity coordinates. For uneven sample with stripes or granular samples, the instrument has high accuracy and high stability.


PRODUCT FEATURES
1. Beautiful appearance and perfect combination with ergonomic structure design;
2.45/0 geometric optical structure, in accordance with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833;
3. Adopt high-life and low-power combined LED light source, including UV/excluding UV;
4.Φ20mm aperture adapt to larger samples or uneven samples;
5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
6. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS detector, etc.;
7.USB/Bluetooth 4.0 (compatible with 2.1) dual communication mode, more adaptable;
8.Super stain-resistant and stable standard white calibration plate;
9. Large-capacity storage space, can store more than 30,000 test data;
10. Two standard observers, multiple light source modes, multiple color systems, and a variety of standard colorimetric indicators to meet the needs of various customers for color measurement;
11. PC software has powerful function extensions;
12.Built-in standard polygon tolerance setting and specific traffic sign gamut, especially suitable for traffic signage brightness factor and chromaticity performance judgment;



YS4580 45/0 Grating Spectrophotometer with 20mm Aperture for Traffic Signs
45/0 Grating Spectrophotometer
Model YS4580 45/0 Grating Spectrophotometer with 20mm Aperture
Illumination/Observation system 45/0(45 ring-shaped illumination, vertical viewing);
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features 20mm aperture special design for traffic signs , It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
It is used for accurate analysis and transmission of laboratory color, also for Fluorescence sample color measurement .

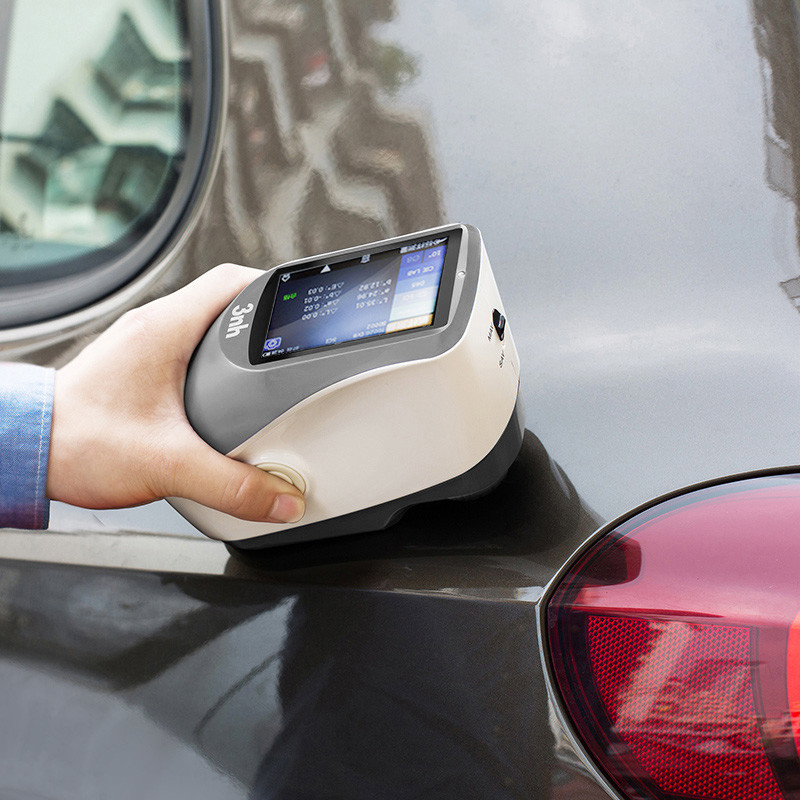

Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size Φ48mm
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture Φ20mm
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 4.0
Data memory Standard 1000 Pcs, Sample 30000 Pcs
Language Chinese,English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation))
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.



Frequently Asked Questions

1. Which models are the equivalent models to YS4580?
Answer: BYK 6801 Spectro is the equivalent models to 3nh YS4580 (About color measurement function).
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
