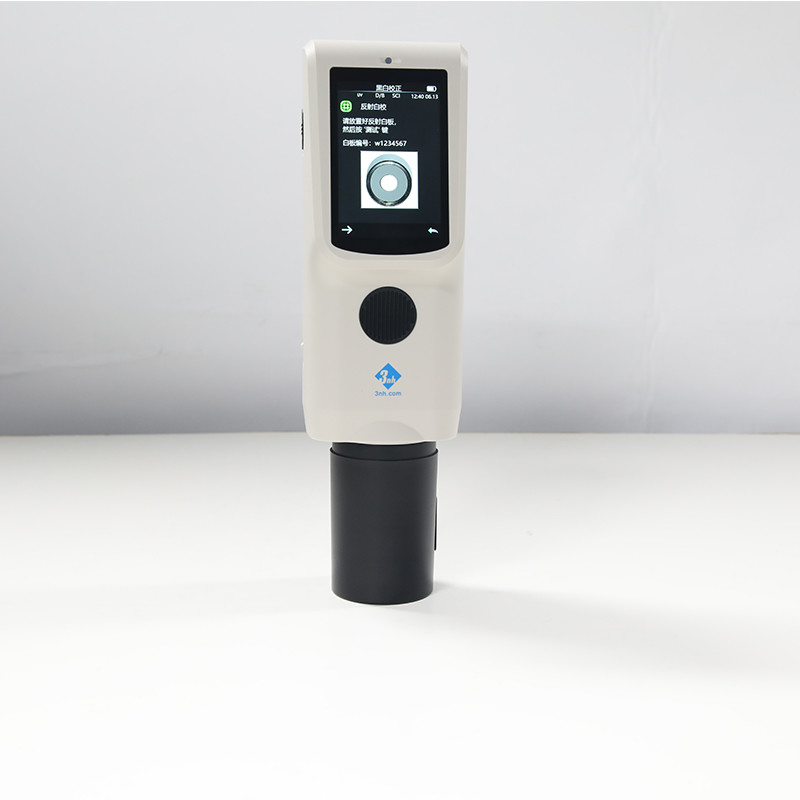

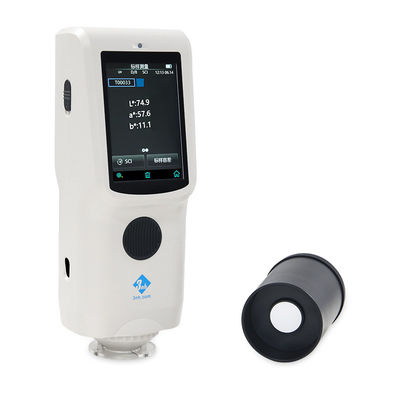

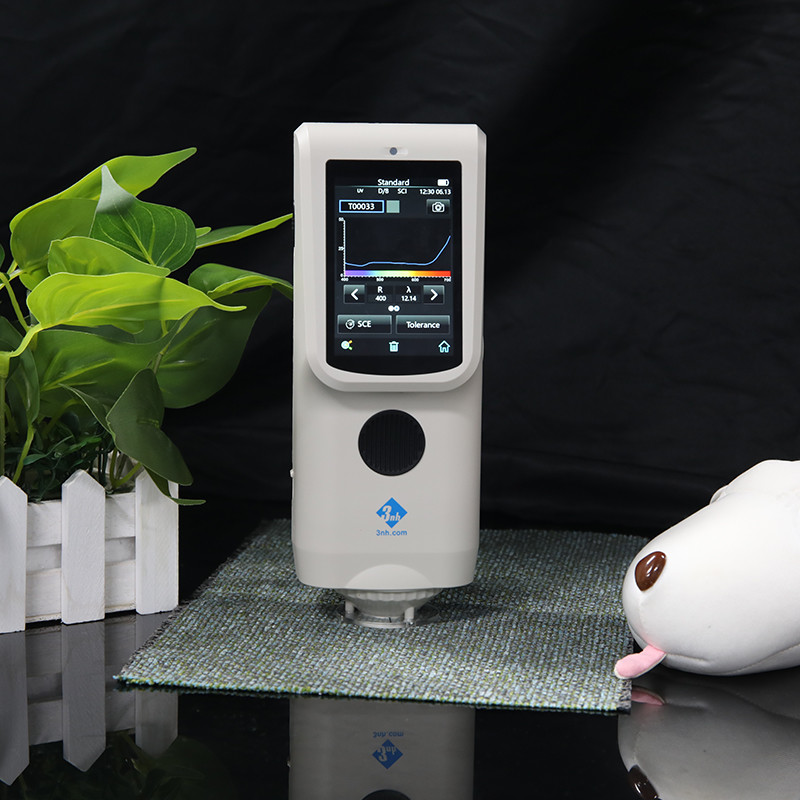

700nm SCE Plastic Industries Spectrophotometer 3nh TS7036

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RoHS
Model Number TS7036
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 380*310*210mm, 18KG, Aluminum Box Package
Delivery Time 5-8 Days
Payment Terms T/T
Supply Ability 1000 Unit per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry D/8 Wavelength 400-700nm
Repeatibility DeltaE ≤ 0.05 Inter-instrument Error DeltaE ≤ 0.3
Aperture 8mm & 4mm Sphere Size 40mm
High Light

SCE Plastic Industries Spectrophotometer

,

700nm Plastic Industries Spectrophotometer

,

3nh TS7036 Textiles Spectrophotometer

Leave a Message
Product Description
Specification
Model
TS7036
Optical Geometry
D/8(diffused illumination, 8-degree viewing angle)
SCI/SCE Mode
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic
double apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and
ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere Size
Φ40mm
Light Source
Combined full spectrum LED light source, UV light source
Spectrophotometric Mode
Flat Grating
Senso
Silicon photodiode array (double row 32 groups)
Wavelength Range
400~700nm
Wavelength Interval
10nm
Semiband Width
10nm
Measured Reflectance Range
L:0~120; reflectivity:0~200%
Measuring Aperture
Dual Apertures:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component
SCI/SCE
Color Space
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)
Color Difference Formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99
Other Colorimetric Index
WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search
Observer Angle
2°/10°
Illuminant
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy
0.01
Measuring Time
About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability
Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after
white calibration)
Inter-instrument Error
MAV/SCI, Within ΔE*ab 0.3
(Average for 12 BCRA Series II color tiles)
Measurement Mode
Single Measurement, Average Measurement(2-99times)
Locating Method
Camera Locating,stabilizer cross position
Dimension
L*W*H=81X71X214mm
Weight
About 460g
Battery
Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span
5 years, more than 3 million times measurements
Display
3.5-inch TFT color LCD, Capacitive Touch Screen

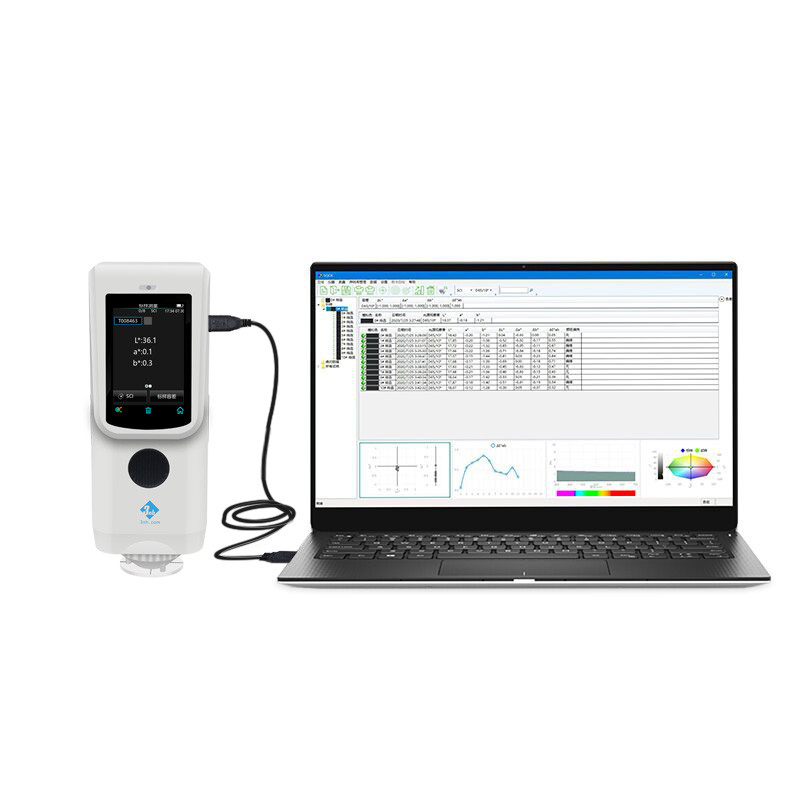

Data Port
USB,Bluetooth 5.0
Data Storage
Standard 1000 Pcs, Sample 30000 Pcs(One data is able to include SCI/SCE)
Language
Simplified Chinese, English, Traditional Chinese
Operating Environment
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment
-20~50℃, 0~85%RH (no condensing)
Standard Accessory
Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective

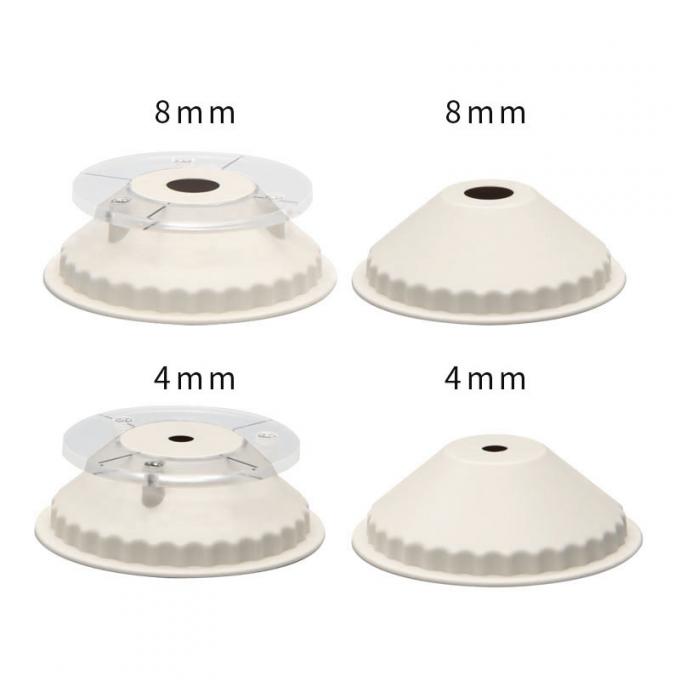

Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture
Optional Accessory
USB Micro Printer, Powder Test Box,Bluetooth Micro Printer
Notes
Technical parameters are only for reference, subject to the actual sale of the product
