SCI 8mm Aperture Chromatic Testing Colorimeter 3nh TS7010 For Powder

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RoHS
Model Number TS7010
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 380*310*210mm, 18KG, Aluminum Box Package
Delivery Time 5-8 Days
Payment Terms T/T
Supply Ability 1000 Unit per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry D/8 Wavelength 400-700nm
Repeatibility DeltaE ≤ 0.05 Inter-instrument Error DeltaE ≤ 0.3
Aperture 8mm & 4mm Sphere Size 40mm
High Light

SCI Chromatic Testing Colorimeter

,

8mm Aperture Chromatic Testing Colorimeter

,

3nh TS7010 Powder Spectrophotometer

Leave a Message
Product Description

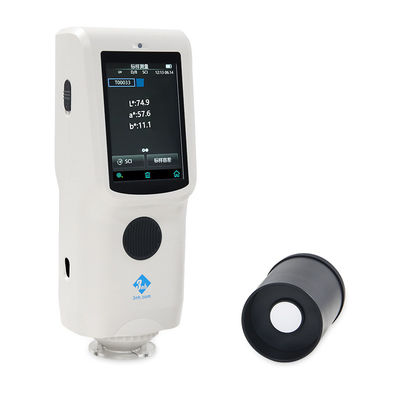

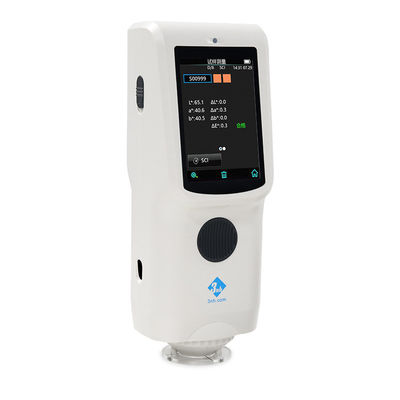

TS7010 spectrocolorimeter

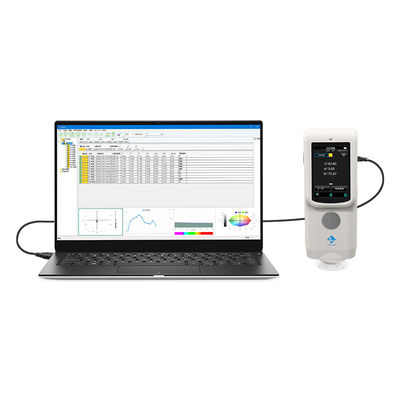

TS7010 is a new portable spectrocolorimeter with 3nh own core research and development technology. It is the high level colorimeter in spectral architecture. In addition to ensure accurate relative ΔE at the same time, it is also to ensure the accuracy of the absolute value of L, A and B for a long time. And it can pass the international standards and national standards of calibration any time any where. Using built-in silicon photodiode array (double row group 24) sensors, imported whiteboard, repeatability ΔE * ab is easily controlled within 0.1. The measurement speed and convenience of the operation makes it easy to use. TS7010 spectrocolorimeter can all quickly judge color difference measurement when connecting to PC software or not. With powerful functions and 8 mm aperture, it meets the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.
Features
1. Φ 8 mm diameter measurement, 10 ° angle observer can meet most of the industry customer requirements;

2. Combination of full-spectrum LED light source, flat grating and true color capacitive touch screen, with a high starting point;

3. Silicon photodiode array (24 groups with double rows) sensor, display precision 0.1, good repeatability;

4. The light source life is more than 3 million measurements in 5 years, and the lithium battery takes 6,000 measurements within 8 hours, which can be recharged repeatedly and has a long battery life;

5. Quick data search, analysis and comparison with 500 data storage samples and 10,000 samples.
Application:
With 8mm aperture, TS7010 spectroclorimeter is widely suitable for the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.
Technical Advantages:
1. Ergonomic design and easy measuring device
TS7010 spectrocolorimeter has a beautiful, smooth shape and comfortable grip, in line with the structure design of human mechanics, fit the palm for continuous testing, so that you can use it quickly and easily. An automatic measuring device is added, which is portable, quick and easy to measure.
2. Adopt full waveband balanced LED light source
The full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband, and ensures the measurement speed and accuracy of the measurement results.
3. Silicon photodiode array sensor (24 groups with double rows)
The dual-24 array sensor with larger area has strong light but not saturate, higher sensitivity of low light and wider spectral response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument.
4. Calirbation Certificate
Each TS7010 spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.
5. ETC real-time calibration technology
TS7010 spectrophotometer adopts imported standard white board, which is resistant to yelloping and dirt infiltration and can be wiped, ensuring the long-term accuracy of the instrument. An innovative ETC real-time Calibration technique is also used, with a built-in standard white board into the optical system, which is reliably accurate and repeatable for each Test.

Specifications:

ModelTS7010
Optical GeometryD/8(diffused illumination, 8-degree viewing angle)
SCI Mode
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
CharacteristicΦ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere SizeΦ40mm
Light SourceCombined full spectrum LED light source
Spectrophotometric ModeFlat Grating
SensoSilicon photodiode array (double row 24 groups)
Wavelength Range400~700nm
Wavelength Interval/
Semiband Width10nm
Measured Reflectance RangeL:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelength specified by the user (default: 550nm)
Measuring ApertureΦ8mm
Specular ComponentSCI
Color SpaceCIE LAB,XYZ,Yxy,LCh
Color Difference FormulaΔE*ab,ΔE*00
Other Colorimetric Index/
Observer Angle10°
IlluminantD65,A,F2(CWF)
Displayed DataReflectivity (the user specifies the reflectivity at 1 specific wavelength), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy0.1
Measuring TimeAbout 1.5s
RepeatabilityChromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument ErrorMAV/SCI, Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles)
Measurement ModeSingle Measurement, Average Measurement(2-99times)
Locating MethodStabilizer cross position
DimensionL*W*H=81X71X214mm
WeightAbout 460g
BatteryLi-ion battery, 6000 measurements within 8 hours
Illuminant Life Span5 years, more than 3 million times measurements
Display3.5-inch TFT color LCD, Capacitive Touch Screen
Data PortUSB
Data StorageStandard 500 Pcs, Sample 10000 Pcs
LanguageSimplified Chinese, English, Traditional Chinese
Operating Environment0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment-20~50℃, 0~85%RH (no condensing)
Standard AccessoryPower Adapter, USB Cable, User Guide, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture
Optional AccessoryUSB Micro Printer, Powder Test Box
NotesTechnical parameters are only for reference, subject to the actual sale of the product

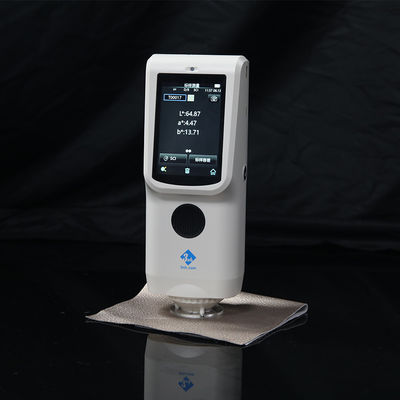

TS7010 spectrocolorimeter
