3NH YD5050 Cmyk Color Densitometer For Printing Package

3NH YD5050 Cmyk Color Densitometer For Printing Package

Product Details:

Place of Origin: China
Brand Name: 3nh
Certification: CE&RoHS&TUV&FCC&ISO9001
Model Number: YD5050

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD3000/PC
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T
Supply Ability: 1000PCS/MONTH
Get Best Price Contact Now

Detail Information

Measurement Geometry: 45/0 Spectral Separation Device: Concave Grating
Detector: 256 Image Element Double Array CMOS Image Sensor Wavelength Range: 400-700nm
Density Standards: ISO Status A, E, I, T Color Spaces: CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Size(L*W*H): 184*77*105mm
High Light:

Printing Package Cmyk Color Densitometer

,

Concave Grating Cmyk Color Densitometer

,

3NH YD5050 Handheld Spectrophotometer

Product Description

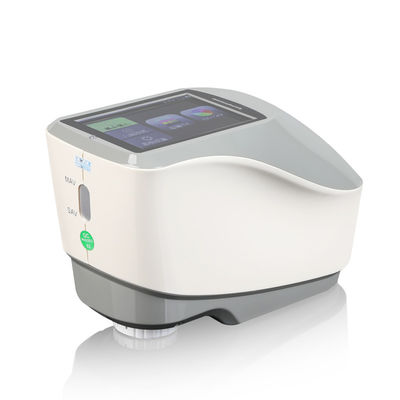

3NH YD5050 Cmyk Color Densitometer For Printing Package

Product Description

3NH YD5050 cmyk color densitometer portable spectrodensitometer with 45/0 for Printing Package Industry



YD5050 portable spectro-densitometer is a high-end precise instrument for the measurement of printing optical density and colors, which is designed to be applied in industries like printing, packaging and ink, film process, etc.



YD5050 advanced spectro densitometer is ideal for ink rooms, quality control labs, and print and packaing manufacturing facilities with the hight standards.



YD5050 can measure the color of ink and paper before, during and after print production to ensure color stays on target.

Grating Spectrophotometer Densitometer
Model YD5050 Spectrophotometer Densitometer
Measurement Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle);, ISO 5-4,CIE No.15
Features high accuracy spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture 2mm,4mm,8mm.
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Measurement Conditions Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density Standards ISO Status A, E, I, T
Density index Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray scale, density scanning
Measurement aperture Customized one aperture:2mm,4mm,8mm optional
Color Spaces CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
MI (Metamerism Index),Opacity,
Observer Angle 2°/10°
Illuminants D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Measurement Time About 1.5s
Repeatability Density: Within 0.01 D
Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 4.0
Data memory 20000 pcs
Language
Simplified Chinese, English, Traditional Chinese
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover.Polarization filter box
Optional Accessory Micro Printer,Locating Plate
Notes: The specifications are subject to change without notice.



Detailed Images

YD50

1 (3)-7-1





Comparasion with Other brands



For color and glossy measurement, there are three famous companes, Xrite from USA, Konimica Minolta from Japan, BYK from German, but now we, 3nh, are also famous all over the world. With our own R&D team, we focus on color for 21 years, and we have many models to compare with X-rite Konica Minolta BYK Machines.



All in all, First,at the some level, the price for our machine is much lower but performance is similar even better when compare withe Minolta,X-rite and BYK’s instrument; Second, for our partner, we normally give 2 years warranty; Third, if there are something wrong with 3nh machine, within the warranty, the repair fee is free while without the warranty, we only charge some cost price for it, less than RMB1000.But for Minolta,X-rite, BYK, the repair fee normally much than USD1000. And we 3nh offer the lifespan maintenance for all customers. Welcome customers all over the world to visit and order 3nh products in Shenzhen, China.



Application

3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

color application

Certifications

ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES

CERTIFICATE 6

Technology

Color Space

CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.



Delta E Meaning
0~1 A normally invisible difference
1~2 ery small difference, only obvious to a trained eye
2~3.5 Medium difference, also obvious to an untrained eye
3.5~5 An obvious difference
>6 A very obvious difference

color space.webp.jpg

FAQ



Frequently Asked Questions


1. Can the YS4560 spectrophotometer be equivalent to any models of world famous brands?
Answer: Yes, our YS3060 is equivalent to the color measurement function of BYK 6801.


2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!



3. What's your main market?
Answer: We sell to the global market.



4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.



5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.



6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
