AC220V TILO Color Rendition Test Chart Sineimage YE0214
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Standard | ISO12233: 2014 | Category | Reflective |
---|---|---|---|
Ratio | 4:3/16:9 | Size | 1X,2X,4X |
Name | Camera Resolution Chart , Camera Lens Test Chart | ||
High Light | TILO Color Rendition Test Chart,AC220V Color Rendition Test Chart |
Product Description
Sineimage YE0214 Color Rendition Test Chart
Brand: | Sine Image | Model: | YE0214 |
Size: | 280*210mm 240*180mm Can Be Customized |
Material: | HD photographic paper / Film |
Ratio: | 4:3 / 16:9 | Type: | Reflective/ Transmissive |

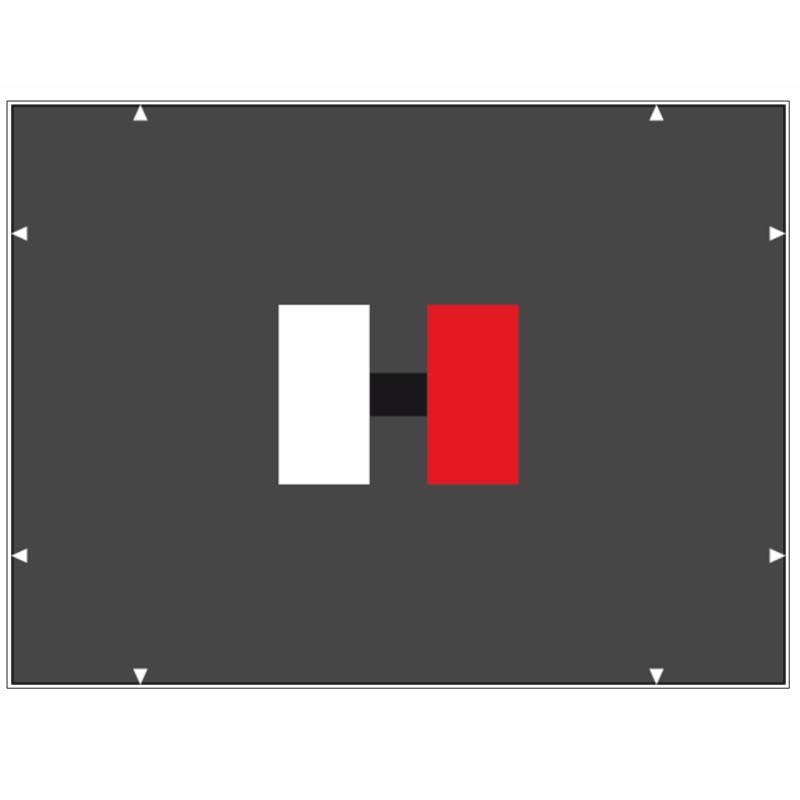

The YE0214 color rendition test chart is designed for assessment of the color rendition of electronic cameras.
The test chart consists of
• a neutral gray background of 18% remission
• a white field of 89.9% remission
• a black field (Super Black Hole) with a remission of < 0.5%
• a second black field, where color patterns may be applied alternatively
For the color pattern we supply 15 small plastic plates which are covered with self-adhesive foil on one side.Individual color patterns can be put easily on these plates. The self-adhesive foil is designed for manual use and its structure allows blisters that may occur to be removed by smoothing out. We ecommend to cover the color pattern with a protective paper. The color pattern should be mounted on only that part of the plate, where the foil is. Colormetric measurement should be effected after mounting. The plastic plates with color patters can be fixed on the test chart with the clamp.
Model | CC5100/CC3100 |
Light source: | 5100K(5100K±200k) *4,3100K(3100K±200k) *4 |
Uniformity: | >95% |
Luminous Source: | 100 ~ 4400cd/m2 adjustable |
Illuminance: | 250 ~ 10000Lux adjustable |
Power supply: | AC230V 50/60HZ |
Lighting method: | High Frequency lighting method 20KHz |
Operating temperature: | 10~40℃ |
Operating humidity: | Below 80%(avoid dew) |
Major diameter dimension: | 38.5W*34H*15Dcm |
Luminance plane dimension: | 25W*19Hcm |
3nh standard camera color viewer transmission light box is to provide special lighting environment and high illumination uniformity, light continuous adjustable, etc functions. They are
suitable for 4:3 transmission test chart.
Reflective
Picture size WxH (mm) | ||
4:3 | 16:9 | |
A240 | 240x180 | 240*135 |
A280 | 280x210 | 280x157.5 |
Picture size WxH (mm) | ||
4:3 | 16:9 | |
D240 | 240x180 | 240*135 |
D280 | 280x210 | 280x157.5 |
D240 | D280 |
HC5100/HC3100 CC5100/CC3100 |
T259000 high illumination light box |
