1200 Lines HD Sweep Test Chart Sineimage YE0231 For HDTV Cameras
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Standard | ISO12233: 2014 | Category | Reflective |
---|---|---|---|
Ratio | 4:3/16:9 | Size | 1X,2X,4X |
Name | Camera Resolution Chart , Camera Lens Test Chart | ||
High Light | HDTV Cameras Sweep Test Chart,1200 Lines HD Sweep Test Chart,RoHS Reflective Camera Test Chart |
Product Description
Sineimage YE0231 HD Sweep Test Chart for HDTV cameras
Brand: | Sine Image | Model: | YE0231 |
Size: | 280*210mm 240*180mm Can Be Customized |
Material: | HD photographic paper / Film |
Ratio: | 4:3 / 16:9 | Type: | Reflective/ Transmissive |
The YE0231 is designed for checking the frequency response of HDTV cameras.

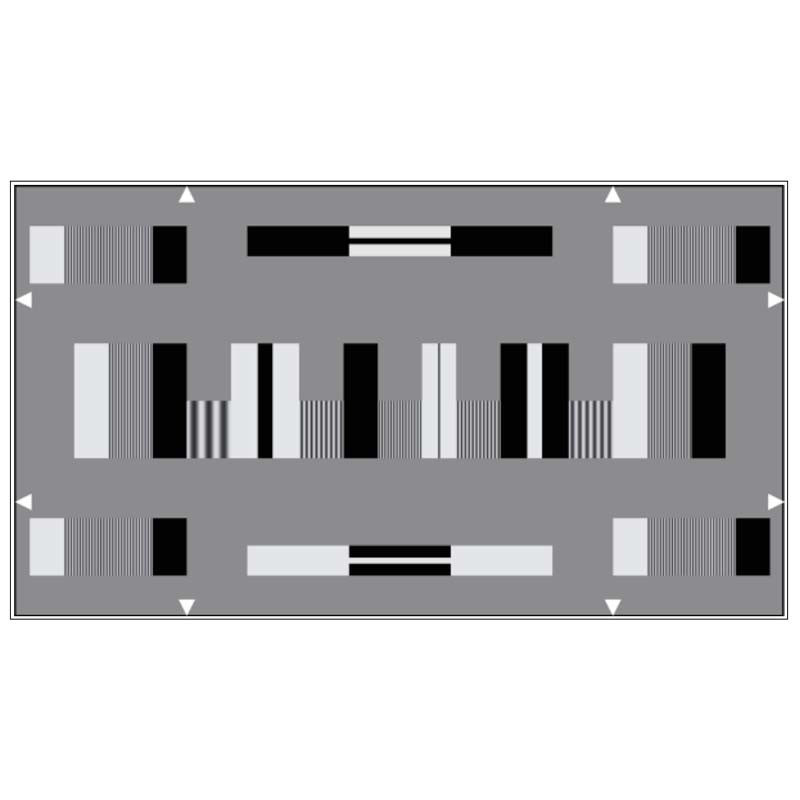

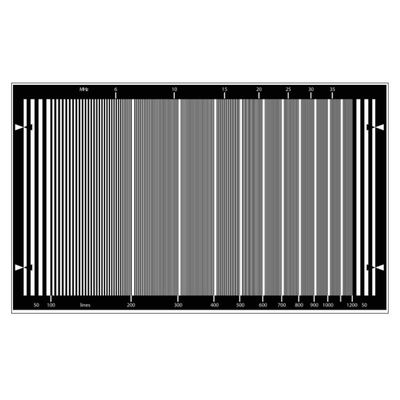

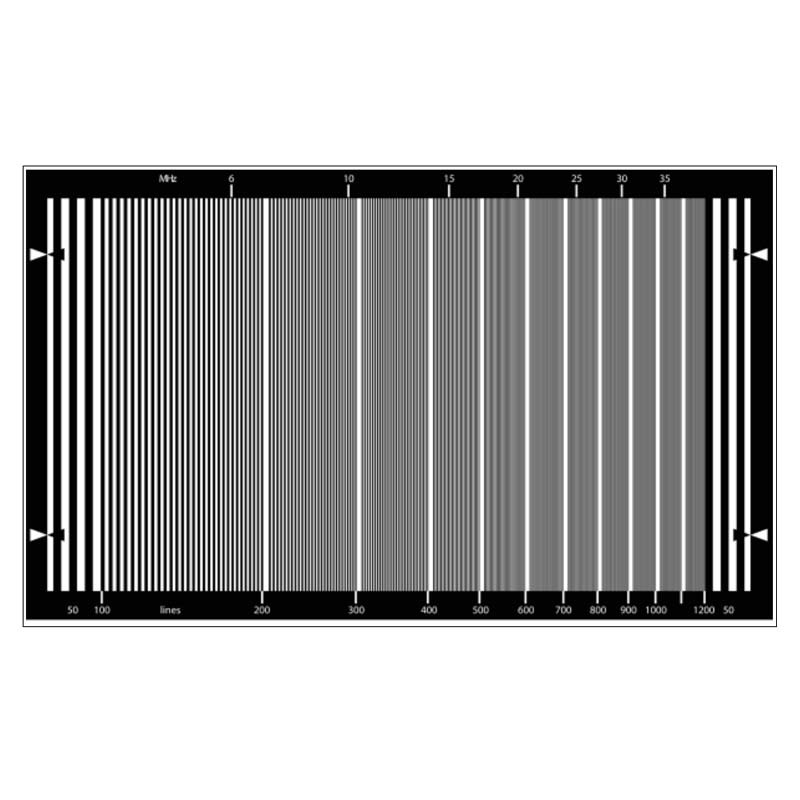

The test chart shows vertical lines over the whole image area ranging from 100 to 1200 lines.The bars on the left and right sides of the picture (3 black and white cycles on the left and two on the right side) have a frequency of 50 lines and serve as references.
Below the line rasters (in the black surrounding area) there are line markings with the respective line figures. In addition to this markings there is a visible gap in the sweep to give a better distinction in oscilloscope.
The width of the line rasters decreases step by step, however not within the reference cycles. The frequency increases by 3.5 lines at each step.
Above the line rasters in the black surrounding area there are additional markings in MHz. The MHz are related to the 1080 system.
With the help of an oscilloscope the frequency response of a camera can be checked.
Model | CC5100/CC3100 |
Light source: | 5100K(5100K±200k) *4,3100K(3100K±200k) *4 |
Uniformity: | >95% |
Luminous Source: | 100 ~ 4400cd/m2 adjustable |
Illuminance: | 250 ~ 10000Lux adjustable |
Power supply: | AC230V 50/60HZ |
Lighting method: | High Frequency lighting method 20KHz |
Operating temperature: | 10~40℃ |
Operating humidity: | Below 80%(avoid dew) |
Major diameter dimension: | 38.5W*34H*15Dcm |
Luminance plane dimension: | 25W*19Hcm |
3nh standard camera color viewer transmission light box is to provide special lighting environment and high illumination uniformity, light continuous adjustable, etc functions. They are
suitable for 4:3 transmission test chart.
Reflective
Picture size WxH (mm) | ||
4:3 | 16:9 | |
A240 | 240x180 | 240*135 |
A280 | 280x210 | 280x157.5 |
Picture size WxH (mm) | ||
4:3 | 16:9 | |
D240 | 240x180 | 240*135 |
D280 | 280x210 | 280x157.5 |
D240 | D280 |
HC5100/HC3100 CC5100/CC3100 |
T259000 high illumination light box |
