Digital ASTM ISO13468 Haze Meter Horizontal Plastic Film 3nh YH1210

  • Digital ASTM ISO13468 Haze Meter Horizontal Plastic Film 3nh YH1210
  • Digital ASTM ISO13468 Haze Meter Horizontal Plastic Film 3nh YH1210
  • Digital ASTM ISO13468 Haze Meter Horizontal Plastic Film 3nh YH1210
  • Digital ASTM ISO13468 Haze Meter Horizontal Plastic Film 3nh YH1210
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number YH1210
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 0/d Integrating Sphere Size Φ 154 Mm
Light Splitting Mode / Repeatibility ΔE*≤0.1
Inter-instrument Agreement ΔE*≤0.4 Measuring Aperture Φ20 Mm/Φ15 Mm/Φ8 Mm/Φ4 Mm (select Single Aperture)
High Light

ASTM Haze Meter

,

ISO13468 Haze Meter

,

3nh YH1210 Haze Transmittance Meter
Leave a Message
Product Description

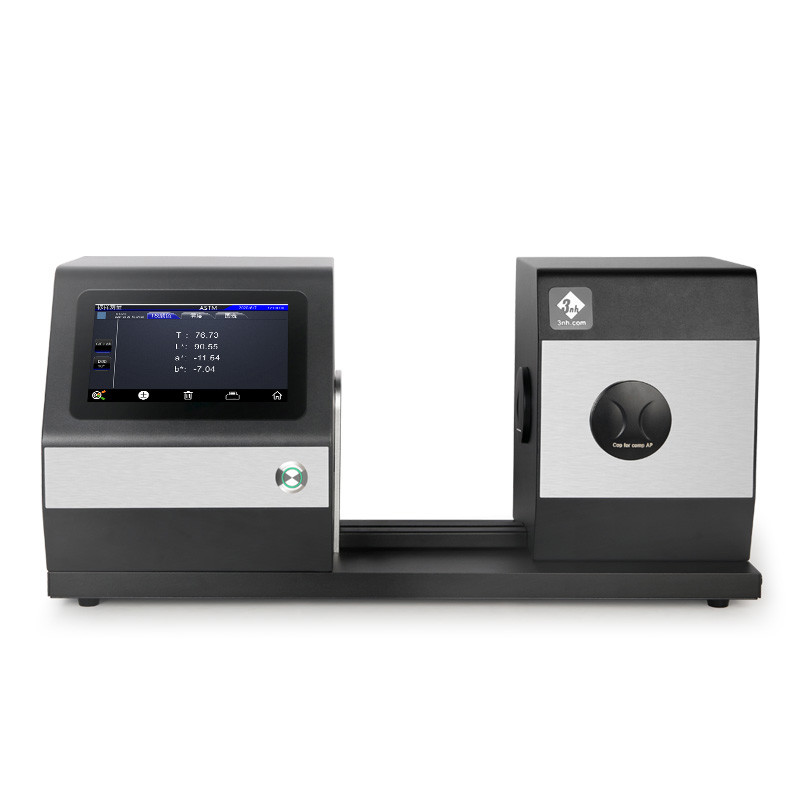

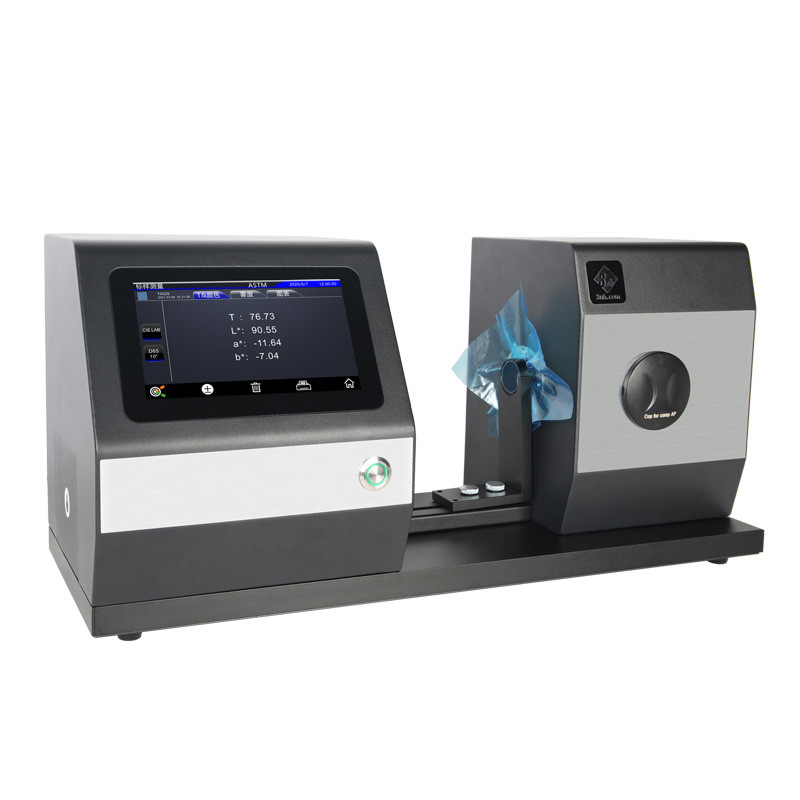

3nh YH1210 Horizontal Type Haze Meter

3nh YH1210 Haze Meter can easily realize ASTM D1003 non-compensation method, ISO 13468 compensation method, full light transmittance, fog test. Open sample chamber can be vertical, horizontal test, adapt to more samples under test. YH1210 haze meter adopts PD array detector, which can meet the visual response of CIE V(λ)2 degrees. The compensation method can realize the high-precision and repeatable measurement of transmittance and fog data.







Advantages of YH1210 Haze Meter

1. Double standard ISO & ASTM

It can meet the test standard requirements of different users; meet the standards: ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,GB/T 3978,ASTM E308,JIS K7105,JIS K7361,JIS K 7136

2. Easy operation and faster and more accurate measurement

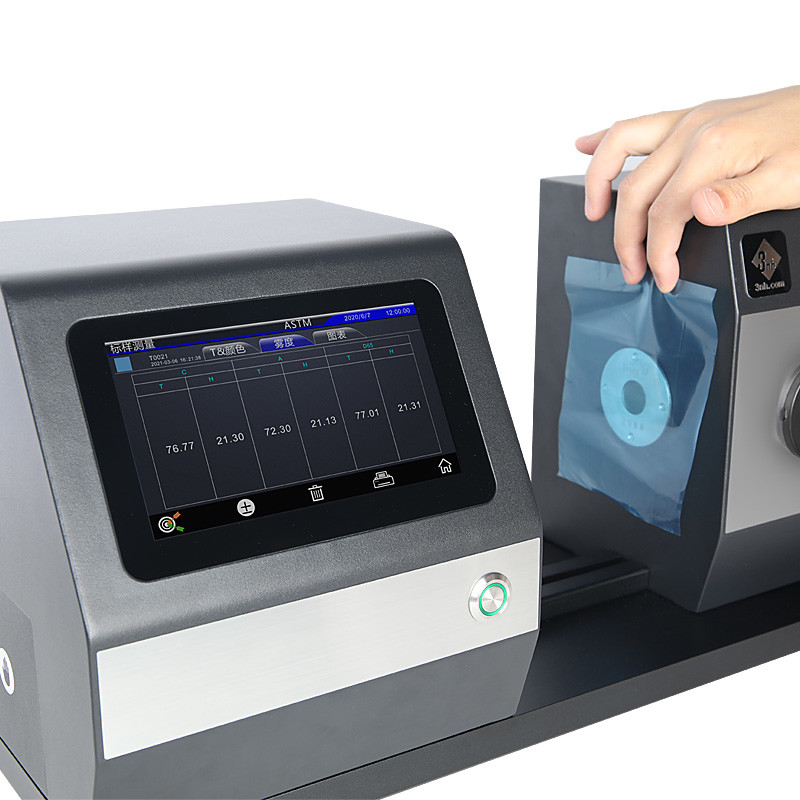

The YH1210 Haze Meter is equipped with large size touch screen, easy to operate, using PD array detector, to meet the CIE V(λ)2 degree visual response to achieve high precision and repeatable transmittance and fog measurement. USB data output device, can be connected with the laboratory system.

3. Dynamic measurement

Independent light source detector and temperature sensor to monitor the light source and environmental changes at all times to ensure reliable test data

4. Compensation port to make the measurement data more accurate

Meet the standard of ASTM D1003 non-compensation method, ISO 13468 compensation method, it can do full light transmittance, fog test, and provide more accurate test results

5. Convenient measurement and wide sample adaptation

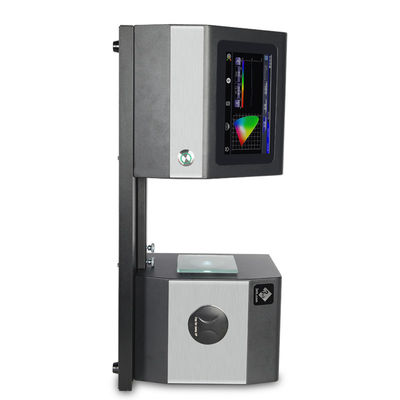

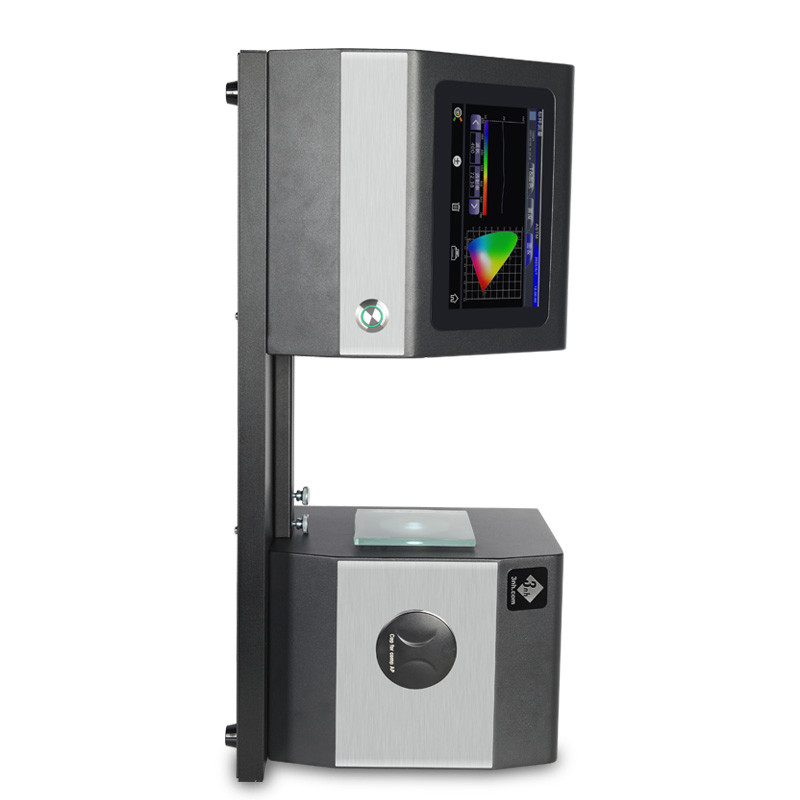

Open measurement area for vertical and horizontal testing to accommodate more samples under test

6. Quality management software

It provides powerful software for measuring and analyzing fog, color and light transmittance, which is suitable for quality monitoring and tabulating management of fog, light transmittance and color data in various industries. Data the management of users on the PC computer, compare the fog, transmittance and color differences, generate test report forms, facilitate customer customization and management.



Application of YH1210 Haze Meter



YH1210 Haze Meter is widely used in glass processing, plastic processing, film, display screen processing, packaging industry, liquid analysis and other aspects.



Product model YH1210 Haze Meter
Illumination mode Transmittance: 0/D (parallel illumination, diffuse receiving) in accordance with standards: ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,GB/T 3978,ASTM E308,JIS K7105,JIS K7361,JIS K 7136
Characteristic The instrument can easily realize ASTM D1003 uncompensated method, ISO 13468 compensation method, Full transmittance, fog test. Open measurement area for vertical and horizontal testing. It is widely used in glass processing, plastic processing, film, display screen processing, packaging industry, liquid analysis and other aspects.
Integrating sphere size Φ 154 mm
Illumination source 400 ~ 700 nm combined LED light source
Light splitting mode /
Inductor PD array detector, satisfying CIE V(λ)2 degree visual response
Measuring wavelength range /
Wavelength interval /
Half bandwidth /
Determination range of transmittance 0-100%
Measuring aperture Φ20 mm/Φ15 mm/Φ8 mm/Φ4 mm (select single aperture)
Sample size Thickness less than 105 mm
Color space /
Chromatic formula /
Other chromaticity indicators Haze (ASTM D1003/1044, ISO 13468), Transmittance T (ISO), Transmittance T (ASTM),
Observer angle 2 °
Observation light source D65,A,C
Display Pass/fail result
Measurement time About 1.5s
Resolution of fog 0.01 unit
Repeatability of nebulization Φ20 mm aperture, less than 0.1 (after instrument preheating and correction, test the standard nebulizer with the nebulization of about 40 at an interval of 5s for 30 times of standard deviation)
Inter-stage difference Φ20 mm aperture, less than 0.4 (after instrument preheating and correction, test the standard deviation between the standard nebulizer of nebulization and the reference value at an interval of 5s)
Dimensions Length X Width X Height = 487X260X298mm
Weight Approx. 8.0 kg
Power supply mode 24V 3A , DCpower adapter
Illumination light source lifetime > 3 million measurements in 5 years
Display screen TFT True Color 7 inch, Capacitive Touchscreen
Interface USB, Print Serial
Stored Data 1,000 samples, 20,000 samples
Language Simplified Chinese, Traditional Chinese, English
Operating Temperature Range 0 to 40 ° C (32 to 104 ° F)
Storage Temperature Range - 20 – 50 ° C (-4 – 122 ° F)
Standard Annex Power adapter, user manual, quality management software (download), USB cable, 0% calibration box, measuring caliber
Optional Accessories Micro printer, Test Fixture, Standard Fog Disk, Footswitch
Notes: Subject to change without notice
