20 60 85 Degree Tri Gloss Meter Multi Angle Measurement For Gold Silver Platinum Iradium
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Power | Electronic | Usage | Universal Testing Machine,gloss Tester,Auto Testing Machine,Gloss Testing Equipment,Wood Testing Instrument |
---|---|---|---|
Accuracy | Conform To JJG 696 Standard For First Class Gloss Meter,+/- 1.0 GU,±1.0 Gloss Unit ( Against Reference Standard ),±1.0 Gloss Unit,0.2 Gu | Resolution | 0.1GU |
Display | LCD Display | Product Name | Gloss Meter,Digital Display Portable Triangle Gloss Meter,high Precision Digital Gloss Meter With Pc Software,Glossmeter |
Warranty | 1 Year | Measuring Angle | 20° 60° 85° |
Application | Construction Industry,printing Ink,metal,stone,plastic | Language | Chinese And English |
Reproducibility | 0.2%(100-1000Gu)0.5%(100-1000Gu) | ||
High Light | auto calibration tri gloss meter,0.1GU tri gloss meter,auto calibration Multi Angle Gloss Meter |
Product Description

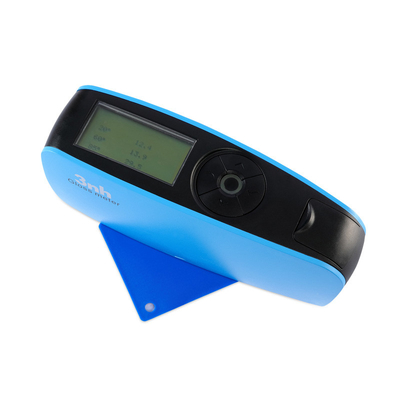

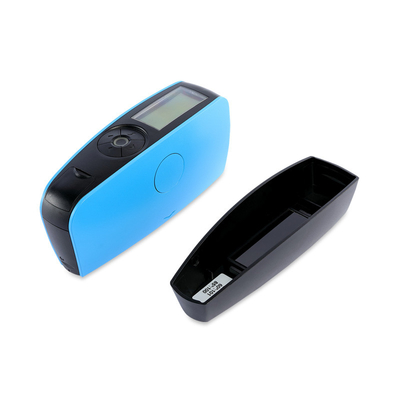

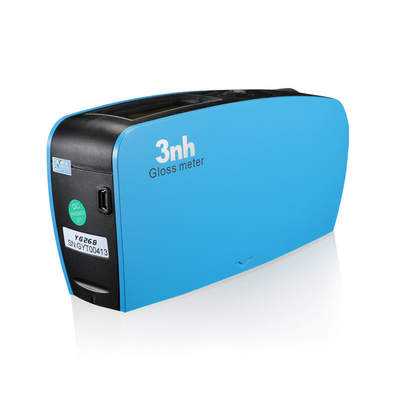

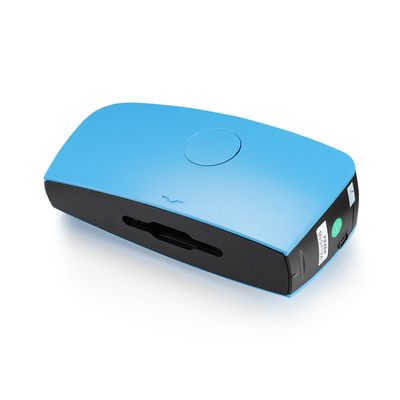

YG268 Tri-angle Gloss Meter
Introduction:
YG268 Tri-angle Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet requirements of JJG696.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
Product Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
Model | YG268 Tri-angle Gloss Meter |
Measuring Angle | 20° 60°85° |
Measurement Range | 20°: 0-2000GU 60°: 0-1000GU 85°: 0-160GU |
Division Value | 0.1GU |
Measuring Modes | Basic mode; Statistic mode; Continuous mode; QC mode |
Measuring Time | 0.5S |
Repeatability | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
Accurate | Conform with JJG696 requirements of gloss meter |
Auto Power-off Time | Within 30s-120s |
Long-time Calibration | Automatically check and made the calibration |
Language | Chinese & English |
Storage | 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) |
Display | 2.3 inch white and black screen |
Size | 160*52*84mm |
Weight | About 300g |
Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge |
Interface | USB |
PC Software | GQC6 QC software can printing testing report and with more extended functions |
Operation Temperature Range | 0-40℃(32-104° F) |
Storage Temperature Range | -20-50℃(-4-122° F) |
Humidity Range | < 85% RH, without condensation |

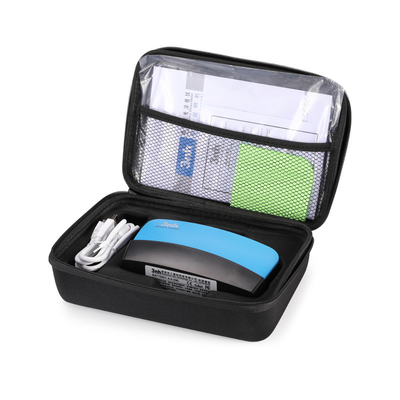

Standard Accessories | USB cable, user manual, calibration plate, QC software |
Optional Accessories | Miniature printer,Bluetooth |
Notification: the technical parameter is only for reference |
