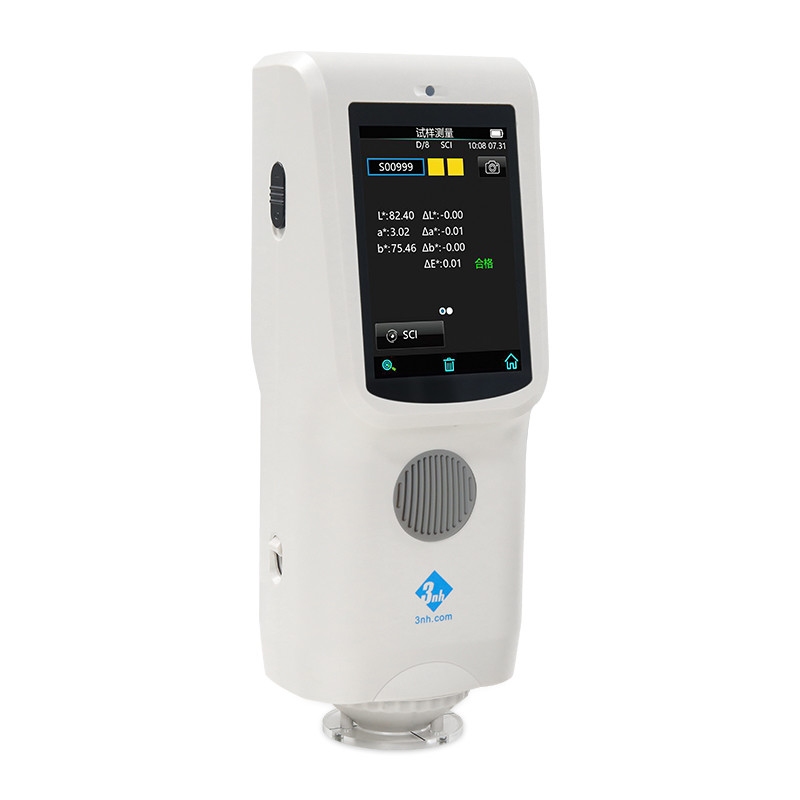

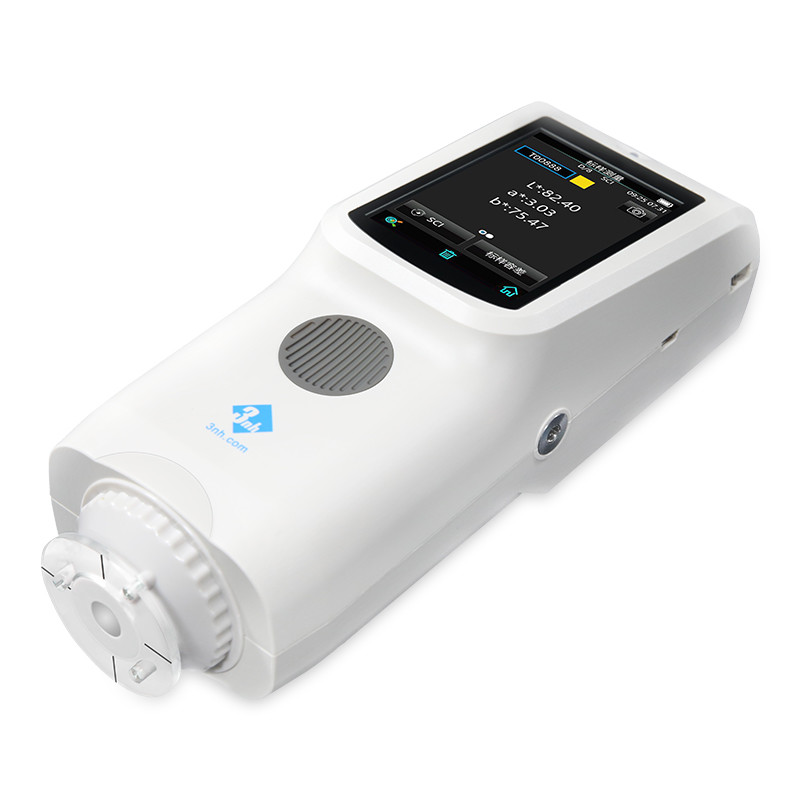

D/8 700nm Colour Measurement Spectrophotometer 3nh TS7010
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOptical Geometry | D/8 | Wavelength | 400-700nm |
---|---|---|---|
Repeatibility | DeltaE ≤ 0.05 | Inter-instrument Error | DeltaE ≤ 0.3 |
Aperture | 8mm & 4mm | Sphere Size | 40mm |
High Light | 700nm Colour Measurement Spectrophotometer,D/8 Colour Measurement Spectrophotometer,3nh TS7010 |
CR-10 chroma meter replaced by 3nh TS7010 colormetro digital color meter with reflectance curve d/8
Model | TS7010 |
Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) |
SCI Mode | |
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
Characteristic | Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
Integrating Sphere Size | Φ40mm |
Light Source | Combined full spectrum LED light source |
Spectrophotometric Mode | Flat Grating |
Senso | Silicon photodiode array (double row 24 groups) |
Wavelength Range | 400~700nm |
Wavelength Interval | / |
Semiband Width | 10nm |
Measured Reflectance Range | L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelengths specified by the user (default: 550nm) |
Measuring Aperture | Φ8mm |
Specular Component | SCI |
Color Space | CIE LAB,XYZ,Yxy,LCh |
Color Difference Formula | ΔE*ab,ΔE*00 |
Other Colorimetric Index | / |
Observer Angle | 10° |
Illuminant | D65,A,F2(CWF) |
Displayed Data | Reflectivity (the user specifies the reflectivity at 1 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
Displayed Accuracy | 0.1 |
Measuring Time | About 1.5s |
Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.4 (Average for 12 BCRA Series II color tiles) |
Measurement Mode | Single Measurement, Average Measurement(2-99times) |
Locating Method | Stabilizer cross position |
Dimension | L*W*H=81X71X214mm |
Weight | About 460g |
Battery | Li-ion battery, 6000 measurements within 8 hours |
Illuminant Life Span | 5 years, more than 3 million times measurements |
Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
Data Port | USB |
Data Storage | Standard 500 Pcs, Sample 10000 Pcs |
Language | Simplified Chinese, English, Traditional Chinese |
Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
Storage Environment | -20~50℃, 0~85%RH (no condensing) |
Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture |
Optional Accessory | USB Micro Printer, Powder Test Box |
Notes | Technical parameters are only for reference, subject to the actual sale of the product |
3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
1.24 hours online to ensure quick response to customers' inquiry or online message;
2. Help customers to choose the best suitable machine model;
3. We support OEM and ODM service and 12 months warranty from the purchase date.
Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
Delta E | Meaning |
0~1 | A normally invisible difference |
1~2 | ery small difference, only obvious to a trained eye |
2~3.5 | Medium difference, also obvious to an untrained eye |
3.5~5 | An obvious difference |
>6 | A very obvious difference |
