3nh Grating Colour Measurement Spectrophotometer Colorimeter Test Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Integrating Sphere Size | Φ48mm | Standards | CIE/ISO/ASTM/DIN |
|---|---|---|---|
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB | Function | Staining Fastness, Color Fastness |
| Light Source | LED+UV Illumination | Software | SQCX |
| Rate | Spectral Reflectance | Wavelength Range | 400~700nm |
| Highlight | integrating sphere spectrophotometer,multi angle spectrophotometer,3nh Grating Colour Measurement Spectrophotometer |
||
Product Description

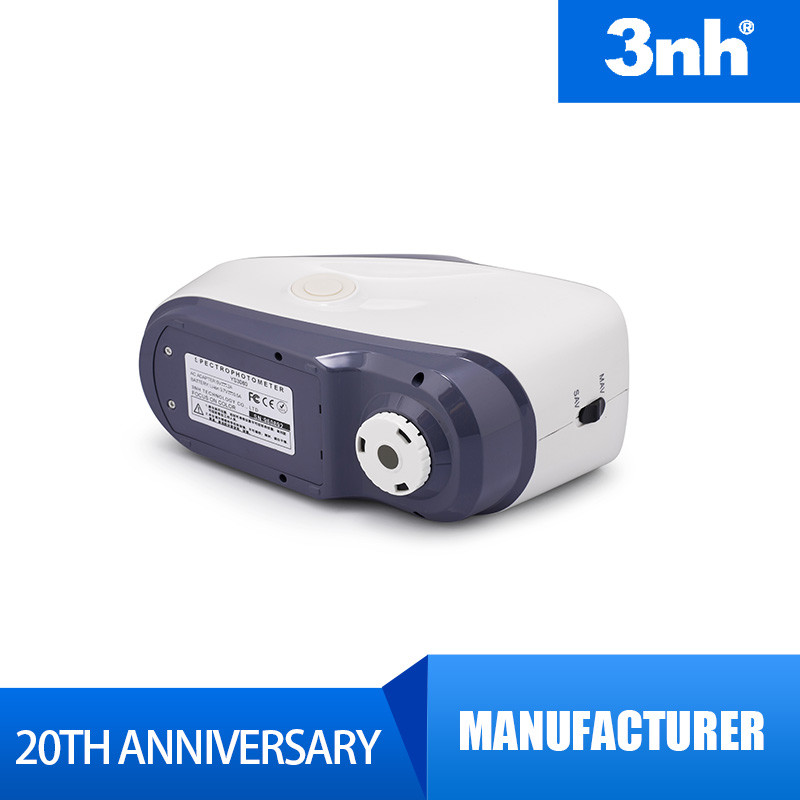

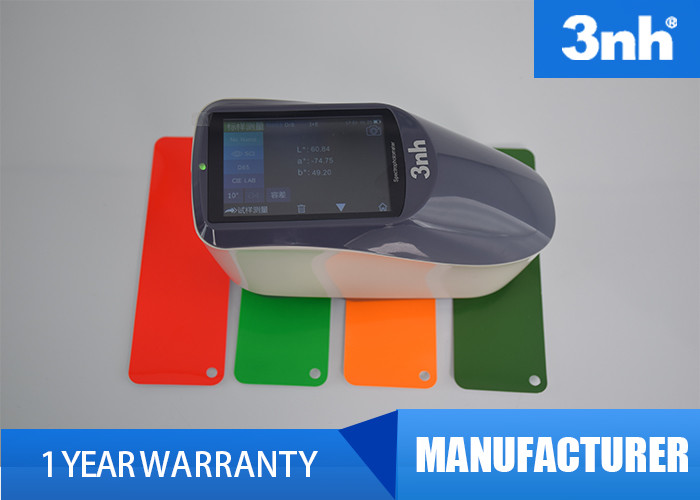

YS3060 Color Measurement Spectrophotometer 3nh SCE SCI D/8 Colorimeter Test Machine
3nh Spectrophotometer YS3060 is our most advanced handheld spectrophotometer with high performance and sophisticated functions.
YS3060 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.
YS3060 UV Grating Spectrophotometer
Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.
YS3020 Grating Spectrophotometer
Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.
YS3010 Grating Spectrophotometer
4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.
With its broad capabilities, 3nh Spectrophotometer YS3060 SCE SCI D/8 Hunter lab Color Test Reader Meter with 8mm and 4mm apertures is used in plastics, coatings, textiles and many other industries.
| Model | YS3060 spectrophotometer |
|---|---|
| Illumination/observation system | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) |
| Integrating sphere Size | Φ48mm |
| Light Source | Combined LED Light, UV Light |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength range | 400~700nm |
| Wavelength pitch | 10nm |
| Reflectance range | 0~200% |
| Measuring Aperture | Dual Aperture: 10mm/8mm & 5mm/4mm |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
| Other Chromaticity Data |
WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness |
| Observer | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Display Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measurement Time | 1.5s |
| Repeatability | Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=184*77*105mm |
| Weight | 600g |
| Battery | Li-ion battery. 5000 times within 8 hours. |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 3.5inch, Capacitive Touch Screen |
| Interface | USB/RS-232 |
| Data Memory | Standard 2000 Pcs, Sample 20000 Pcs |
| Operating Temperature | 0~40℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover |
| Optional Accessory | Micro Printer, Powder Test Box |
