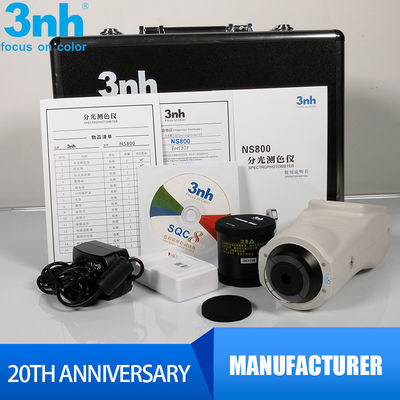

Liquid Color Test 3nh Spectrophotometer ASTM 8mm Aperture High Precision

  • Liquid Color Test 3nh Spectrophotometer ASTM 8mm Aperture High Precision
  • Liquid Color Test 3nh Spectrophotometer ASTM 8mm Aperture High Precision
  • Liquid Color Test 3nh Spectrophotometer ASTM 8mm Aperture High Precision
Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number NS800
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time 2-5 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 45°/0 Repeatibility DeltaE*ab 0.04
Wavelength 400~700nm Illuminant D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
Name 3nh Spectrophotometer Certification CE, TUV, FCC, ISO9001, RohS
High Light

ASTM 3nh Spectrophotometer

,

Liquid Color Test 3nh Spectrophotometer

,

High Precision Hunter Lab Spectrophotometer
Leave a Message
Product Description





Liquid Color Test Spectrophotometer with d/8 8mm aperture 3nh NS800



NS800 spectrophotometer is developed by 3nh with independent intellectual property rights.It uses 45/0 geometrical optical structure, comply with CIE No.15, GB/T 3978. With human body engineering mechanics and humanized operation design, NS800 has stable performance precise measurement and powerful functions in the leading position of the same industry.



With 400~700nm, NS800 spectrophotometer features with high accuracy DeltaE*ab 0.04, and 8mm aperture makes measurement so easy. It can save 1000 Standards, 15000 Samples and you also can input your own LAB or XYZ value into the instrument.



With a powerful PC software SQC8, which includes more extended functions that can enormously facilitate your work, you can do better color control management. Plus, it is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.



Portable Spectrophotometer Product Features



1. Aesthetic design perfectly combined with ergonomics structure.
2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.
3. 3.5 inch large capacitive touch screen.
4. Two standard observer perspectives, multiple light sources modes, a variety of color systems.
5. The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
6. Large capacity storage, can save more than 10000 data.
7. PC software with powerful extension functions.
8. High hardware configuration with a number of innovative technologies.
9. Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
10. 15° oblique angle screen, more in line with the human eye observation.



Technical Specification

Parameters Spectrophotometer NS800
Optical Geometry 45°/0
Inte-grating Sphere Size Φ58mm
Measuring Aperture Φ8mm
Repeatibility ΔE*≤0.04
Inter-instrument Agreement ΔE*≤0.2
Observer Angle 2° & 10°
Wavelength Range 400-700nm
Wavelength Pitch 10nm
Reflectance Range 0-200%
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v
Displayed Data Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Other Chromaticity Data WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),
TI(ASTM E313, CIE/ISO),
Metamerism Index (Mt),
Color Strength, Color Stain, Color Fastness
Illuminant D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
Illuminant Device Combined LED Light
Illuminant Lifespan 5 years, More than 1.6 million measurements
Sensor Silicon Photoelectric Diode Array
Data Storage 1000 Standards, 15000 Samples
Data Port USB
Display Size TFT 3.5"
Touch-Screen Yes
Working Temperature 0~40℃(32~104℉)
Storage Temperature -20~50℃(-4~122℉)
PC Software SQC8
Weight 600g
Dimension 90*77*230mm
Battery 3200mAh Large Capacity Li-ion Battery
Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
Optional Accessory Universal Test Components, Micro Printer, Powder Test Box







Liquid Color Test Spectrophotometer with d/8 8mm aperture 3nh NS800
