3nh Paint Coating Spectrophotometer High Accuracy With Two Apertures
|Place of Origin:||Shenzhen China|
|Certification:||CE, TUV, FCC, RoHS, ISO9001|
Payment & Shipping Terms:
|Minimum Order Quantity:||1Unit|
|Price:||Please send inquiry|
|Packaging Details:||46*25*38cm, 4.5KG, Alluminum Box|
|Delivery Time:||2-5 Days|
|Supply Ability:||500 Units per Month|
|Optical Geometry:||D/8°||SCE/SCI:||SCE & SCI|
|UV Light Source:||Yes||Repeatibility:||ΔE*≤0.03|
|Inter-instrument Agreement:||ΔE*≤0.15||Measuring Aperture:||8mm & 4mm|
colour matching spectrophotometer,
color measurement instruments,
3nh Paint Coating Spectrophotometer

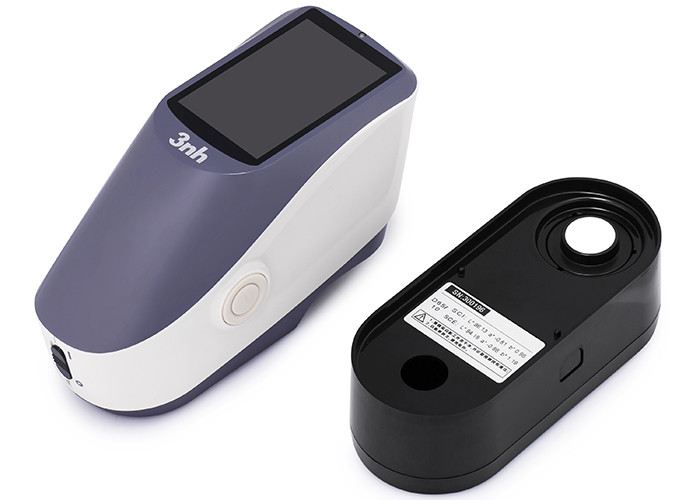

3nh Spectrophotometer YS3060 Paint and Coating Color Measuring Instruments D/8 Geometry with Two Apertures
|Measuring Aperture||8mm & 4mm|
|UV Light Source||Yes|
|Integrating Sphere Size||48mm|
|Wavelength Range||400nm - 700nm|
|Reflectance Range||0 - 200%|
|Illuminant||D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12|
|Observer Angle||2° & 10°|
|Color Space||CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB|
|Color Difference Formula||ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)|
|Displayed Data||Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset|
|Other Colorimetric Index||
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity
|Light Source Device||Combined LED Lamp & UV Lamp|
|Light Source Lifespan||5 years, More than 1.6 million measurements|
|Sensor||256 Image Element Double Array CMOS Image Sensor|
|Spectral Device||Concave Grating|
|Aiming Method||Camera Locating|
|Measurement Mode||Single Measurement & Average Measurement|
|Storage Capacity||Standard: 1000 Pcs
Sample: 28000 Pcs (One piece can include SCE&SCI)
|Data Port||USB & Bluetooth|
|Screen||3.5" LCD Touch Screen|
|Battery||Built-in Li-ion Battery, 5000 Measurements within 8 hours|
|Language||English & Chinese & Spanish|
|Working Environment||Temperature: 0~40℃, Humidity: 0~85% (No Condensation)|
|Storage Environment||Temperature: -20~50℃, Humidity: 0~85% (No Condensation)|
|Standard Accessory||Power Adapter, USB Cable, Built-in Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cap|
|Optional Accessory||Micro Printer, Powder Test Box, Universal Test Component|
1. Spectrophotometer YS3060 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
2. YS3060 features the precise measurement and the complete functions.
3. It is configured with two measuring apertures, 8mm and 4mm. The 4mm aperture is for the color measurement of small targets.
4. Configured with UV light source, YS3060 can be used to measure the color of the targets with fluorescent material.
5. The PC terminal software SQCX provides powerful data management functions.
6. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
7. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
8. YS3060 can be connected to a computer via USB cable or Bluetooth to do data management.
9. A built-in camera to help to aim the targets to be measured.
YS3060 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3060 is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
Frequently Asked Questions
1. Which models are the equivalent models to YS3060?
Answer: KONICA MINOLTA CM-2600d, CM-700d and X-rite Ci64, Ci64UV are the equivalent models to 3nh YS3060.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
