High Glossy 3nh Digital Gloss Meter Continuous Mode 160 * 75 * 90mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Angle | 20° & 60° & 85° | Measuring Area(mm) | 20°:10x10 60°:9x15 85°:5x36 |
|---|---|---|---|
| Measuring E(GU) | 20°:0~20Rang00 60°:0~1000 85°:0~160 | Measuring Mode&Storage | Continuous Mode: 5000 |
| Tolerance | ±1.2, ±1.2% | Optional Accessories | Mini Printer |
| High Light | paint gloss meter,60 degree gloss meter |
||
Product Description

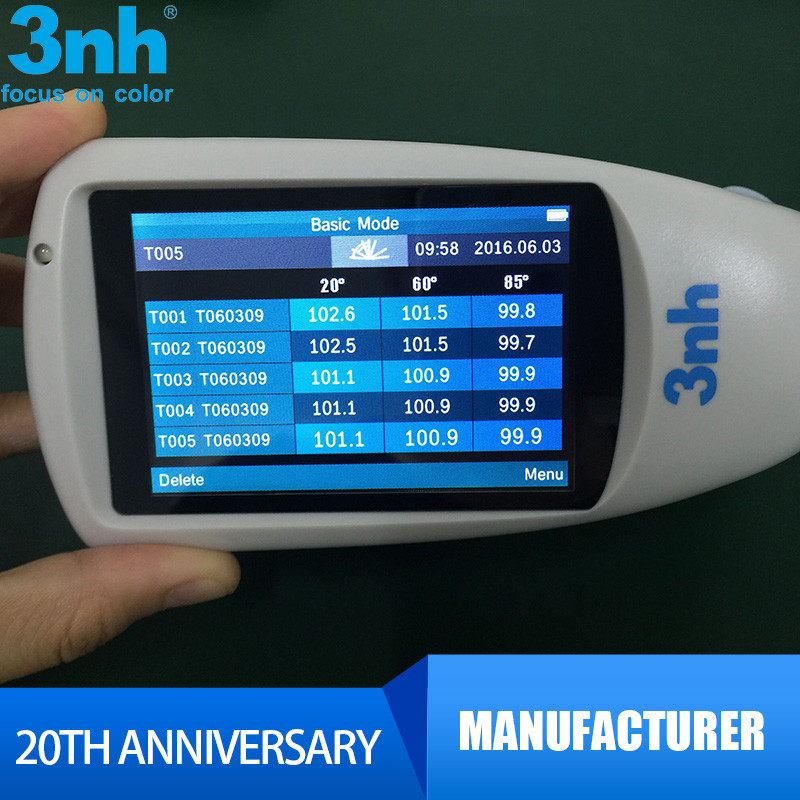

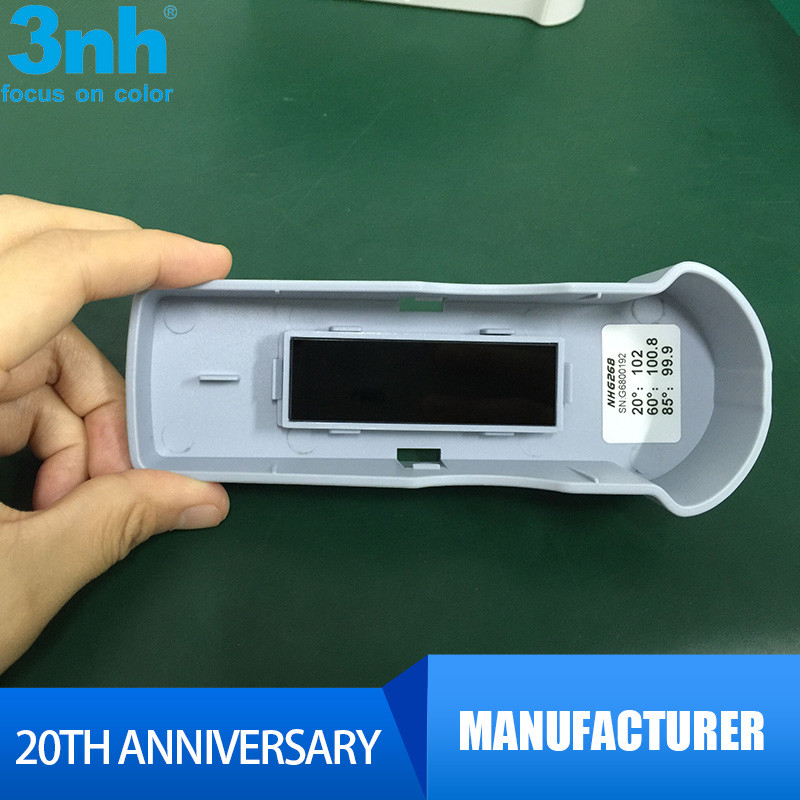

2000 gu Tri-angle Gloss Meter 3nh NHG268 with GQC6 Quality Control Software
3nh offer Multi-angle NHG268 Precise Gloss Meter with 20/60/85 degree. It comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457.
NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
Technical Specification
| Parameters | Tri-angle Gloss Meter NHG268 |
| Measuring Angle | 20° & 60° & 85° |
| Measuring Area | 20°: 10x10mm 60°: 9x15mm 85°: 5x36mm |
| Measuring Range | 20°:0~2000GU 60°:0~1000GU 85°:0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±1.2, ±1.2% |
| Measuring Time | 0.1s |
| Display Size | TFT 3.5" |
| Screen-touch | Yes, Capacitive Touch Screen |
| Data Port | USB |
| Language | Chinese, English |
| Battery | 3200mAh Li-ion Battery , more than 10000 times (within 8 hours) |
| Dimension | 160*75*90mm |
| Weight | 350g |
| Measuring Mode&Storage | Basic Mode: 1000 |
| PC Software | GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate |
| Optional Accessories | Mini Printer |
Applications
NHG268 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.
