Industrial 3nh Colour Measurement Device Multiple Light Source 10nm Wavelength Pitch
|Place of Origin:||Shenzhen, China|
|Certification:||CE, TUV, FCC, ISO9001, RohS|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Unit|
|Price:||Please send inquiry|
|Packaging Details:||46*25*38cm, 4.5kg, Alluminum Box|
|Delivery Time:||2-5 work days|
|Supply Ability:||500 Units per Month|
|Optical Geometry:||45°/0||Sphere Size:||Φ58mm|
|Wavelength Range:||400-700nm||Measuring Aperture:||Φ8mm|
paint matching spectrophotometer,
handheld color meter
3nh 45 / 0 Color Spectrophotometer for Printing Industry Color Management for Measuring Color of Papers and Packages
|Inte-grating Sphere Size||Φ58mm|
|Observer Angle||2° & 10°|
|Color Space||CIE LAB, XYZ, Yxy, LCh, CIE LUV|
|Color Difference Formula||ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v|
|Displayed Data||Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation|
|Other Chromaticity Data||WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),
TI(ASTM E313, CIE/ISO),
Metamerism Index (Mt),
Color Strength, Color Stain, Color Fastness
|Illuminant||D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12|
|Illuminant Device||Combined LED Light|
|Illuminant Lifespan||5 years, More than 1.6 million measurements|
|Sensor||Silicon Photoelectric Diode Array|
|Data Storage||1000 Standards, 15000 Samples|
|Display Size||TFT 3.5"|
|Battery||3200mAh Large Capacity Li-ion Battery|
|Standard Accessory||Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.|
|Optional Accessory||Universal Test Components, Micro Printer, Powder Test Box|

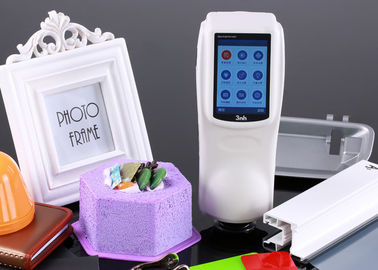

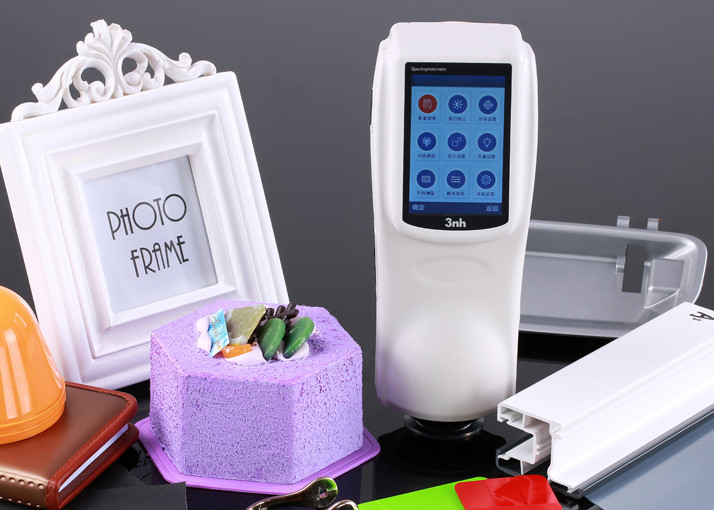

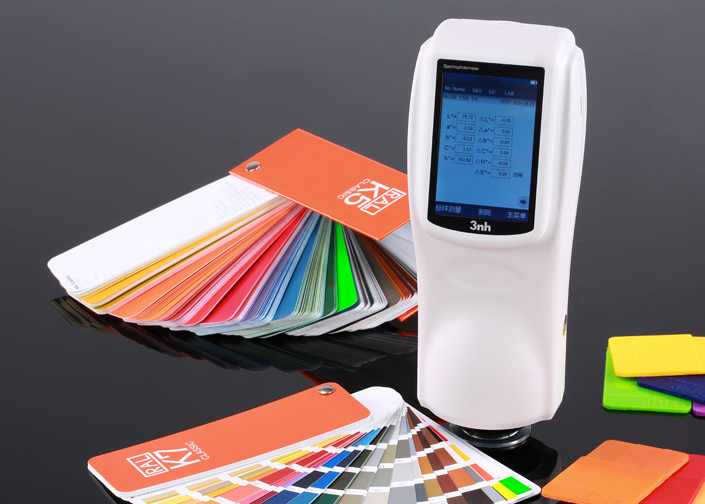

1. NS800 spectrophotometer features a 3.5" ultra-large display with touch-screen function which makes the operation quite simple, the interface quite friendly. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld spectrophotometer.
2. NS800 spectrophotometer adopts a 58mm ultra-large integrating sphere which can homogenize light better, and the 45°/0 optical geometry structure conforming to the standards CIE, ISO, ASTM, DIN, all of which make its accuracy incomparable.
3. Repetitive error is less than 0.04ΔE*ab, inter-instrument error is less than 0.2ΔE*ab, which make its stability and reliability of measurement very superior.
4. NS800 spectrophotometer is configured with 2 types of observer angles, 2° and 10°, multiple light source types, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NS800 can excellently fulfill all kinds of requirements for color measurements in different industries.
5. NS800 spectrophotometer also goes with a powerful PC software SQC8 which includes more extended functions that can enormously facilitate your work.
6. With the configuration of universal test component and powder test box, measurements of liquid, paste, powder and particle can be implemented without hesitation.
Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.
Frequently Asked Questions
1. Which models are the equivalent models to NS800?
Answer: BYK 6801 Spectro is the equivalent models to 3nh NS800 (About color measurement function).
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
