Smart Silk Tri Gloss Meter NHG268 TFT 3.5 Inch Large Touch Screen Operation
Product Details
| Model: | NHG268 | Measuring Angle: | 20 60 85 |
|---|---|---|---|
| Measuring Area (mm): | 20°: 10x10 60°: 9x15 85°: 5x36 | Division Value: | 0.1GU |
| Erros: | ±1.2 , ± 1.2% | Language: | English,Chinese |
| Dispaly: | TFT 3.5 Inch,touch Screen | Optional Accessories: | Miniature Printer |
| Highlight |
paint gloss meter,portable gloss meter |
||
Product Description

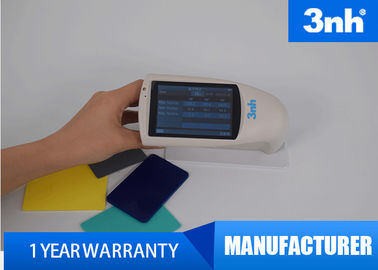

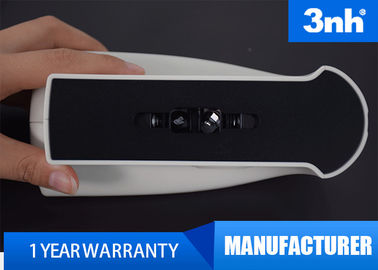

Triangle Smart Portable NHG268 Glossmeter with Quality Control Software
Brief Introduction:
Stable Performance,high precision, NHGseries touch screen gloss meter with large touch screen operation.NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
Features:
- 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
- One button for all angles measurement at the same location
- Display 5 sets of measurement data, good for comparison
- Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
- Continuous mode to check uniformity over large areas
- Connect to PC, more extend functions
- Input gloss value manually
- Large touch screen operation, easy to use
- Beauty appearance, good man-machine communication interface
- Powerful functions to meet many different requirements
- Large storage to save over 5000 data
- Built-in lithi
- um ion rechargeable battery.
Specifications:
| NHG268 Multi-angle Precise Gloss Meter | |
| Model: | NHG268 |
| Measuring Angle | 20°/60°/85° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area (mm) | 20°: 10x10 60°: 9x15 85°: 5x36 |
| Measuring Range | 20°:0~2000GU 60°:0~1000GU 85°:0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class glossmeter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.2 , ± 1.2% |
| Measuring Time | 0.1s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery , >10000 times(within 8 hours) |
| Display | TFT 3.5 inch, capacitive touch screen |
| Interface | USB/RS-232 |
| Storage | Basic mode: 1000; Statistical Mode: 5000, Continuous mode : 5000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |
| Humidity | <85% relative humidity, no condensation |
| Standard Accessories | Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate |
| Optional Accessories | Miniature Printer |
| Note | The specifications are subject to change without notice. |
