AC100-240V Light Color Viewing Light Box HC5100 LED Lamps Array Light Device

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE
Model Number HC5100
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 7KG
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 50 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Temperature 5100k Color Temperature 5100k
Illuminance 0-11000lx Adjustable Life Span More Than 25000 Hours
Light Panel Size 25W*19Hcm CRI >90%
Illuminance Evenness >92% Volume 37W*32.5H*16.5Dcm
Power AC100-240V, 50/60Hz Light Device LED Lamps Array
High Light

camera resolution chart

,

camera lens test chart

Leave a Message
Product Description
3NH Standard Color Viewer LED Transmission Light Box HC5100

3nh standard camera color viewer transmission light box is to provide special lighting environment and high illumination uniformity, light continuous adjustable, etc functions. They are suitable for 4:3 transmission test chart.

HC5100/HC3100 adopts 3nh independent research and development LED light, and it has higher illumination uniformity and better CRI (color rendering index), while CC5100/CC3100 adopts DNP original light and it can get the same color temperature and illumination uniformity with DNP SDCV 3500 transmission light box, but we have 250 ~ 10000 Lux adjustable illuminance while SDCV 3500 only has 6000 ~ 10000 Lux. It can’t meet the requirement who needs to test image quality under 6000 lux.

Transmission light box offers a special light source to check the quality of camera. With two adjusting knobs, we can adjust the illuminance from 0 lux to 11000 lux. It fits for many kinds of transmission test charts 4:3 use, such as transmission greyscale charts, transmissive high resolution test chart, transparency grid test chart, etc. Through image test software, the analysis result is more professional and easier.

Application

Transmission light box is widely used for digital camera, phone camera, video camera, Security cameras, car camera, etc lens camera test quality control.


Performance Highlights

l Illumination uniformity >92%,Extensive color rendering index CRI>90

l LED dimmable dynamic range 0-11000lx, Flicker Free with 2 dimmer knobs

l Standard Color HC5100/HC3100±100K,Duv ±0.002

l Excellent color/flux stability over 25000 hours lifespan

l 60%+ higher efficiency than fluorescent light tube, Hg Free



General information

l Power supply:AC100-240V,50/60HZ,50W

l Environment required,Temperature10-40℃,<RH80%

l Size:37W*32.5H*16.5Dcm

l Projection area:25W*19Hcm

l Net weight ~6kg



Warning

l Do not connect with power grid other than AC100-240V before turning on the light

l Suggest waiting for 10 minutes to get stable color after turning on the light

l Be careful to prevent scratching diffusingreflection plate and clean by non-dust wiper with alcohol



Detailed Images

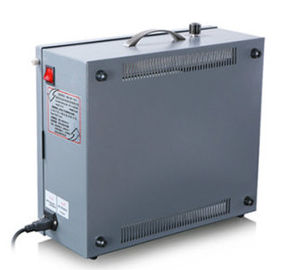

3NH Standard Color Viewer LED Transmission Light Box HC5100



3NH Standard Color Viewer LED Transmission Light Box HC5100





Parameters HC5100
Color Temperature 5100K
Illuminance 0 - 11000LUX adjustable
Lifespan More than 25000 hours
Light Device LED Lamp Array
Light Panel Size 25*19cm
Color Rendition Index >90%
Illuminance Evenness >92%
Size 37W*32.5H*16.5Dcm
Power Supply AC100-240V, 50/60Hz
Apply Industry Camera Imaging Performance Tests





Frequently Asked Questions

1. Which models are the equivalent models to HC5100?
Answer: T259000 is equivalent to EQP-ITLB LED Transmissive Light Box.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you supply the corresponding transmissive camera test charts?

Answer: Yes, of course we supply the transmissive camera test charts. We are also now the best manufacturer of camera test charts in China.
