Paint Color Analyzer 3nh Spectrophotometer 1*3mm Rectangular Aperture for Curve Surface

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number YS3020
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry D/8° SCE/SCI SCE & SCI
UV Light Source Yes Repeatibility ΔE*≤0.05
Inter-instrument Agreement ΔE*≤0.2 Measuring Aperture 8mm & 4mm & 1×3mm
High Light

colour matching spectrophotometer

,

color measurement instruments

Leave a Message
Product Description

3nh Special Color Analyzer YS3020 with 3mm Rectangular Measuring Aperture for Curve Surface Color Measurements



Technical Specification

Parameters Spectrophotometer YS3020
Optical Geometry d/8°
Repeatibility ΔE*≤0.05
Inter-instrument Agreement ΔE*≤0.2
Measuring Aperture 8mm & 4mm & 1×3mm
SCE/SCI SCE&SCI
UV Light Source Yes
Integrating Sphere Size 48mm
Wavelength Range 400nm - 700nm
Wavelength Pitch 10nm
Halfband Width 10nm
Reflectance Range 0 - 200%
Illuminant D65, A, C, D50, D55, D75, F2, F7, F11
Observer Angle 2° & 10°
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Displayed Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Other Colorimetric Index

WI (ASTM E313, CIE/ISO, AATCC, Hunter),

YI (ASTM D1925, ASTM 313),

TI (ASTM E313, CIE/ISO),

MI (Metamerism Index),

Staining Fastness, Color Fastness, Color Strength, Opacity

Light Source Device Combined LED Lamp
Light Source Lifespan 5 years, More than 1.6 million measurements
Sensor 256 Image Element Double Array CMOS Image Sensor
Spectral Device Concave Grating
Aiming Method Camera Locating
Measurement Mode Single Measurement & Average Measurement
Storage Capacity Standard: 1000 Pcs
Sample: 28000 Pcs (One piece can include SCE&SCI)
Data Port USB

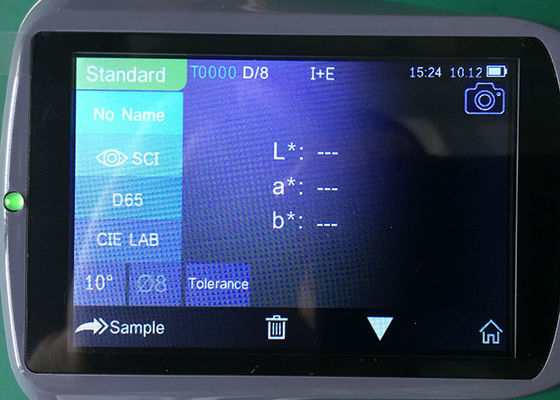

Screen 3.5" LCD Touch Screen
Battery Built-in Li-ion Battery, 5000 Measurements within 8 hours
Size 184*77*105mm
Weight 600g
Language English & Chinese & Spanish
Working Environment Temperature: 0~40℃, Humidity: 0~85% (No Condensation)
Storage Environment Temperature: -20~50℃, Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cap
Optional Accessory Micro Printer, Powder Test Box, Universal Test Component





































































































Brief Introduction

1. Spectrophotometer YS3020 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
2. YS3020 features the precise measurement and the complete functions.
3. It can be configured with three measuring apertures, 8mm, 4mm and 1×3mm. The 4mm and 1×3mm apertures are for the color measurement of small targets.
4. The PC terminal software SQCX provides powerful data management functions.
5. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
6. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
7. YS3060 can be connected to a computer via USB cable or Bluetooth to do data management.
8. A built-in camera to help to aim the targets to be measured.



Application Introduction

YS3020 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3020 Spectrophotometer is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 Spectrophotometer can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.



Frequently Asked Questions

1. Which models are the equivalent models to YS3020?
Answer: KONICA MINOLTA CM-700d is the equivalent model to 3nh YS3020.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
