3NH Grey Scale 20 Level Test Card Grayscale Chart YE0259 Transparent

Certificates: ISO9001:2008; CE; FCC; ROHS; TUV.

SineImage 20 steps grayscale chart YE0259

Brand Sine Image
Model YE0259
Size 280*157.5mm (Customized)
Material Film
Ratio 16:9
Type Transparent

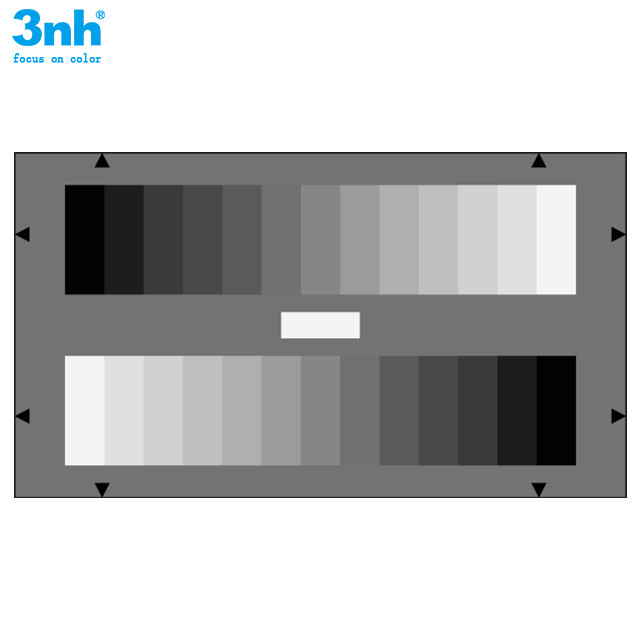

The YE0259 is designed to check the dynamic range of broadcasting cameras on a waveform monitor. Two 20-step graduated counter current gray scale are arranged on a gray background (D = 1.35),the gray scale is graded in a logarithmic grade.


The contrast range of the gray scales is 10000:1


It is only transparent / transmission and is able to be customized.




The values of the 20-graduated gray scale chart are as follows:

Field Reference density Measured density
1 0.03
2 0.10
3 0.17
4 0.24
5 0.32
6 0.41
7 0.50
8 0.59
9 0.70
10 0.81
11 0.94
12 1.08
13 1.23
14 1.41
15 1.61
16 1.85
17 2.15
18 2.53
19 3.08
20 4.03
Background 1.35


Keywords: Gray Scale Test Chart, grayscale chart, grayscale test chart



Remark: We support Any customized test charts only if you have high resolution image and size.



Parameters ISO12233 Enchanced Camera Resolution Test Chart
Size Size customisable
Format 16:9 / 4:3
Type Reflective/Transmissive
Material Photographic Paper(Reflective), Film(Transmissive)


Common Standard ISO 12233 Test Chart Size

Model Multiple Size(cm)
NE-10-50A 0.5X 10×17.8cm
NE-10-100A 1X 20×36.6cm
NE-10-200A 2X 40×71.2cm
NE-10-400A 4X 80×142.4cm
NE-10-800A 8X 160×284.8cm


Brief Introduction

1. We, 3nh-Sine Image, now is the biggest and best manufacturer of Camera Test Charts in China.

2. We can make all kinds of test charts, such as ISO12233 Resolution Charts, Distortion Charts, Greyscale Charts, 18% Netral Grey Cards, SFR Charts, Dynamic Range Charts, and so on.

3. Both transmissive and reflective are OK.

4. Any customised charts are no problem, either.

5. Our test charts definitely can match with the charts of ESSER(IE) and Imatest, no matter in accuracy or in quality.
6. Compared with ESSER(IE) and Imatest, our advantages exist on not only the much better prices but also much better delivery time.

7. More and more world famous companies have already trusted us as their long-term supplier for camera test charts.
8. These companies include HUAWEI, Apple, OPPO, vivo, O-film, DJI, GoPro, Lenovo, Samsung, LG, Suny Optics, ZTE.

9. We can make some small samples for you to check and confirm first.
