VC-118-S Silk Video Checker Camera Resolution Chart D65 Illuminants LED Lamps
Product Details
| Material: | MDF | Illuminants: | D65 |
|---|---|---|---|
| Illumination Range: | 0 - 6000 Lux | Name: | Camera Test Light Source Box |
| Highlight |
camera resolution chart,camera lens test chart |
||
Product Description

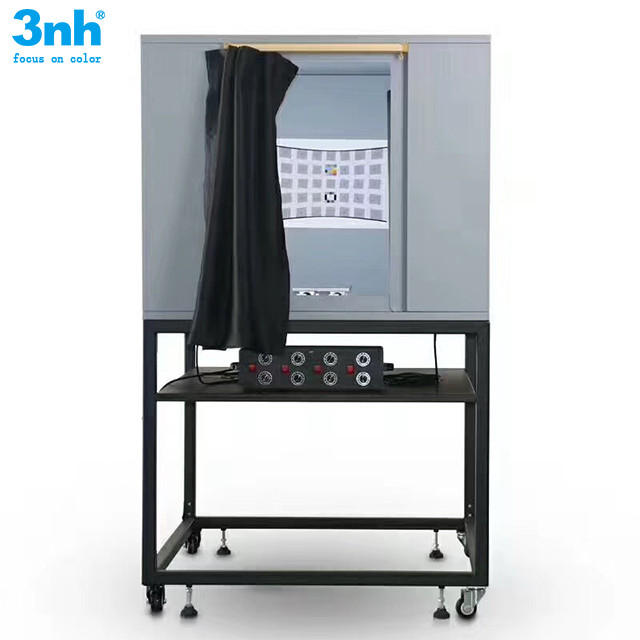

VC-118-S Camera Test Cabinet
VC-118-S camera test cabinet is the latest product developed by Silk, special designed for camera test to test the lens of different viewing angles

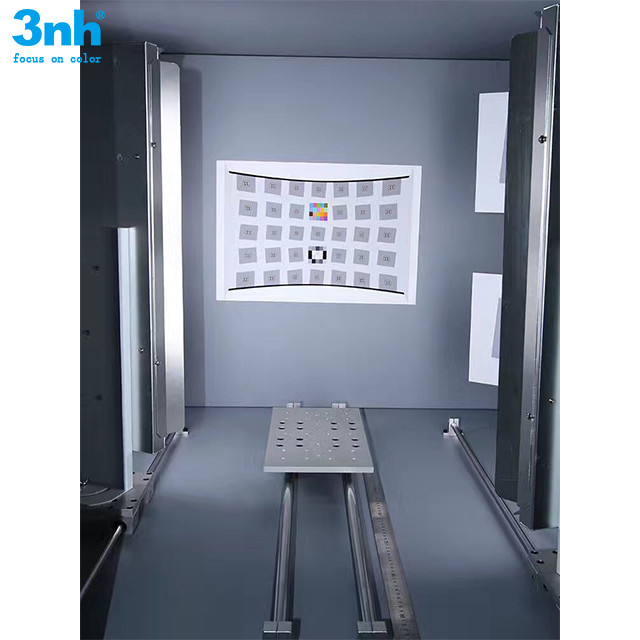

VC-118-S camera test cabinet is the latest product developed by Silk. This product can test lens of different angles but using the same chart. Built-in moving sliding table, you can easily move the lens back and forth. VC-118-S equipped with LED lamps with high color rendering index, no flicker, long life and stable color temperature.The user can rotate the light plate in any direction according to the different situations, so as to obtain a more uniform lighting environment.
Product Specification
1. Outline Dimension : 1150mm*1045mm*1728mm
2. Inner Dimension: 1106mm*1001mm*800mm
Window Dimension: 447mm*700mm
3. Connector installation plate Dimension: 250mm*150mm
Connector installation plate consists of : 1 pcs RS232 connector, 1 pcs AV seat, 2 pcs USD connector, 2 pcs Cable base, 2 pcs DC seat, 1 pcs trachea quickfit PM06
4. Lamp Control Box Dimension (Figure 4): 508mm*248mm*131mm
5. Operating Temperature: 0~40℃, the relative humidity ≤ 85% (non condensing)
6. Input Voltage: AC22OV, 50/60Hz (maximum power consumption is 160W)
7. Net Weight: 130kg
The standard lamp of VC-118-S is D65 LED light source with 6500K±200K color temperature. The user can configure the light source according to the requirements (like the following table).
| Color temperature | Ra |
| 7500K±200K | >91 |
| 6500K±200K | >94 |
| 5000K±200K | >95 |
| 3000K±200K | >95 |
| 2800K±200K | >95 |
Camera Testing
VC-118-S camera test cabinet is special designed for camera test to test the lens of different viewing angles . The maximum size of the chart used in this cabinet is 2X ISO 12233 Resolution Test Chart (712mm*400mm). Except this, it is also suitable for other charts to test wide-angle lens and fisheye lens. All the charts are magnetic, and able to be placed in any position of the cabinet according to users’ requirement.
