3nh / Sineimage Resolution Test Chart 3D Alignment Chart To Align / Adjust Cameras For A 3D Shooting

  • 3nh / Sineimage Resolution Test Chart 3D Alignment Chart To Align / Adjust Cameras For A 3D Shooting
  • 3nh / Sineimage Resolution Test Chart 3D Alignment Chart To Align / Adjust Cameras For A 3D Shooting
Place of Origin Shenzhen China
Brand Name 3nh - SineImage
Certification CE
Model Number TE271/YE271
Minimum Order Quantity 1 Pcs
Price Please send inquiry
Packaging Details Safe Package
Delivery Time 1-4 Days
Payment Terms T/T
Supply Ability 1000 Pcs per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material High Resolution Photographic Paper Category Reflective/Transmisive
Consist 18 Color Patches And A 6-step Gray Scale. Size 21.59*27.94cm
Name X Rite Colorchecker Passport
Highlight

camera resolution chart

,

camera lens test chart
Leave a Message
Product Description

3nh brand made in China 24 color checker photographer test chart for reflectance

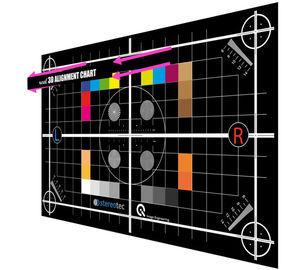

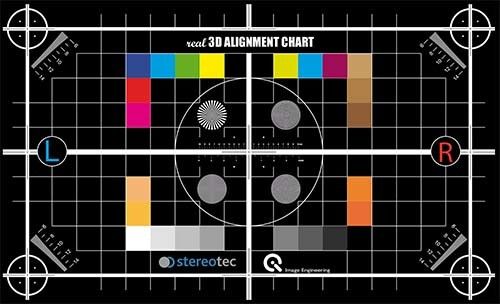

3D ALIGNMENT CHART



Thereal3D Alignment Chartis made to align and adjust cameras for a 3D shooting.

A unique combination of 2D and 3D structures allows an easy and straightforward preparation of your stereoscopic camera setup.



Horizontal 9-step log GRAYSCALE //


16 COLOR PATCHES to check color reproduction and to align cameras //


GRID LINES to check horizontal and vertical alignment //


RIGHT AND LEFT SIDE is marked on the chart for orientation check //


REAL 3D STRUCTURE on the chart to check for pseudoscopic effects //


HORIZONTAL SCALES in inch and cm close to the vertical center of the chart.The scale starts with zero in the middle and is symmetrically to both sides of the chart //


CROSS IN THE CENTER of the chart and PROMINENT HORIZONTAL LINES for the adjustment of the cameras to avoid rotation errors //


CONCENTRIC RESOLUTION STRUCTURES withthree different frequencies and one siemensstar,allfour structures close to the center of the chart //


HYPERBOLIC STRUCTURES in the four corners of the chart to check resolution and reproduction scale //


3nh / Sineimage Resolution Test Chart 3D Alignment Chart To Align / Adjust Cameras For A 3D Shooting 9
