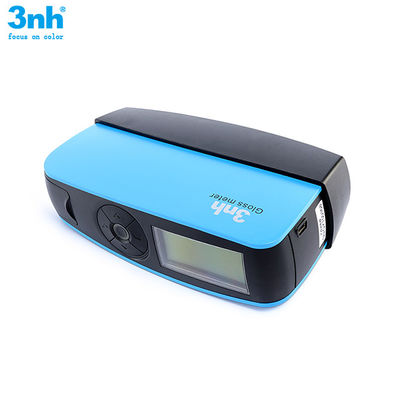

1000gu Digital Gloss Meter 60° Measuring Angle Silk YG60 AA Battery USB Data Port
Product Details
| Measuring Angle: | 60° | Measuring Area(mm): | 60°:9x15mm |
|---|---|---|---|
| Measuring Range(GU): | 60°:0~1000 | Division Value: | 0.1GU |
| Tolerance: | ±0.2, ±0.2% | Data Port: | USB |
| Highlight |
paint gloss meter,portable gloss meter |
||
Product Description
Cheap 1000gu digital gloss meter in paper with 60 degree Silk YG60 AA battery
Technical Specification
| Parameters | Single-angle Gloss Meter YG60 |
| Measuring Angle |
60° Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 60°: 9x15mm |
| Measuring Range | 60°:0~1000GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability | 0-100GU 100-1000GU ± 0.2GU ± 0.2%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±0.2, ±0.2% |
| Measuring Time | 0.1s |
| Display Size | TFT 2.3" |
| Data Port | USB |
| Language | Chinese, English |
| Battery | 1pcs of No.5 dry cell battery more than 10000 times (within 8 hours) |
| Dimension | 160*52*84mm |
| Weight | 350g |
| Measuring Mode&Storage |
Basic Mode and Continuous Mode: 15000 Statistical Mode: 10000 QA Mode: 10000 |
| PC Software | GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate |
| Optional Accessories | Mini Printer |
Brief Introduction
1. YG60 one angle smart glossmeter, whose complete proprietary intellectual property rights are fully owned by Silk, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.
2. YG60 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can be manually input.
3. YG60 has four measuring modes.
Basic Mode, the simplest sample measurement mode;
Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the setting.
QA Mode, for quality control at production line.
4. Now YG60 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.
Frequently Asked Questions
1. Which models are the equivalent models to YG60 Gloss Meter?
Answer: Our YG60 gloss meter is equivalent to BYK4561 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
