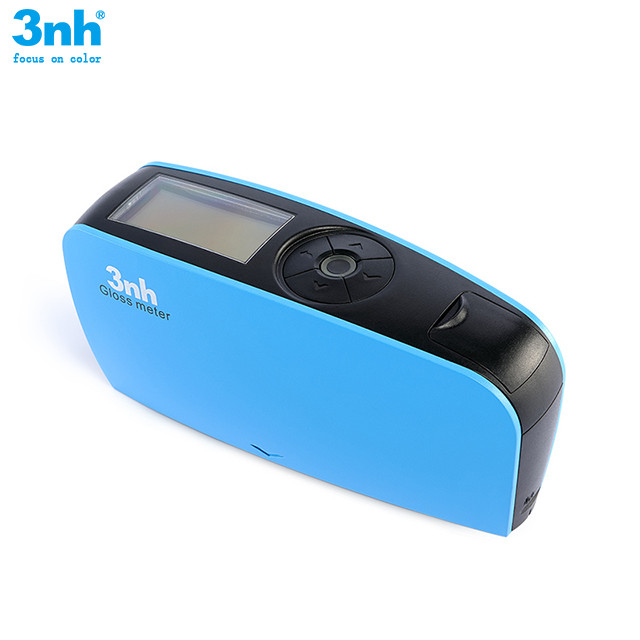

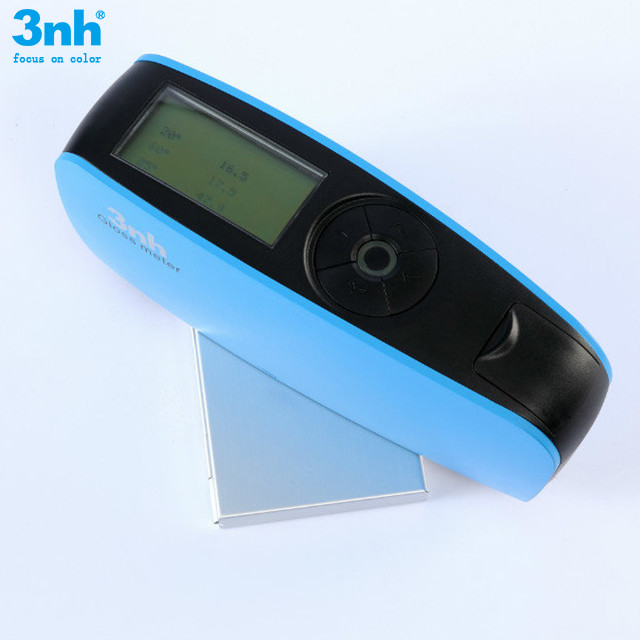

Portable Paint Gloss Meter 1000gu 60 Degree Measuring Angle YG60 From 3nh

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHs
Model Number YG60
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 30*20*10cm, 1kg, with a carrying bag
Delivery Time 1-5 Days
Payment Terms T/T
Supply Ability 1000 Units per Month
Product Details
Measuring Angle 60° Measuring Area(mm) 60°:9x15mm
Measuring Range(GU) 60°:0~1000 Division Value 0.1GU
Tolerance ±0.2, ±0.2% Data Port USB
High Light

paint gloss meter

,

60 degree gloss meter

Leave a Message
Product Description

Cheap portable glossy meter 1000gu glossmeter with 60 degree single angle YG60 from 3nh



Technical Specification



Parameters Single-angle Gloss Meter YG60
Measuring Angle

60°

Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Measuring Area 60°: 9x15mm
Measuring Range 60°:0~1000GU
Division Value 0.1GU
Measurement Range Repeatability 0-100GU    100-1000GU
± 0.2GU      ± 0.2%GU
Measurement Standard Conform to the Working Requirements for JJG696 First Class Glossmeter
Chromaticity Response Corresponding with CIE 1931(2°) under CIE C Light Source
Tolerance ±0.2, ±0.2%
Measuring Time 0.1s
Display Size TFT 2.3"
Data Port USB
Language Chinese, English
Battery 1pcs of No.5 dry cell battery more than 10000 times (within 8 hours)
Dimension 160*52*84mm
Weight 350g
Measuring Mode&Storage

Basic Mode and Continuous Mode: 15000

Statistical Mode: 10000

QA Mode: 10000

PC Software GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions
Operation Temperature 0~40℃ (32~104℉)
Storage Temperature -20~50℃ (-4~122℉)
Humidity <85% Relative Humidity, No Condensation
Standard Accessories Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional Accessories Mini Printer



Portable Paint Gloss Meter 1000gu 60 Degree Measuring Angle YG60 From 3nh 0



Brief Introduction



1. YG60 one angle smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.

2. YG60 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can be manually input.

3. YG60 has four measuring modes.

Basic Mode, the simplest sample measurement mode;

Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the setting.

QA Mode, for quality control at production line.

4. Now YG60 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.



Cheap portable glossy meter 1000gu glossmeter with 60 degree single angle YG60 from 3nh



Frequently Asked Questions

1. Which models are the equivalent models to YG60 Gloss Meter?

Answer: Our YG60 gloss meter is equivalent to BYK4561 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
