3nh Tri Gloss Meter YG268 Precise Glossmeter Measuring Glossiness Unit Of Paint / Coating
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Measuring Angle||20° 60° 85°||Measuring Area(mm)||20°: 9×10, 60°:9x15, 85°: 5×38|
|Measuring Range(GU)||0~2000||Division Value||0.1GU|
|Tolerance||±0.2, ±0.2%||Data Port||USB & Bluetooth|
paint gloss meter,
60 degree gloss meter

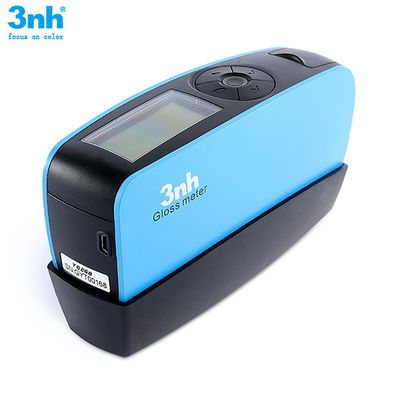

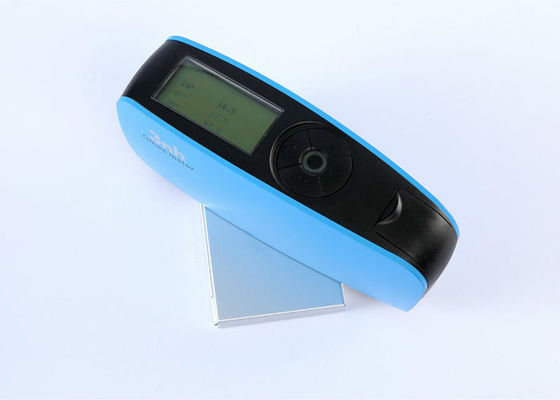

3nh Tri-gloss Meter YG268 Precise Gloss Meter for Measuring Glossiness Unit of Paint and Coating
|Parameters||Three Angle Gloss Meter YG268|
20° & 60° & 85°
Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
|Measuring Area||20°: 9×10mm, 60°: 9x15mm, 85°: 5×38mm|
|Measuring Range||20°: 0~2000GU, 60°:0~1000GU, 85°: 0~160GU|
|Measurement Range Repeatability||0-100GU 100-2000GU
± 0.2GU ± 0.2%GU
|Measurement Standard||Conform to the Working Requirements for JJG696 First Class Glossmeter|
|Chromaticity Response||Corresponding with CIE 1931(2°) under CIE C Light Source|
|Display Size||TFT 2.3"|
|Battery||1pcs of No.5 dry cell battery more than 10000 times (within 8 hours)|
Basic Mode and Continuous Mode: 15000
Statistical Mode: 10000
QA Mode: 10000
|PC Software||GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions|
|Operation Temperature||0~40℃ (32~104℉)|
|Storage Temperature||-20~50℃ (-4~122℉)|
|Humidity||<85% Relative Humidity, No Condensation|
|Standard Accessories||Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate|
|Optional Accessories||Mini Printer|
1. YG268 three angle smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.
2. YG268 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can be manually input.
3. YG268 has four measuring modes.
Basic Mode, the simplest sample measurement mode;
Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the setting.
QA Mode, for quality control at production line.
4. Now YG268 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.
Frequently Asked Questions
1. Which models are the equivalent models to YG268 Gloss Meter?
Answer: Our YG268 gloss meter is equivalent to BYK4563 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
