Portable 3NH Colour Measurement Spectrophotometer 8mm Aperture SCE SCI Modes YS3010
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Optical Geometry||D/8°||SCE/SCI||SCE & SCI|
|Other Colorimetric Index||WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity,||Repeatibility||ΔE*≤0.03|
|Color Space||CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB||Measuring Aperture||Φ8mm|
colour measurement equipment,
integrating sphere spectrophotometer

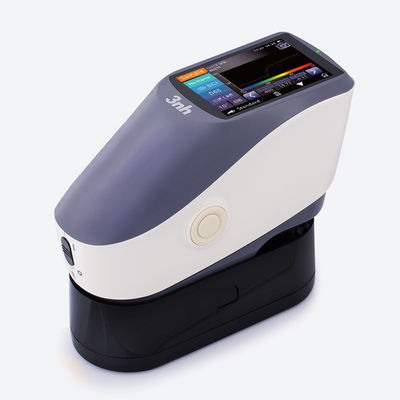

Portable 3NH color detector spectrophotometer with 8mm aperture SCE SCI modes YS3010
Colour Measuring Spectrophotometer YS3010 with SCE & SCI is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. Metal Coating Painting Colour Measuring Spectrophotometer YS3010 with SCE & SCInot only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
SPECIFICATIONS FOR YS3060 & YS3020 & YS3010 Spectrophotometer
|Optical Geometry||Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)|
|Integrating Sphere Size||48mm|
|Light Source||Combined LED Light, UV Light||Combined LED Light|
|Spectrophotometric Mode||Concave Grating|
|Sensor||256 Image Element Double Array CMOS Image Sensor|
|Measured Reflectance Range||10nm|
|Measured Reflectance Range||0-200%|
|Measuring Aperture||MAV : Φ8mm/Φ10mm
SAV : Φ4mm/Φ5mm
|Customized Aperture: 8mm/4mm/1×3mm||Single Aperture: MAV : Φ8mm/Φ10mm|
|Color Space||CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB|
|Color Difference Formula||ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)|
|Other Colorimetric Index||WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
|Illuminant||D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12||D65, A, C, D50, D55, D75, F2, F7, F11||D65, A, C, D50|
|Display Data||Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset|
|Repeatability||MAV/SCI: ΔE*≤0.03||MAV/SCI: ΔE*≤0.05||MAV/SCI: ΔE*≤0.06|
|Inter-instrument Error||MAV/SCI: ΔE*≤0.15||MAV/SCI: ΔE*≤0.2||MAV/SCI: ΔE*≤0.4|
|Measurement Mode||Single Measurement, Average Measurement|
|Locating Method||Camera View Finder Locating|
|Battery||Li-ion battery. 5000 measurements within 8 hours|
|Illuminant Life Span||5 years, more than 3 million times measurements|
|Display||3.5-inch TFT color LCD, Capacitive Touch Screen|
|Data Port||USB, Bluetooth 4.0||USB|
|Data Storage||Standard 2000 Pcs, Sample 20000 Pcs|
|Operating Environment||0~40℃, 0~85%RH (no condensing), Altitude < 2000m|
|Storage Environment||-20~50℃, 0~85%RH (no condensing)|
|Standard Accessory||Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover|
|Optional Accessory||Micro Printer, Powder Test Box,Universasl test components|
|Notes: The specifications are subject to change without notice.|
1. Spectrophotometer YS3010 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
2. YS3010 features the precise measurement and the complete functions.
3. It has one 8mm measuring apertures which is the aperture widest applied.
4. The PC terminal software SQCX provides powerful data management functions.
5. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
6. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
7. YS3010 can be connected to a computer via USB cable to do data management.
8. A built-in camera to help to aim the targets to be measured.
YS3010 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3060 is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color of liquids like vinegar or wine, powders like flour and paste like ketchup.
Frequently Asked Questions
1. Which models are the equivalent models to YS3010?
Answer: KONICA MINOLTA CM-2300d and X-rite Ci64 are the equivalent models to 3nh YS3060.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
|Standard accessory||Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover|
|Optional accessory||Micro Printer, Powder Test Box,Universasl test components|
