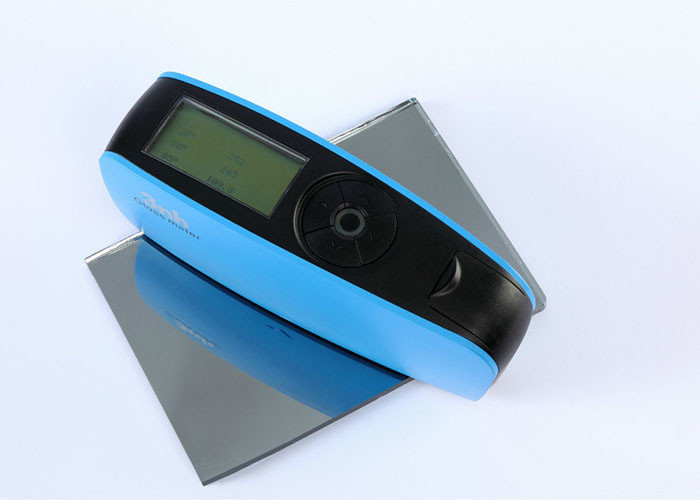

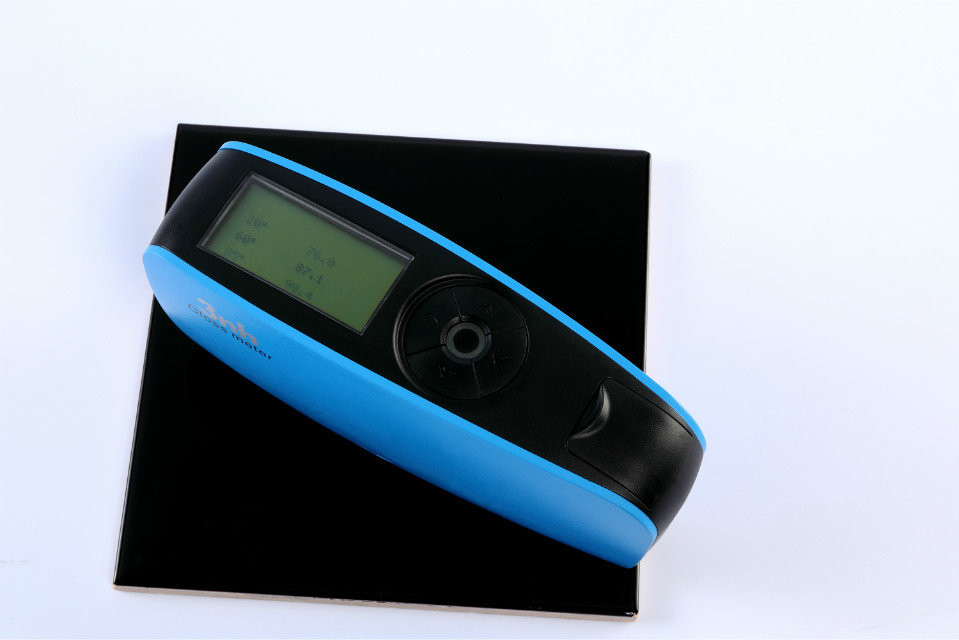

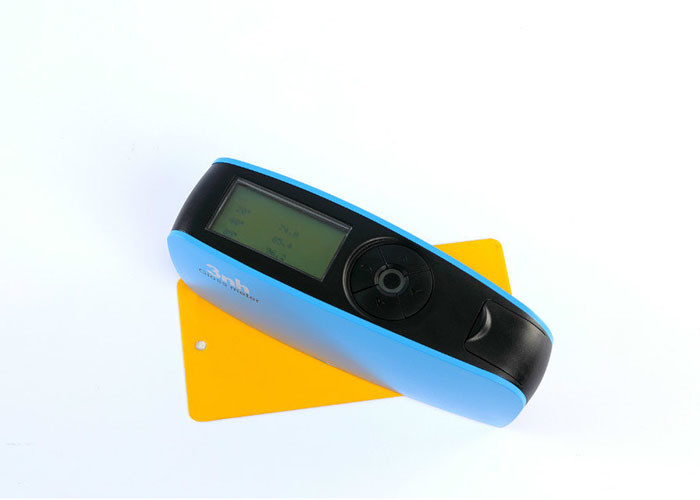

Granite Lacquer Digital Gloss Meter 0.5s Measuring Time With 2000gu 3nh YG268

  • Granite Lacquer Digital Gloss Meter 0.5s Measuring Time With 2000gu 3nh YG268
  • Granite Lacquer Digital Gloss Meter 0.5s Measuring Time With 2000gu 3nh YG268
  • Granite Lacquer Digital Gloss Meter 0.5s Measuring Time With 2000gu 3nh YG268
Place of Origin Shenzhen,China
Brand Name 3nh
Certification CE,RoHs,ISO,ASTM etc.
Model Number YG268
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time 2 work days
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model YG268 Measuring Angle 20 60 85
Division Value 0.1GU Measuring Range 0-2000GU
Measuring Time 0.5s Interface USB & Bluetooth 2.1 Version
Software GQC6 Storage Temperature Range 0-40℃
Optical Accessories Miniature Printer Wholesale Yes
High Light

paint gloss meter

,

60 degree gloss meter
Leave a Message
Product Description

Granite lacquer digital gloss meter with 2000gu 3nh YG268 wholesale glossmeter



Brief Introduction:



YG series gloss meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.



YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.



Specifications:



YG268 Tri-angle Economic Gloss Meter
Model: YG268
Measuring Angle 20° 60° 85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 20° : 9x10; 60° :9x15;  85°: 5*38
Measuring Range 20° : 0-2000GU; 60° :0-1000GU; 85°: 0-160GU
Division Value 0.1GU
Measurement Range Repeatability Reproducibility 0-100GU 100-2000GU
± 0.2GU   ± 0.2%GU

Measurement Standard Conform with JJG696 first class glossmeter working requirement
Auto Power-off Time  Within 30-120s
Long-time Calibration  Automatically finished calibration
Measuring Time 0.5s
Dimension L*W*H : 160mm*52mm*84mm
Weight 300g
Language Chinese/English
Power Supply 1pc dry-cell battery or use USB charge
Display 2.3 inch black and white screen
Interface USB and bluetooth 2.1 version
Storage 35000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.





GQC6 Software Introduction:



GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.



Application:



YG268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.





Features:



  • 20° 60° 85° angle for semi gloss;
  • with auto-calibration function;
  • elegant design combined with aesthetics and ergonomics;
  • large storage to save over 35000 data;
  • Meet the first grade requirements of JJG696;
  • Connect to PC, more extend functions
  • One button for all angles measurement at the same location
  • Comply with international standards
  • Stable performance, easy to read data.
  • can realize auto power on & off automatically within 30s-120s
