Grating Benchtop Color Difference Meter 3nh YS6060 For National Laboratory Liquid Color Measurement
|Optical Geometry||D/8 & D/0||Wavelength||360-780nm|
|Repeatibility||DeltaE ≤ 0.03||Inter-instrument Error||DeltaE ≤ 0.15|
|Aperture||25.4mm & 15mm & 8mm & 4mm||Sphere Size||Φ154mm|
colour measurement equipment,
multi angle spectrophotometer

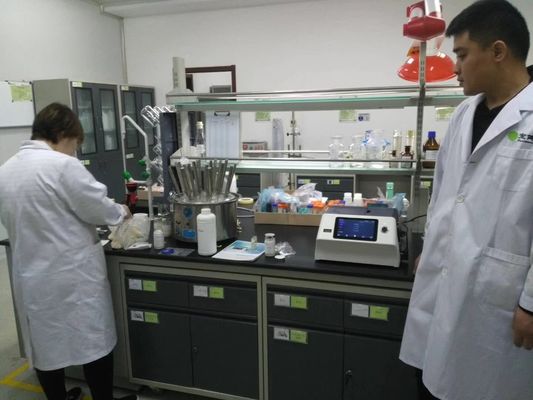

3nh YS6060 grating benchtop spectrophotometer for National Laboratory Liquid Color Measurement
1, High configuration of hardware: 7 inches TFT Color Capacitive Screen-touch Display; Bluetooth 2.1; Concave Grating.
2, Double Array 256 Image Element CMOS Sensor; Long life-span stable LED, UV LED and xenon lamp.
3, Measure sample the reflective and transmissive spectrum, accurate Lab value, can be used to calculate color formula and do precise color transmission.
4, Auto identify measuring aperture. Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures.
5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement precision.
6, Wavelength range 360nm – 780nm. Built-in 400nm cut off/420nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement.
7, Independent light source detector, continuously monitor the condition of light source to ensure the light source reliable.
8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ needs.
9, Multiple accessories, sample holders, fixation clamp, suitable to more working condition.
10, Big capacity data storage, 40000 pieces of data can be stored.
11, Built-in camera locating.
12, More powerful extended functions at the PC terminal software.
YS6060 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.
Reflectance: d/8 (SCI&SCE; Include UV/Exclude UV)
Transmittance: d/0 (SCI&SCE; Include UV/Exclude UV)
Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
|Integrating Sphere Size||Φ 154mm|
|Sensor||256 Image Element Double Array CMOS Image Sensor|
|Light Source Device||360nm-780nm Combined LED Lamp, 400nm cut-off, 420nm cut-off, UV Lamp|
|Illuminants||D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12|
|Spectrophotometric Mode||Concave Grating|
|Observer Angle||2° & 10°|
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Φ25.4mm/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Reflective: Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
|Color Space||CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy|
|Color Difference Formula||ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99|
|Displayed Data||Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset|
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Gardner Index, Pt-Co Index, 555 Index,
|PC Terminal Software||SQCX|
|Data Storage Capacity||
Standard: 5000 Pcs; Sample: 40000 Pcs.
(One PCS can include both SCI and SCE)
|Data Port||USB & Bluetooth|
|Locating Method||Camera Locating|
|Measurement Mode||Single Measurement & Average Measurement|
|Screen||7" TFT Capacitive Screen-touch Display|
|Light Source Device Life||5 years, more than 3 million times measurements.|
|Power Supply||DC 24V, 2A Power Adapter|
|Language||English & Chinese|
|Working Environment||Temperature: 0~40℃; Humidity: 0~85% (No Condensation)|
|Storage Environment||Temperature: -20~50℃; Humidity: 0~85% (No Condensation)|
|Standard Accessory||White and Black Calibration Board, Checking Green Board, Sample Holder, Φ4mm, Φ8mm, Φ15mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software|
|Optional Accessory||Micro-printer, Transmissive Test Clamp Component|
Frequently Asked Questions
1. Which devices is the YS6060 equivalent to?
Answer: Our YS6060 benchtop spectrophotometer is equivalent to KONICA MINOLTA CM-3700A, CM-3600A and X-rite Ci7800 and Ci7600.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
Shenzhen 3nh Technology Co., Ltd.is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. After years of intensive research, 3nh launched NH series colorimeter with high precision and high stability, high definition ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
3NH ALL COLORIMETER & SPECTROPHOTOMETER MODELS
|Model||Brand||Optical Structure||Measureing Aperture||Original|
|NH310 colorimeter||3nh||8/d||8mm & 4mm||Made In China|
|NH300 colorimeter||3nh||8/d||8mm||Made In China|
|NR200 colorimeter||3nh||8/d||8mm||Made In China|
|NR60CP colorimeter||3nh||8/d||8mm & 4mm||Made In China|
|NR110 colorimeter||3nh||8/d||4mm||Made In China|
|NR145 colorimeter||3nh||45/0||8mm||Made In China|
|NR20XE colorimeter||3nh||45/0||20mm||Made In China|
|NS810 spectrophotometer||3nh||d/8||8mm||Made In China|
|NS800 spectrophotometer||3nh||45/0||8mm||Made In China|
|YS3010 spectrophotometer||3nh||d/8||8mm||Made In China|
|YS3020 spectrophotometer||3nh||d/8||8mm or 4mm or 1*3mm||Made In China|
|YS3060 spectrophotometer||3nh||d/8||8mm & 4mm||Made In China|
|YS6010 spectrophotometer||3nh||d/8 & d/0||Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;||Made In China|
|YS6060 spectrophotometer||3nh||d/8 & d/0||Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;||Made In China|
