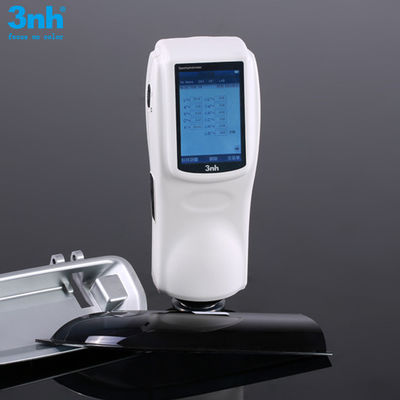

45/0 Digital Colour Measurement Equipment 3nh Ns800 8mm Aperture For Plastic Cell
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Optical Geometry||45°/0||Sphere Size||Φ58mm|
|Wavelength Range||400-700nm||Measuring Aperture||Φ8mm|
integrating sphere spectrophotometer,
multi angle spectrophotometer
3nh ns800 45/0 digital spectrophotometer for color matching with 8mm aperture for plastic cell
NS800 spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.
In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.
3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS800 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.
1. Aesthetic design perfectly combined with ergonomics structure.
2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.
3. 3.5 inch large capacitive touch screen.
4. Two standard observer perspectives, multiple light sources modes, a variety of color systems.
5. The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
6. Large capacity storage, can save more than 10000 data.
7. PC software with powerful extension functions.
8. High hardware configuration with a number of innovative technologies.
9. Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
10. 15° oblique angle screen, more in line with the human eye observation.
NS800 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
NS800 Spectrophotometer Specifications
|Illumination/observation system||45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15,GB/T 3978|
|Integrating sphere Size||Φ58mm|
|Light Source||combined LED sources|
|Sensor||Silicon photodiode array|
|Color Space||CIE LAB,XYZ,Yxy,LCh,CIE LUV|
|Color difference Formula||dE*ab,dE*uv,dE*94,dE*cmc(2:1),dE*cmc(1:1),dE*00|
|Other Chromaticity Data||WI(ASTM E313,CIE/ISO, AATCC, Hunter), YI(ASTM D1925,ASTM 313), TI(ASTM E313,CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness|
|Display Data||Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation|
|Repeatability||Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)|
|Colorimetric Value||Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)|
|Inter Instrument Agreement||Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)|
|Battery||Li-ion battery. 5000 times within 8 hours|
|Lamp Life||5 years, more than 1.6 million measurements|
|Display Screen||TFT 3.5inch, Capacitive Touch Screen|
|Data Memory||1000 Standards, 10000 Samples|
|Standard Accessory||Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap|
|Optional Accessory||Micro Printer, Universal Test Compon|
|Others||Provide complete spectrum reflectance curve, Input L, a, b value manually|
|Notes||The specifications are subject to change without notice|
Frequently Asked Questions
1. Which models are the equivalent models to NS800?
Answer: BYK 6801 Spectro is the equivalent models to 3nh NS800 (About color measurement function).
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
