Benchtop 3nh Spectrophotometer Liquid With Reflectance / Tranmission Curve YS6060
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Intergrating Sphere Size||154mm||Wavelength||360nm-780nm|
|Specular Component||SCI&SCE||Reflectance Range||0-200%|
|Optional Accessories||Printer, Transmissive Test Clamp Component||Language||Simplified Chinese, English, Traditional Chinese|
hunter lab spectrophotometer,
color measurement instruments
Liquid Benchtop Spectrophotometer with Reflectance and Tranmission Curve YS6060 for Tea Wine Coffee Soap Color Test
As we know our 3nh models YS series spectrophotometer, NS series spectrophotometer and NH series colorimeter all can measure liquid color difference, but is it able to measure liquid by using YS6060 benchtop spectrophotometer?

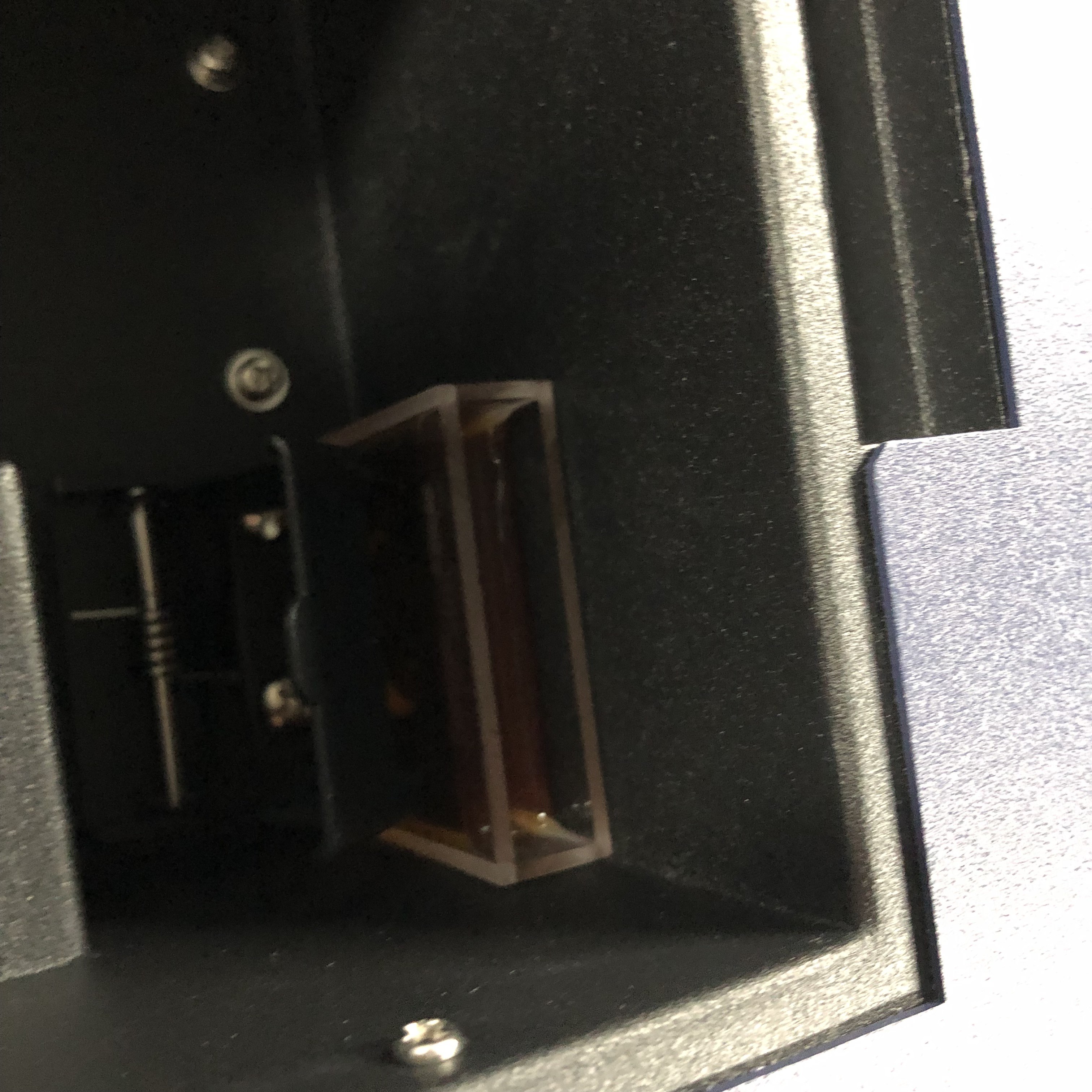

The answer is yes. Except this, benchtop spectrophotometer also can do what the regular portable spectrophotometer can't do like transparent liquid. If the liquid is transparent, the regular portable spectrophotometer will leakage the light and make the test result is not accuracy, but benchtop one has the transmission function. It can measure transmission value in the transmission bin, it is sealed and no light there. It is the best way to measure liquid no matter if it is transparent, or translucent or pasty.
1. Support full illuminants.
2. d/8 optical geometry for reflectance, d/0 for transmittance; both SCI&SCE, UV I+E
3. φ25.4mm/15mm/8mm/4mm multiple measuring apertuers as automative as flexible.
4. UV measurement is availble ,given wavelength range 360nm-780nm, built-in 400nm cut off/420nm cut off 460nm cut off(only xenon lamp edition)
5. Multiple accessories,sample holders,fixation frame are offered as standard to adapt to different working conditions and testing circumstances.
YS6060 benchtop spectrophotometer is the precise color analysis and transmission in labs,applied in different industries,such as plastics, electronics,paint and ink, printing,garmets,leather,paper,auto,medical,cosmetics,food,science institute,labs.
Reflectance: d/8 (SCI&SCE; Include UV/Exclude UV)
Transmittance: d/0 (SCI&SCE; Include UV/Exclude UV)
Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
|Integrating Sphere Size||Φ 154mm|
|Sensor||256 Image Element Double Array CMOS Image Sensor|
|Light Source Device||360nm-780nm Combined LED Lamp, 400nm cut-off, 420nm cut-off, UV Lamp|
|Illuminants||D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12|
|Spectrophotometric Mode||Concave Grating|
|Observer Angle||2° & 10°|
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Φ25.4mm/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Reflective: Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
|Color Space||CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy|
|Color Difference Formula||ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99|
|Displayed Data||Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset|
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Gardner Index, Pt-Co Index, 555 Index,
|PC Terminal Software||SQCX|
|Data Storage Capacity||
Standard: 5000 Pcs; Sample: 40000 Pcs.
(One PCS can include both SCI and SCE)
|Data Port||USB & Bluetooth|
|Locating Method||Camera Locating|
|Measurement Mode||Single Measurement & Average Measurement|
|Screen||7" TFT Capacitive Screen-touch Display|
|Light Source Device Life||5 years, more than 3 million times measurements.|
|Power Supply||DC 24V, 2A Power Adapter|
|Language||English & Chinese|
|Working Environment||Temperature: 0~40℃; Humidity: 0~85% (No Condensation)|
|Storage Environment||Temperature: -20~50℃; Humidity: 0~85% (No Condensation)|
|Standard Accessory||White and Black Calibration Board, Checking Green Board, Sample Holder, Φ4mm, Φ8mm, Φ15mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software|
|Optional Accessory||Micro-printer, Transmissive Test Clamp Component|
Related knowledge about spectrophotometer
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
