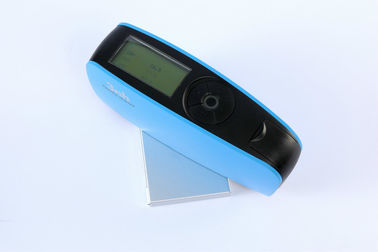

Single Angle 60 Degree Portable Gloss Meter YG60S Silk 0-200GU Measuring Range
Product Details
| Model: | YG60S | Measuring Angle: | 60 |
|---|---|---|---|
| Division Value: | 1GU | Measuring Range: | 0-200GU |
| Accurate: | Confirm With JJG696 First Grade | Weight: | 300g |
| Measuring Time: | 0.5s | Display: | 2.3 Inch Black And White Screen |
| Language: | Chinese And English | Auto Power-off Time: | 30s |
| Highlight |
paint gloss meter,60 degree gloss meter |
||
Product Description
Cheap single angle 60 degree glossmeter YG60S gloss meter with 200 gu Silk
Brief Introduction:
YG60s gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. YG series gloss meter is independently developed by Beijing Silk Technology Co.,Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
Features:
- 60° angle for semi gloss;
- with auto-calibration function;
- elegant design combined with aesthetics and ergonomics;
- Meet the first grade requirements of JJG696;
- Connect to PC, more extend functions
- Comply with international standards
- Stable performance, easy to read data.
- can realize auto power on & off automatically within 30s
Application:
YG60s gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
Specifications:
| YG60 Economic Gloss Meter | |
| Model: | YG60 |
| Measuring Angle | 60° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area (mm) | 9x15 |
| Measuring Range | 60° :0-200GU; |
| Division Value | 1GU |
| Measurement Range Repeatability Reproducibility | 0-100GU 100-200GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class glossmeter working requirement |
| Auto Power-off Time | Within 30s |
| Long-time Calibration | Automatically finished calibration |
| Measuring Time | 0.5s |
| Dimension | L*W*H : 160mm*52mm*84mm |
| Weight | 300g |
| Language | Chinese/English |
| Power Supply | 1pc dry-cell battery or use USB charge |
| Display | 2.3 inch black and white screen |
| Interface | USB |
| Storage | 0 |
| Software | / |
| Operation Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |
| Humidity | <85% relative humidity, no condensation |
| Standard Accessories | Power Adapter, USB cable, User Manual,Calibration Plate |
| Optional Accessories | / |
| Note | The specifications are subject to change without notice. |
